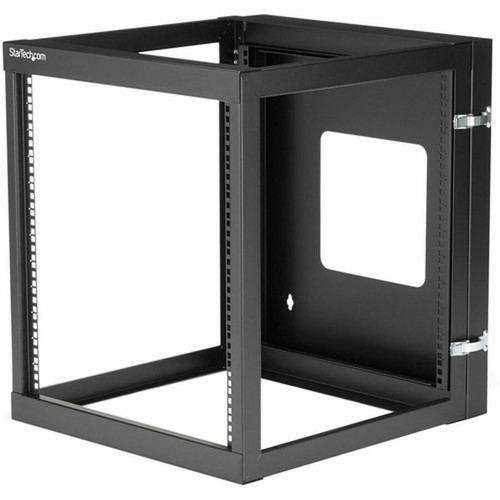

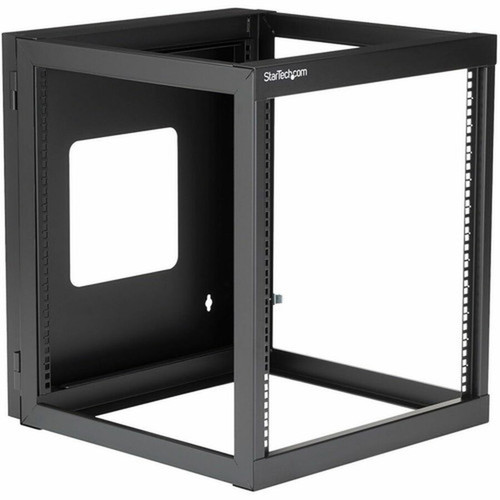

StarTech. com RK1219WALLOH 12U Hinged Wall-Mount Open Frame Server Rack - 4-Post - 19" Width - 140 lb Capacity - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built from cold-rolled steel (CRS), the RK1219WALLOH offers durable construction with dimensions of 25.50" height, 23.80" width, and 21.90" depth. The rack accommodates standard 19" wide equipment and features a 12U height, providing ample space for multiple devices while maintaining a compact footprint.
The rack arrives fully assembled with no additional assembly required, reducing setup time. It includes 48 #10-32 UNF panel screws and 48 cage nuts for secure mounting of rack equipment, ensuring compatibility with standard rack-mount hardware.
This section brings together practical product details such as Application/Usage, Form Factor, Color Family, Product Color, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The RK1219WALLOH combines practical design with robust construction to meet the demands of modern IT infrastructure. Its hinged mechanism simplifies rear-panel access, which is particularly valuable during cable rerouting or equipment upgrades.
Enhanced Airflow
The open frame design allows unrestricted air circulation around mounted equipment, helping to prevent overheating and extend the lifespan of sensitive network components.
- Reduces heat buildup
- Supports high-density deployments
TAA Compliance
This rack is TAA compliant, making it eligible for GSA Schedule purchases and suitable for government and educational procurement where trade agreement adherence is required.
- Meets federal procurement standards
- Broadens deployment eligibility
Deployment / Use Cases
The RK1219WALLOH is ideal for environments where wall space is available but floor space is limited, such as network closets, server rooms, or small office IT areas. Its 12U capacity accommodates a typical mix of switches, patch panels, and smaller servers.
Common deployments include organizing LAN switches and patch panels in telecommunications rooms, mounting lightweight servers in edge computing locations, or creating consolidated network points in retail or branch office settings. The wall-mount form factor keeps equipment secure and accessible while freeing up valuable floor space.
Network Closet Organization
Consolidate switches, patch panels, and power distribution units in a single, organized wall-mounted enclosure to simplify cable management and improve troubleshooting efficiency.
Edge Server Mounting
Securely mount lightweight servers or network appliances in remote locations where traditional rack cabinets are impractical, maintaining professional-grade equipment protection.
Physical Profile
The rack features a black finish that blends with most IT environments and is constructed from cold-rolled steel for strength and corrosion resistance. Its 21.90" depth provides sufficient clearance for deeper equipment while maintaining a relatively shallow wall profile. The weight of 38.90 lb makes it manageable for installation while the 140 lb load capacity ensures it can handle typical rack-mounted devices.
- Width
- 23.80" (604.52 mm)
- Depth
- 21.90" (556.26 mm)
- Height
- 25.50" (647.70 mm)
- Weight
- 140 lb (63502.93 g)
What's in the Box
The RK1219WALLOH includes all necessary components for immediate deployment.
Highlights
- 12U hinged wall-mount open frame server rack
- 4-post design for added stability and load distribution
- Hinged mechanism provides easy access to rear panels
- Maximum weight capacity of 140 lb (63502.93 g)
- Constructed from durable cold-rolled steel (CRS)
- Open frame design enhances airflow around equipment
- TAA compliant for GSA Schedule purchases
- Includes all necessary mounting screws and cage nuts
- Lifetime limited warranty for long-term reliability
- Fully assembled with no additional assembly required
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | RK1219WALLOH |
| Brand Name | StarTech.com |
| Product Name | 12U 22in Depth Hinged Open Frame Wall Mount Server Rack |
| Packaged Quantity | 1 Each |
| Product Type | Rack Frame |
| Technical Information | |
| Application/Usage | LAN Switch,Patch Panel,Server,Computer |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Cold-rolled Steel (CRS) |
| Maximum Weight Capacity | 140 lb (63502.93 g) |
| Height | 25.50" (647.70 mm) |
| Width | 23.80" (604.52 mm) |
| Depth | 21.90" (556.26 mm) |
| Rack Height | 12U |
| Rack Width | 19" (482.60 mm) |
| Weight (Approximate) | 38.90 lb (17644.74 g) |
| Miscellaneous | |
| Package Contents | 12U 22in Depth Hinged Open Frame Wall Mount Server Rack 48 x #10-32 UNF Panel Screws 48 x #10-32 UNF Cage Nuts 1 x Instruction Manual |
| Assembly Required | No |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum weight capacity of this rack?
The RK1219WALLOH supports a maximum weight capacity of 140 lb (63502.93 g). This capacity accommodates typical rack-mounted equipment such as LAN switches, patch panels, and lightweight servers while maintaining structural integrity and safety.
Does this rack require assembly?
No, the RK1219WALLOH arrives fully assembled with no additional assembly required. This reduces setup time and ensures proper construction without the need for tools or technical expertise during installation.
What equipment is compatible with this rack?
This rack is designed for standard 19" wide rack-mount equipment and is suitable for LAN switches, patch panels, servers, and other computer equipment. The 12U height provides space for multiple devices, while the included #10-32 UNF screws and cage nuts ensure compatibility with standard rack-mount hardware.
What are the environmental certifications for this product?
The RK1219WALLOH is environmentally friendly with EU RoHS certification and complies with Restriction of Hazardous Substances (RoHS) 2 and Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) standards. This ensures reduced environmental impact and adherence to international regulatory requirements.
What does TAA compliance mean for this rack?
TAA compliance indicates that the RK1219WALLOH meets the Trade Agreements Act requirements, making it eligible for GSA Schedule purchases and suitable for government, educational, and institutional procurement where adherence to trade agreements is mandatory for equipment sourcing.
What is included in the package?
The package includes the 12U 22in Depth Hinged Open Frame Wall Mount Server Rack, 48 #10-32 UNF panel screws, 48 #10-32 UNF cage nuts, and an instruction manual. These components provide everything needed for mounting standard rack equipment without requiring additional purchases.
