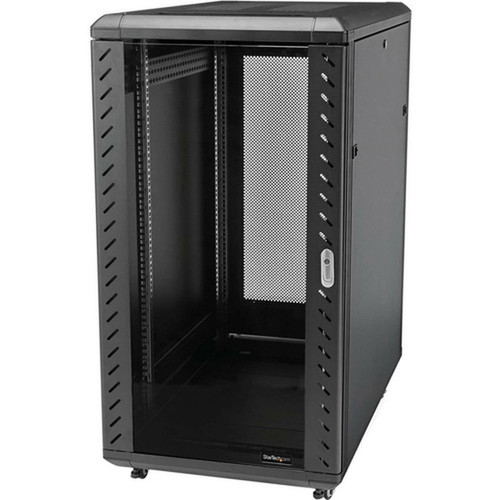

StarTech. com RK1836BKF 4-Post 18U Server Rack Cabinet - 19" Adjustable Depth - Locking Glass Door - Casters & Leveling Feet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This rack cabinet adheres to EIA/ECA-310-E compliance standards, ensuring compatibility with standard 19" rack-mount equipment. The 4 vertical rails provide multiple mounting positions, supporting equipment depth adjustments to optimize space and cable management.
The cabinet's steel construction with reinforced corners delivers a stationary weight capacity of 1764 lb (800 kg), suitable for heavy server stacks and network gear. Ventilation is facilitated through the vented top panel and mesh side panels, promoting consistent airflow to prevent overheating in enclosed installations.
This section brings together practical product details such as Application/Usage, Form Factor, Color Family, Product Color, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This server rack cabinet combines durability, flexibility, and user-friendly features for streamlined IT deployments. The flat-pack shipping design reduces damage risk and simplifies handling, while the comprehensive hardware kit enables straightforward assembly without additional purchases.
Enhanced Mobility & Stability
Integrated casters allow easy repositioning, while leveling feet provide stationary stability on uneven floors, adapting to dynamic IT environments.
- 2 casters with brakes
- 4 leveling feet
- Easy relocation capability
Security & Ventilation
Lockable front and rear doors secure equipment, and the vented top with mesh panels ensures passive cooling without compromising security.
- Key-lockable doors
- Steel mesh ventilation
- Removable side panels
Deployment / Use Cases

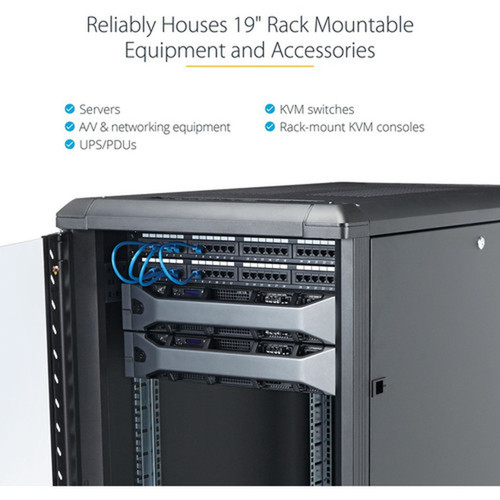

The RK1836BKF is versatile for various IT and AV applications, from enterprise data centers to small office network closets. Its 18U capacity and adjustable depth make it ideal for housing servers, LAN switches, patch panels, KVM switches, and audio-visual equipment in a consolidated, secure enclosure.
Common deployments include server rooms requiring organized cable management via the bottom panel slots, network operations centers needing mobile racks for maintenance, and AV installations where equipment security and ventilation are priorities. The half-height design fits under standard ceilings while providing substantial rack space.

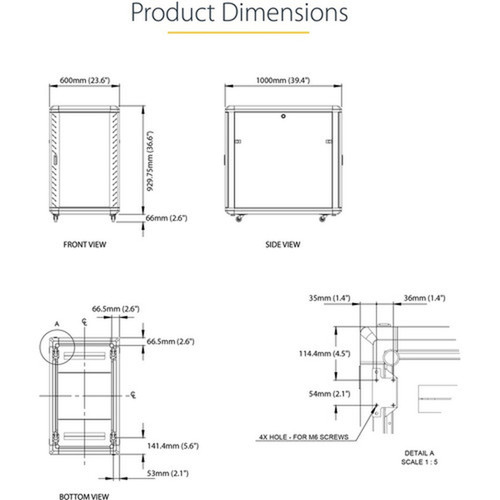

Physical Profile
With external dimensions of 39.37" height, 23.62" width, and 37.40" depth, this cabinet offers a compact footprint suitable for space-constrained environments. The black steel and glass construction provides a professional appearance, while the included plastic corner caps protect against damage during installation and use.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 39.37" (1000 mm), 23.62" (600 mm), 32" (812.80 mm), 1763.70 lb (800000 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 23.62" (600 mm)
- Depth
- 32" (812.80 mm)
- Height
- 39.37" (1000 mm)
- Weight
- 1763.70 lb (800000 g)
- Length
- 37.40" (950 mm)
What's in the Box
The cabinet ships with all necessary components for assembly and equipment mounting, including:
Highlights
- 4-post 18U server rack cabinet with adjustable depth from 5.7" to 33.0" for versatile equipment compatibility
- Lockable front and rear doors with glass panels and steel mesh ventilation for security and airflow
- Includes casters and leveling feet for mobility and stability on various floor surfaces
- 1764 lb (800 kg) static weight capacity supports heavy server and networking equipment
- Flat-pack shipping design reduces damage risk and simplifies handling and assembly
- EIA/ECA-310-E compliant for standard 19" rack-mount equipment compatibility
- Comprehensive hardware kit includes all necessary screws, cage nuts, washers, and tools
- Lifetime warranty with free 24/5 multilingual technical support from StarTech.com
- Black steel and glass construction with removable side panels for maintenance access
- Environmentally compliant with EU RoHS and REACH standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | RK1836BKF |
| Brand Name | StarTech.com |
| Product Name | 18U Server Rack Cabinet - Includes Casters and Leveling feet - 32 in. Deep |
| Packaged Quantity | 1 Each |
| Product Type | Rack Cabinet |
| Technical Information | |
| Application/Usage | Server,LAN Switch,Patch Panel,KVM Switch,A/V Equipment |
| Physical Characteristics | |
| Form Factor | Floor Standing |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel,Glass,Steel Mesh |
| Static/Stationary Weight Capacity | 1763.70 lb (800000 g) |
| Height | 39.37" (1000 mm) |
| Width | 23.62" (600 mm) |
| Length | 37.40" (950 mm) |
| Rack Height | 18U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 32" (812.80 mm) |
| Weight (Approximate) | 117 lb (53070.31 g) |
| Miscellaneous | |
| Package Contents | 2 x Side Panel and Frame 4 x Upper and Lower Beams 1 x Top Panel 2 x Bottom Panel with Cable Management Slot 1 x Bottom Panel (Solid) 1 x Front Door 1 x Rear Door 8 x Plastic Corner Caps 8 x M8-20 Hex Screw 8 x M8 Spring Washer 8 x M4-10 Flat Head Screw 4 x M6-12 Hex Screw 6 x M5-12 Screw 1 x M6 Hex Key 1 x M8 Hex Key 24 x M6-12 Philips Screw 24 x M6 Cage Nut 24 x M6 Plastic Cup Washer 2 x Caster 2 x Caster with Brake 16 x M6-10 Philips Bolt 4 x Leveling Feet 2 x Door Key 2 x Side Panel Key |
| Assembly Required | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the adjustable depth range of this server rack cabinet?
The RK1836BKF offers an adjustable mounting depth from 5.7 inches to 33.0 inches (14.4 cm to 83.8 cm). This flexibility allows you to accommodate various equipment sizes, from shallow network switches to deeper servers, optimizing space utilization within the cabinet.
Does this rack cabinet include wheels for mobility?
Yes, it includes two casters and two casters with brakes, providing easy mobility for repositioning. When stationary, the four leveling feet offer stability on uneven floors, making it suitable for environments where equipment access or relocation is required.
What is the weight capacity of this server rack?
The cabinet has a static/stationary weight capacity of 1763.70 lb (800 kg). This robust capacity supports heavy IT equipment such as servers, UPS units, and network switches, ensuring reliable performance in data center and server room deployments.
Is assembly required for this rack cabinet?
Yes, assembly is required. The cabinet ships flat-packed to reduce shipping damage and facilitate handling. All necessary hardware, including screws, cage nuts, washers, and hex keys, is included for straightforward assembly without additional purchases.
What security features does this cabinet offer?
It features lockable front and rear doors with keys included, securing your equipment from unauthorized access. The doors have glass panels for visibility and steel mesh sections for ventilation, balancing security with adequate airflow for temperature management.
What warranty and support come with this server rack?
StarTech.com provides a lifetime limited warranty for this product, backed by free 24/5 multilingual technical assistance. This support ensures reliable long-term use for IT professionals in enterprise, data center, and commercial installations.
