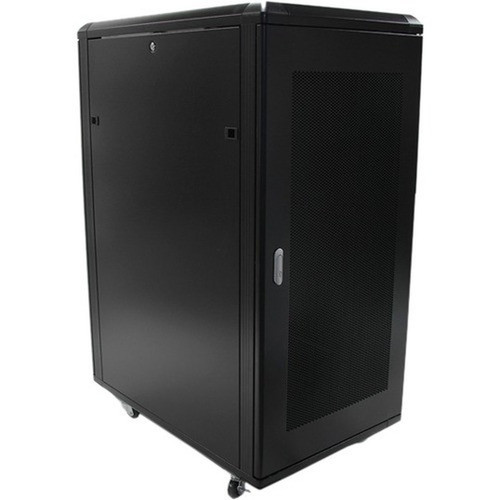

StarTech. com RK2536BKF 25U 19" Server Rack Cabinet - 4-Post Enclosed Floor Standing with Casters - Adjustable Rails - 1768 lb Capacity
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This enclosed server rack cabinet incorporates a 4-post vertical rail structure that provides solid support for rack-mounted equipment. The adjustable mounting rails offer flexibility for different server depths, making it suitable for a wide range of IT and AV components. The cabinet's dimensions measure 49.20" in height, 39.60" in width, and 23.60" in length, with an approximate weight of 150.40 lb when assembled.
Ventilation is optimized through a vented top panel and mesh side panels, promoting airflow to prevent equipment overheating. The rack ships flat-packed for easier transportation and assembly, reducing shipping damage risks. All necessary hardware for both rack assembly and equipment mounting is included, with comprehensive documentation for straightforward installation.
Key Product Advantages
The RK2536BKF server rack cabinet stands out with its combination of high weight capacity, adjustable mounting flexibility, and comprehensive hardware inclusion. The lifetime limited warranty and free lifetime technical support provide long-term reliability assurance for professional IT deployments.
Enhanced Mobility and Stability
Integrated casters with brakes and leveling feet enable easy repositioning while ensuring stationary stability when deployed. This combination supports both portable needs and fixed installation requirements.
- 2 casters and 2 brake casters included
- 4 leveling feet for stationary stability
- Floor-standing form factor
Secure Equipment Protection
Lockable front and rear doors with removable side panels offer physical security and accessibility. The enclosed design protects equipment from dust and unauthorized access while maintaining ventilation.
- Front and rear door keys included
- Removable side panels for maintenance
- Steel and glass construction for durability
Deployment / Use Cases
This 25U server rack cabinet is engineered for diverse IT environments, from enterprise data centers to smaller network closets and professional home labs. Its adjustable depth and 19" compatibility make it ideal for housing servers, network switches, patch panels, UPS systems, and AV equipment in unified rack deployments.
The enclosed design with lockable doors suits secure environments where equipment protection is paramount, such as financial institutions, healthcare facilities, and educational institutions. The casters and compact shipping format benefit organizations requiring occasional relocation or those with space constraints during initial setup. IT professionals appreciate the EIA/ECA-310-E compliance for standardized mounting and the included mounting hardware that streamlines equipment installation.
Physical Profile
The cabinet presents a professional black finish that blends with most IT environments. Its floor-standing form factor with casters provides a 49.20" height profile that fits under standard ceilings while offering 25U of rack space. The 39.60" width and 23.60" depth create a substantial footprint that accommodates deep equipment while remaining manageable in confined spaces.
Construction combines steel frames for structural integrity, mesh panels for ventilation, and glass doors for visibility. The weight distribution and included leveling feet ensure stability on various floor surfaces, while the brake casters lock the cabinet securely in position during operation.
- Width
- 39.60" (1005.84 mm)
- Height
- 49.20" (1249.68 mm)
- Weight
- 1768 lb (801951.31 g)
- Length
- 23.60" (599.44 mm)
What's in the Box
The RK2536BKF server rack cabinet ships with all components needed for complete assembly and equipment mounting:
Highlights
- 25U enclosed server rack cabinet with 4-post design and 19" compatibility

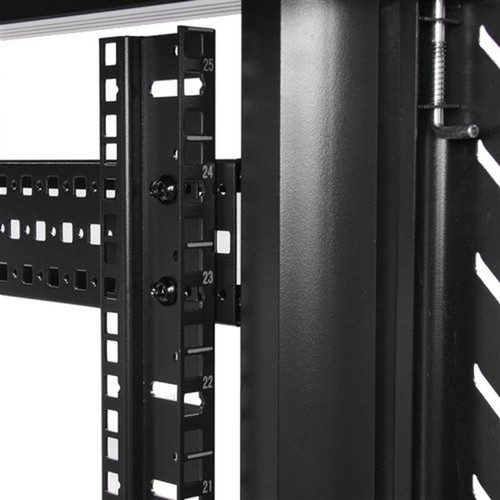

- Adjustable mounting rails support depths from 5.7" to 33.0" for versatile equipment
- 1768 lb static weight capacity handles heavy server and networking gear
- Includes casters with brakes and leveling feet for mobility and stability
- Lockable front and rear doors with removable side panels for security and access
- Vented top and mesh panels promote airflow to prevent equipment overheating
- Ships flat-packed to minimize shipping damage and facilitate assembly
- Comprehensive hardware kit includes all mounting screws, cage nuts, and tools
- EIA/ECA-310-E compliant for standardized rack mounting
- Lifetime limited warranty with free lifetime technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | RK2536BKF |
| Brand Name | StarTech.com |
| Product Name | 25U 36in Knock-Down Server Rack Cabinet with Casters |
| Packaged Quantity | 1 Each |
| Product Type | Rack Cabinet |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage | A/V Equipment,Server |
| Features | Vented Top,Adjustable Mounting Rails,Casters |
| Rack Post Quantity | 4 |
| Physical Characteristics | |
| Form Factor | Floor Standing |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel,Mesh,Glass |
| Static/Stationary Weight Capacity | 1768 lb (801951.31 g) |
| Height | 49.20" (1249.68 mm) |
| Width | 39.60" (1005.84 mm) |
| Length | 23.60" (599.44 mm) |
| Rack Height | 25U |
| Weight (Approximate) | 150.40 lb (68220.29 g) |
| Miscellaneous | |
| Package Contents | 2 - Side panel and frame 4 - Upper and lower beams 1 - Top panel 2 - Bottom panel with grommet 1 - Solid bottom panel 1 - Front door assembly 1 - Rear door assembly 8 - Plastic corner caps 8 - M8-25mm hex screws 8 - M8 lock washers 8 - M4-10 mm Phillips screws 2 - Door hinge pins 4 - M6-12 mm hex screws 6 - M5-10 mm self-tapping screws 1 - 5 M8 (13 mm) Allen Key 1 - M6 (10 mm) Allen Key 40 - M6-12 mm rack screws 40 - PVC cup washers 40 - M6 cage nuts 2 - Casters 2 - Brake casters 16 - M6-10 mm self-tapping screws 4 - Leveling feet 2 - Front and back door keys 2 - Side panel keys 1 - Instruction manual |
| Assembly Required | Yes |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the weight capacity of this server rack cabinet?
The RK2536BKF server rack cabinet has a static/stationary weight capacity of 1768 lb (801951.31 g). This substantial capacity supports heavy equipment loads including multiple servers, UPS systems, and network switches in professional deployments.
Does this rack include wheels for mobility?
Yes, the cabinet includes 2 casters and 2 brake casters for easy mobility. When stationary, the brake casters can be locked, and 4 leveling feet provide additional stability on uneven surfaces.
What mounting depth range does this rack support?
The adjustable mounting rails accommodate equipment depths from 5.7" to 33.0" (14.4 cm to 83.8 cm). This flexibility ensures compatibility with various server chassis, network switches, and other rack-mounted IT equipment.
Is assembly required for this server rack?
Yes, the RK2536BKF ships flat-packed and requires assembly. All necessary hardware, tools, and comprehensive instructions are included for straightforward assembly. The flat-packed design reduces shipping damage and makes transportation easier.
What security features does this rack cabinet offer?
The cabinet features lockable front and rear doors with included keys. The side panels are also removable and lockable, providing secure access control while allowing maintenance when needed. The enclosed design protects equipment from physical access and dust.
What warranty coverage comes with this server rack?
StarTech.com provides a lifetime limited warranty for the RK2536BKF server rack cabinet. This includes free lifetime 24/5 multi-lingual technical assistance, offering long-term support for IT professionals deploying this rack in their environments.
