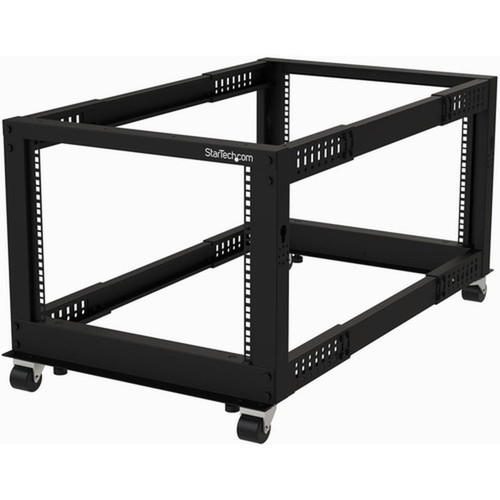

StarTech. com 4POSTRACK8U 8U Open Frame Server Rack - 4-Post Adjustable Depth 22-40" - 19" Width - 1200 lb Capacity - Casters & Leveling Feet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This rack meets EIA/ECA-310-E compliance standards, ensuring compatibility with standard 19" rackmount equipment. The adjustable depth mechanism allows precise alignment with various server depths, while the 4-post structure provides robust support for both front and rear mounting. The rack's dimensions measure 21" height, 23.60" width, and 44.40" length, with a shipping weight of 49.60 lb for manageable transport.

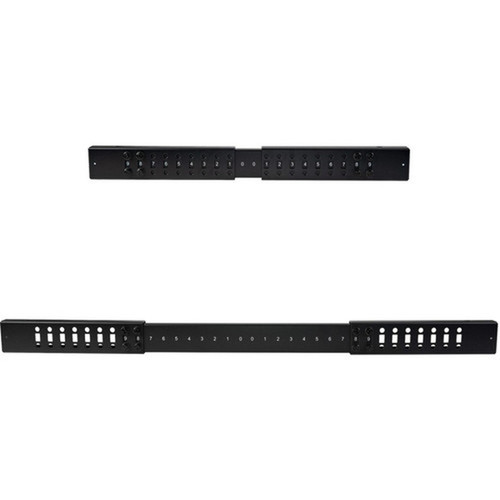

Three installation options offer deployment versatility: casters for mobile applications, leveling feet for stable floor placement, or base-plate mounting for permanent floor securing. The unit includes comprehensive hardware for assembly and equipment mounting, along with cable management hooks to maintain organized cabling. Clear unit (U) markings and depth adjustment indicators simplify equipment positioning and configuration.
Key Product Advantages
This rack combines professional-grade durability with practical features that streamline IT infrastructure deployment. The cold-rolled steel construction ensures long-term reliability in demanding environments, while the open frame design promotes optimal airflow to prevent equipment overheating. The inclusion of all necessary assembly tools and mounting hardware eliminates the need for additional purchases, saving time and resources during setup.
Complete Hardware Kit

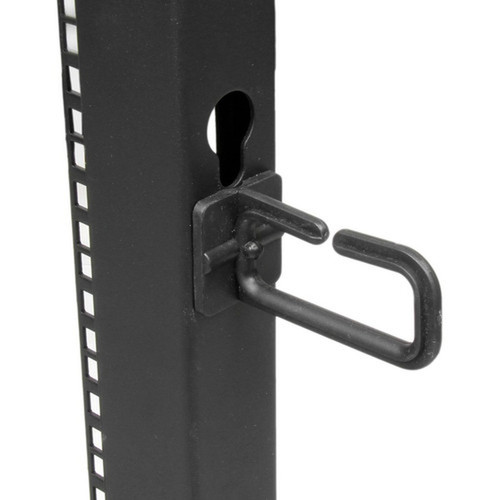

Includes cage nuts, screws, wrenches, screwdriver, and cable management hooks for full assembly and equipment mounting without extra parts.
- 24× M6 cage nuts
- 50× M8 hex screws
- 10mm & 13mm wrenches
- 4× cable management hooks
Flexible Installation
Choose between mobile casters, stationary leveling feet, or secured base-plate mounting to match your deployment requirements.
- Casters for mobility
- Leveling feet for stability
- Base-plate for permanent mounting
Deployment / Use Cases
The 4POSTRACK8U serves as an ideal solution for small to medium IT environments where space efficiency is critical. Its compact 8U height makes it perfect for utility closets, network rooms, or office corners where full-size racks are impractical. The adjustable depth accommodates everything from shallow network switches to deeper server chassis, providing versatility across mixed equipment deployments.
Common applications include housing server hardware for small business infrastructure, organizing network switches and patch panels in wiring closets, mounting AV equipment in conference rooms, or creating portable test labs for IT professionals. The mobile configuration with casters allows the rack to function as a rolling workstation for temporary setups or equipment servicing, while the stationary options provide permanent infrastructure support.
Physical Profile
The rack features a sleek black finish that blends professionally with IT environments. Its steel construction provides structural integrity while maintaining a relatively lightweight profile for easier positioning. The open sides and rear allow complete access to equipment ports and cables, facilitating maintenance and reconfiguration without disassembly. Grounding wires ensure proper electrical safety when installed with appropriate grounding systems.
- Width
- 23.60" (599.44 mm)
- Depth
- 40.80" (1036.32 mm)
- Height
- 21" (533.40 mm)
- Weight
- 661.39 lb (300000 g)
- Length
- 44.40" (1127.76 mm)
What's in the Box
This rack ships as a flat-pack kit with all components and tools required for complete assembly and equipment mounting.
Highlights
- 8U open frame server rack with 4-post design for secure equipment mounting
- Adjustable depth from 22" to 40" accommodates various server and network equipment
- 1200 lb stationary weight capacity supports heavy IT loads
- Includes casters for mobility and leveling feet for stationary stability
- Cold-rolled steel construction ensures durability and proper ventilation
- Complete hardware kit with cage nuts, screws, and assembly tools included
- EIA/ECA-310-E compliant for standard 19" rackmount compatibility
- Compact design ideal for server closets and space-constrained environments
- Cable management hooks help organize and route cables neatly
- Backed by 2-year warranty with lifetime technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 4POSTRACK8U |
| Brand Name | StarTech.com |
| Product Model | 4POSTRACK8U |
| Product Name | 8U Open Frame Rack - 4 Post - Adjustable Depth |
| Packaged Quantity | 1 Each |
| Product Type | Rack Frame |
| Technical Information | |
| Rack Type | Open Frame |
| Application/Usage | Server,KVM Switch,LAN Switch,Patch Panel,A/V Equipment |
| Features | Adjustable Mounting Rails,Leveling Feet,Cable Management,Casters |
| Physical Characteristics | |
| Form Factor | Floor Standing |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel,Cold Rolled Steel |
| Dynamic/Rolling Weight Capacity | 661.39 lb (300000 g) |
| Static/Stationary Weight Capacity | 1199.31 lb (544000 g) |
| Height | 21" (533.40 mm) |
| Width | 23.60" (599.44 mm) |
| Length | 44.40" (1127.76 mm) |
| Rack Height | 8U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 40.80" (1036.32 mm) |
| Weight (Approximate) | 49.60 lb (22500 g) |
| Miscellaneous | |
| Package Contents | 4 x Caster 18 x M6 Flange Nut 18 x M6 Flat Washer 18 x M6 Hex Screw 4 x Cable Management Hook 4 x Hook Mounting Screw 2 x Left Vertical Rail 2 x Right Vertical Rail 8 x Corner Section 4 x Center Section 2 x Base Bracket 2 x Top Bracket 50 x M8 Flat Washer 50 x M8 Hex Screw 1 x 10mm Wrench 1 x 13mm Wrench 1 x Philips Head Screwdriver 4 x Philips Head Screw 4 x Locking Washer 24 x M6 Screw 24 x M6 Plastic Washer 24 x M6 Cage Nut 4 x Leveling Feet 4 x Grounding Wire 1 x Manual |
| Assembly Required | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What equipment is compatible with this server rack?
The rack is compatible with standard 19" rackmount equipment including servers, KVM switches, LAN switches, patch panels, and AV equipment. The adjustable depth from 22" to 40" accommodates various chassis sizes, while the 8U height provides space for multiple devices. It meets EIA/ECA-310-E compliance standards for proper equipment mounting.
How much weight can this rack support?
The rack has a static/stationary weight capacity of 1199.31 lb (544 kg) when properly installed with leveling feet or base-plate mounting. When used with casters for mobility, the dynamic/rolling weight capacity is 661.39 lb (300 kg). These capacities ensure secure support for heavy server and network equipment in various deployment scenarios.
What installation options are included?
Three installation options are provided: casters for mobile applications, leveling feet for stable floor placement, and base-plate mounting for permanent floor securing. This flexibility allows you to choose the configuration that best matches your deployment needs, whether you require portability, temporary setup, or permanent infrastructure installation.
Is assembly required and what tools are included?
Yes, assembly is required. The rack ships as a flat-pack kit with all necessary tools included: a 10mm wrench, 13mm wrench, Philips head screwdriver, and comprehensive hardware. The package includes detailed assembly instructions, and an online video is available for visual guidance, making the assembly process straightforward for IT professionals.
What are the rack's physical dimensions?
The assembled rack measures 21" height, 23.60" width, and 44.40" length. The rack mounting area has a standard 19" width and adjustable depth up to 40.80". With only 18" height when fully assembled, it maintains a compact footprint suitable for space-constrained environments like server closets or small offices.
What warranty and support does this product include?
The rack is backed by a 2-year limited warranty from StarTech.com. Additionally, it includes free lifetime 24/5 multi-lingual technical assistance, providing professional support for installation, configuration, and troubleshooting. The product is environmentally compliant with EU RoHS and REACH standards for responsible manufacturing.
