StarTech. com CPANEL48 48-Port 2U Rackmount Cat6 Patch Panel - RJ45 - UTP - 110 Punch-Down - Steel
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built to ANSI/TIA-568-C.2 Cat6 specifications, the CPANEL48 ensures consistent signal quality with minimal crosstalk for stable data transmission. The gold-plated RJ45 contacts enhance signal integrity and resist corrosion, while the color-coded 110 punch-down blocks support both T568A and T568B wiring configurations for flexible deployment.

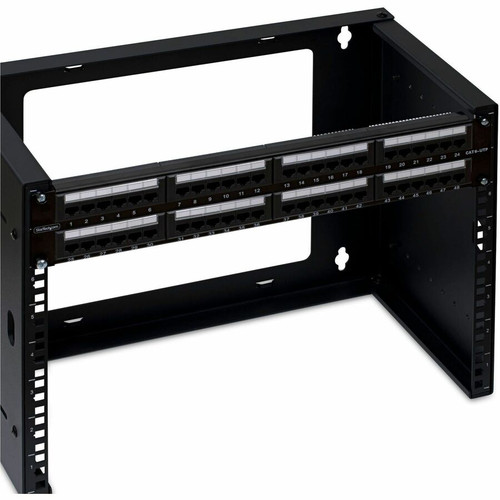

The panel's 2U form factor fits standard 19-inch network racks, with dimensions of 1.30" height, 3.50" width, and 19" length. Its steel construction with a black powder-coated finish offers robust protection in high-density installations.
This section brings together practical product details such as Media Type Supported, Twisted Pair Cable Standard, Total Number of Ports, Number of Network (RJ-45) Ports, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This patch panel combines high port density with durable construction to streamline network cabling management. Its design prioritizes reliability and ease of use, making it an ideal choice for IT professionals managing complex infrastructure.

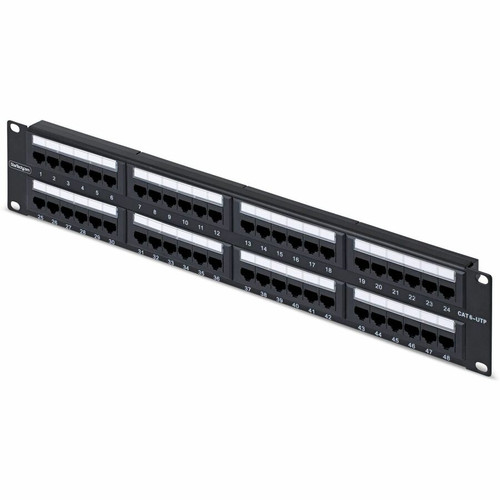

High-Density Connectivity
With 48 RJ45 ports, the panel maximizes rack space efficiency, supporting organized cabling for servers, switches, and other network equipment.
- Clearly labeled ports
- Numbered layout for easy identification
Durable Build Quality

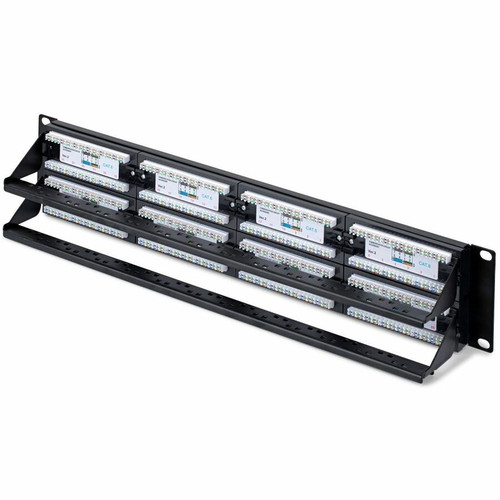

The steel housing and powder-coated finish ensure long-term durability, while the 110 punch-down terminals provide secure, vibration-resistant connections.
- Corrosion-resistant contacts
- Sturdy mounting hardware included
Deployment / Use Cases
The CPANEL48 is suited for centralizing and organizing network cabling in environments where reliability and scalability are critical. Its compatibility with standard racks and support for solid or stranded cables makes it versatile for various installation scenarios.
Common applications include data center server racks, enterprise network closets, and telecom rooms. It helps reduce cable clutter, simplify troubleshooting, and maintain a professional appearance in high-density IT setups.
Data Center Installations
Ideal for terminating backbone and horizontal cabling in server racks, ensuring efficient patch management and airflow optimization.
Enterprise Network Upgrades
Supports Cat6 cabling for Gigabit Ethernet networks, facilitating upgrades from older Cat5e infrastructure without replacing existing cables.
Physical Profile
The patch panel features a compact 2U rackmount design that conserves vertical space in standard 19-inch enclosures. Its black powder-coated steel finish blends seamlessly with professional rack equipment, while the included screws and nuts ensure secure mounting.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.30" (33.02 mm), 3.50" (88.90 mm), 2.16 lb (980.89 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.50" (88.90 mm)
- Height
- 1.30" (33.02 mm)
- Weight
- 2.16 lb (980.89 g)
- Length
- 19" (482.60 mm)
What's in the Box
The package includes all necessary components for immediate installation and use.
Highlights
- 48 RJ45 ports for high-density network connectivity
- Supports Cat6 and Cat5e twisted-pair cables
- 2U rackmount steel housing with black powder-coated finish

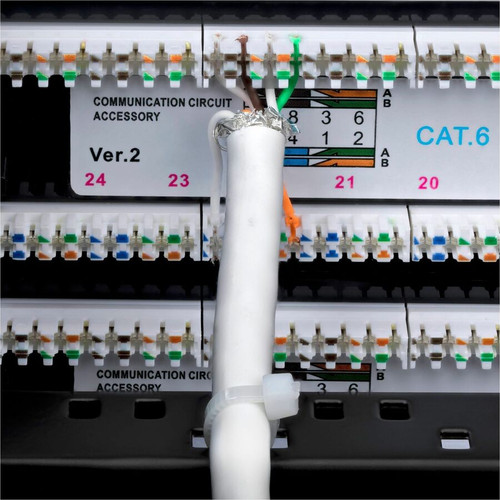

- 110 punch-down terminals with T568A/T568B wiring support
- Gold-plated contacts for enhanced signal integrity
- ANSI/TIA-568-C.2 Cat6 compliant for reliable performance
- Compatible with standard 19-inch network racks
- Includes mounting hardware and documentation
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | CPANEL48 |
| Brand Name | StarTech.com |
| Product Name | Network Patch Panel |
| Packaged Quantity | 1 |
| Product Type | Network Patch Panel |
| Technical Information | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6,Category 5e |
| Interfaces/Ports | |
| Total Number of Ports | 48 |
| Number of Network (RJ-45) Ports | 48 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black Powder Coat |
| Product Material | Steel |
| Form Factor | Rack-mountable,Cabinet Mountable |
| Compatible Rack Unit | 2U |
| Height | 1.30" (33.02 mm) |
| Width | 3.50" (88.90 mm) |
| Length | 19" (482.60 mm) |
| Weight (Approximate) | 2.16 lb (980.89 g) |
| Miscellaneous | |
| Package Contents | Network Patch Panel 1 x Product Documentation 1 x Set of Screws and Nuts |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What cable types are compatible with this patch panel?
The CPANEL48 supports both Category 6 and Category 5e twisted-pair cables, including solid and stranded variants. This compatibility allows for flexible deployment in existing or new network installations without requiring specialized cabling.
How many ports does this patch panel have?
This patch panel features 48 RJ45 ports, all configured for network connections. The high port density makes it suitable for organizing and terminating multiple Ethernet cables in rack-mounted environments like data centers or server rooms.
What rack size does this patch panel fit?
The panel is designed for standard 19-inch network racks and occupies 2U of vertical space. Its dimensions are 1.30" height, 3.50" width, and 19" length, ensuring compatibility with most commercial rack enclosures.
Does it support Gigabit Ethernet speeds?
Yes, the patch panel supports 1 Gigabit Ethernet as well as 10/100 Mbps Fast Ethernet speeds. It is engineered to meet ANSI/TIA-568-C.2 Cat6 specifications, ensuring reliable performance for high-speed data transmission with minimal signal degradation.
What wiring standards are supported for termination?
The color-coded 110 punch-down blocks support both T568A and T568B wiring configurations. This flexibility allows network technicians to use their preferred standard or match existing infrastructure, simplifying cable termination and maintenance.
What is included in the package?
The package includes the network patch panel, product documentation, and a set of screws and nuts for mounting. All necessary hardware is provided for immediate installation into standard 19-inch racks.
