StarTech. com N6PAT50BLKS Slim CAT6 Ethernet Cable - 50ft Black - Snagless RJ45 - UTP - LSZH - 28AWG Bare Copper - PoE++
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT6 patch cable supports data transfer rates up to 1 Gbit/s and is compliant with ANSI/TIA-568-C.2 standards for guaranteed performance. The cable utilizes four twisted pairs (eight conductors) of unshielded twisted pair (UTP) construction, minimizing near-end crosstalk (NEXT) and return loss for stable network connections.
Power over Ethernet (PoE) support extends to PoE++ specifications, complying with IEEE 802.3bt Type 4 for up to 90W power delivery. This makes the cable suitable for connecting PoE devices such as IP cameras, wireless access points, and VoIP phones without separate power cables.
This section brings together practical product details such as Cable Type, Cable Characteristic, Cable Length, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The slim profile and flexible construction of this CAT6 cable provide distinct advantages in professional networking environments where space optimization and cable management are priorities.
Space-Efficient Design
With a 36% reduction in diameter compared to standard CAT6 cables, this slim design allows for tighter bundling and improved airflow in high-density installations.
- Reduces cable clutter
- Enhances cooling efficiency
- Simplifies troubleshooting access
Enhanced Durability
The cable incorporates multiple protective features that extend its service life in demanding networking applications.
- Snag-resistant connectors prevent damage
- LSZH jacket resists flames and heat
- Strain relief minimizes conductor stress
Deployment / Use Cases
This slim CAT6 Ethernet cable is ideal for environments where cable density and management are critical considerations. The combination of performance specifications and physical design characteristics makes it suitable for both standard networking and power-over-Ethernet applications.
In corporate settings, the cable works well in network closets, data centers, and cable management panels where multiple connections converge. The slim profile allows for better organization and airflow between stacked switches and patch panels. For PoE applications, the cable reliably delivers both data and power to devices like security cameras, wireless access points, and VoIP phones in office buildings, schools, and retail environments.
Highlights
- 50-foot slim CAT6 Ethernet cable with 36% slimmer diameter

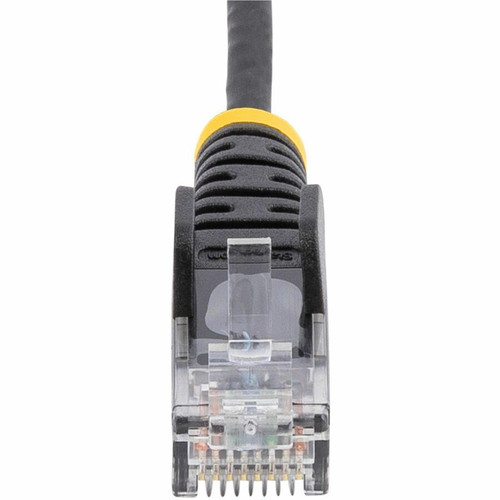

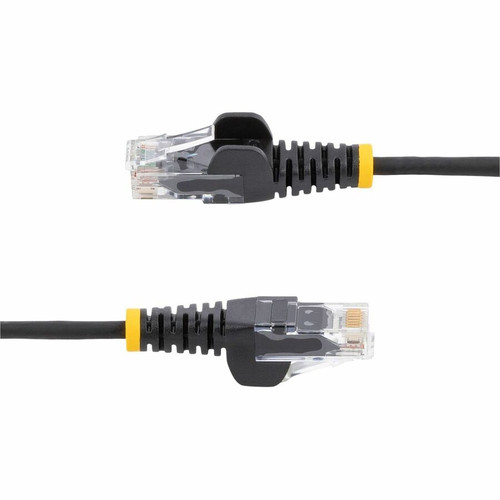

- Snagless RJ45 connectors with 50-micron gold plating
- UTP (Unshielded Twisted Pair) construction with 28AWG bare copper
- LSZH (Low-Smoke Zero Halogen) jacket for safety in enclosed spaces
- Supports PoE++ up to 90W (IEEE 802.3bt Type 4 compliant)
- 1 Gbit/s data transfer rate with 250MHz frequency
- Compliant with ANSI/TIA-568-C.2 CAT6 performance standards
- Fluke tested for reliable network performance
- Backward compatible with CAT5e and CAT5 networks
- Lifetime warranty from StarTech.com
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6PAT50BLKS |
| Brand Name | StarTech.com |
| Product Name | Cat.6 Patch UTP Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 50 ft (15.24 m) |
| Cable Shielding Type | Unshielded Twisted Pair (UTP) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Contact Plating | Gold |
| Shielding | No |
| Jacket Type | LSZH |
| Device Supported | Network Device,Patch Panel,PoE Switch |
| American Wire Gauge | 28 AWG |
| Data Transfer Rate | 1 Gbit/s |
| Number of Pairs | 4 |
| Number of Conductors | 8 |
| Features | Break Resistant,Flame Retardant,Flexible,Heat Resistant,Minimized Near-End Crosstalk (NEXT),PoE,PoE++,Snag Resistant,Strain Relief,Stranded |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Bare Copper |
| Miscellaneous | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the length of this CAT6 Ethernet cable?
This StarTech.com CAT6 Ethernet cable measures 50 feet (15.24 meters) in length. The 50-foot span provides sufficient reach for connecting network devices across typical office environments, between equipment racks in data centers, or from patch panels to workstations in commercial installations.
What type of connectors does this cable have?
Both ends of the cable feature snagless RJ45 male connectors with 50-micron gold plating. The snagless design includes protective boots that prevent the connector latch from catching on other cables or equipment during installation and removal, while the gold plating ensures reliable electrical contact and corrosion resistance for consistent network performance.
Does this cable support Power over Ethernet (PoE)?
Yes, this CAT6 cable fully supports Power over Ethernet, including PoE++ specifications compliant with IEEE 802.3bt Type 4. It can deliver up to 90W of power alongside data transmission, making it suitable for connecting PoE devices such as IP cameras, wireless access points, VoIP phones, and other networked equipment that requires both power and data through a single cable.
What does LSZH jacket mean and why is it important?
LSZH stands for Low-Smoke Zero Halogen, a type of cable jacket material that produces minimal smoke and no halogen gases when exposed to fire. This is particularly important in enclosed spaces, poorly ventilated areas, or vertical cable runs where toxic fumes could pose health risks. The LSZH jacket also provides flexibility for routing in tight spaces while meeting safety standards for commercial installations.
Is this cable backward compatible with older network standards?
Yes, this CAT6 Ethernet cable is fully backward compatible with CAT5e and CAT5 network equipment. It will work with any device that uses RJ45 connectors, automatically negotiating to the highest speed supported by both connected devices. The cable has been Fluke tested to ensure it meets CAT6 performance specifications while maintaining compatibility with existing network infrastructure.
What warranty comes with this Ethernet cable?
StarTech.com provides a lifetime warranty for this CAT6 Ethernet cable. This warranty covers defects in materials and workmanship for the life of the product, offering long-term assurance of quality and reliability for professional networking installations. The warranty reflects the durable construction with features like snagless connectors, LSZH jacket, and 28AWG bare copper conductors designed for extended service life.
