StarTech. com SMDOS2LCLC50M LC to LC - UPC OS2 Single Mode Duplex Fiber Optic Cable - 50m - 164ft - 100G - Low Insertion Loss - LSZH - Yellow
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This OS2 single mode fiber optic cable features 9/125μm fiber construction with laser optimized 1260-1625nm wavelength support, making it compatible with Coarse Wavelength Division Multiplexing (CWDM) systems for extended channel isolation over long distances. The cable delivers insertion loss of ≤0.3dB and return loss of ≥55dB, outperforming industry standards for reliable data transmission.
The 2mm cable diameter with aramid reinforcement provides durability while maintaining flexibility, with a loaded bend radius of just 10mm (0.39 inches) for installation in confined spaces. Each cable undergoes individual testing with included test reports to guarantee performance specifications are met.
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Mode, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This fiber optic patch cable combines advanced optical engineering with practical installation features for demanding networking environments. The bend insensitive fiber core resists micro-bend attenuation, maintaining signal integrity even when routed through complex cable management systems.
Enhanced Connector Performance

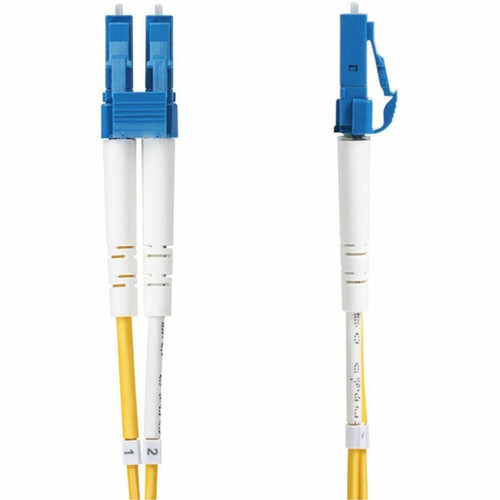

LC/UPC connectors with Ultra Physical Contact polish provide improved return loss compared to standard PC polish, reducing signal reflection for cleaner data transmission. Numbered and color-coded connectors simplify polarity identification during installation.
- UPC polished connectors
- Numbered and color-coded
- Reduced signal reflection
Safety-First Construction
The LSZH jacket emits minimal toxic fumes if combusted, making this cable suitable for enclosed spaces and poorly ventilated areas. The flame-retardant properties and WEEE compliance ensure environmental responsibility throughout the product lifecycle.
- LSZH jacket safety
- Flame retardant
- WEEE compliant
Deployment / Use Cases
This LC to LC fiber patch cable is engineered for high-density data center applications where 100G network performance is essential. It provides reliable interconnections between servers, switches, storage devices, and network equipment in enterprise environments, colocation facilities, and telecommunications infrastructure.
The cable's backward compatibility with OS1 fiber standards allows for integration into existing network upgrades, while the EMI immunity ensures stable performance in electrically noisy environments. Ideal for connecting SAN/NAS storage arrays, core network switches, and high-performance computing clusters where data integrity cannot be compromised.
Data Center Interconnects
Connect top-of-rack switches to aggregation layers or link server racks in high-performance computing environments where 100G throughput and low latency are required.
- Server-to-switch connections
- Storage area networks
- High-density patching
Network Infrastructure
Deploy in telecommunications central offices, enterprise backbone networks, or between buildings in campus environments where single mode fiber delivers maximum distance capability.
- Backbone connections
- Inter-building links
- Telecom infrastructure
Highlights
- 50-meter (164-foot) LC to LC OS2 single mode duplex fiber optic cable
- Supports 100G networks with backward compatibility to OS1 standards
- Bend insensitive fiber technology with 10mm loaded bend radius
- LSZH (Low Smoke Zero Halogen) jacket for safety in enclosed spaces
- UPC polished LC connectors for improved return loss performance
- Individually tested with included test report for guaranteed performance
- Yellow color-coded for easy single mode fiber identification
- EMI immune construction for stable performance in noisy environments
- 9/125μm fiber with 1260-1625nm wavelength support for CWDM compatibility
- Aramid-reinforced jacket provides durability while maintaining flexibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SMDOS2LCLC50M |
| Brand Name | StarTech.com |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Single-mode |
| Fiber Type | Duplex |
| Fiber Category | OS2 |
| Cable Length | 164 ft (50 m) |
| Connector Type on First End | LC/UPC Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x LC/UPC Network - Male |
| Connector Type on Second End | LC/UPC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 2 x LC/UPC Network - Male |
| Jacket Type | LSZH |
| Device Supported | Network Device,Server,Switch,Storage Device |
| Data Transfer Rate | 100 Gbit/s |
| Features | Bend Insensitive,Ultra Physical Contact (UPC),UPC Polished Connector,Flame Retardant,Passive,EMI Protection,Bendable |
| Physical Characteristics | |
| Color Family | Yellow |
| Product Color | Yellow |
| Product Material | Polypropylene |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
What is the maximum data transfer rate supported by this fiber optic cable?
This OS2 single mode fiber optic cable supports data transfer rates up to 100 Gbit/s, making it suitable for high-performance networking applications including data center interconnects, server-to-switch connections, and backbone network infrastructure. The cable is optimized for 100G networks while maintaining backward compatibility with lower-speed applications.
What type of connectors does this cable have on both ends?
Both ends feature LC/UPC connectors with male gender configuration. Each end has 2 x LC/UPC Network - Male connectors in a duplex arrangement. The UPC (Ultra Physical Contact) polish provides improved return loss compared to standard PC polish, reducing signal reflection for cleaner optical performance.
What does LSZH jacket mean and why is it important?
LSZH stands for Low Smoke Zero Halogen, a jacket material that emits minimal toxic fumes and smoke if combusted. This safety feature makes the cable suitable for installation in enclosed spaces, poorly ventilated areas, and environments where fire safety is a priority. The LSZH construction also meets WEEE environmental compliance standards.
Can this cable be used in tight bend radius installations?
Yes, this cable features bend insensitive fiber technology with a loaded bend radius of just 10mm (0.39 inches). The aramid-reinforced jacket and flexible construction allow for installation in confined spaces and complex cable routing scenarios without compromising signal integrity or performance specifications.
What is the difference between OS1 and OS2 single mode fiber?
OS2 fiber has stricter specifications for attenuation and dispersion compared to OS1, making it optimized for longer distances and higher bandwidth applications like 100G networks. This cable uses OS2 single mode fiber with 9/125μm construction, providing superior performance while maintaining backward compatibility with OS1 installations for network upgrade scenarios.
What devices and equipment is this fiber patch cable compatible with?
This cable is compatible with network devices, servers, switches, and storage devices that support LC connector interfaces. It's ideal for connecting data center equipment, SAN/NAS storage arrays, core network switches, and telecommunications infrastructure. The single mode OS2 fiber works with equipment supporting 1260-1625nm wavelengths, including CWDM systems.
