StarTech. com HDMI2-CABLE-4K60-5M Premium Certified HDMI 2. 0 Cable - 5m (16. 4ft) 18Gbps 4K 60Hz/1440p 144Hz HDR10 ARC HDCP 2. 2
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This HDMI 2.0 cable meets the Premium HDMI Cable Certification standard, guaranteeing compliance with HDMI 2.0 specifications for consistent performance and compatibility. The 18Gbps data transfer rate enables uncompressed 4K video with 32-channel audio, while the 26 AWG conductor and aluminum mylar foil shielding minimize signal loss and electromagnetic interference.
The connectors are rated for over 10,000 insertions and feature performance markings for easy identification. The cable is tested to withstand 2,000 bending cycles at ±60 degrees, and its halogen-free, RoHS-compliant construction meets environmental and safety standards.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This cable combines certification-backed reliability with high-bandwidth performance for demanding AV applications. Its construction and feature set address common pain points in cable selection and installation.
Certified Performance
Premium HDMI Certification ensures guaranteed HDMI 2.0 performance, eliminating guesswork about compatibility and signal quality for 4K HDR content.
- Verified 18Gbps bandwidth
- HDCP 2.2 compliance
- HDR10 support
Durable Design

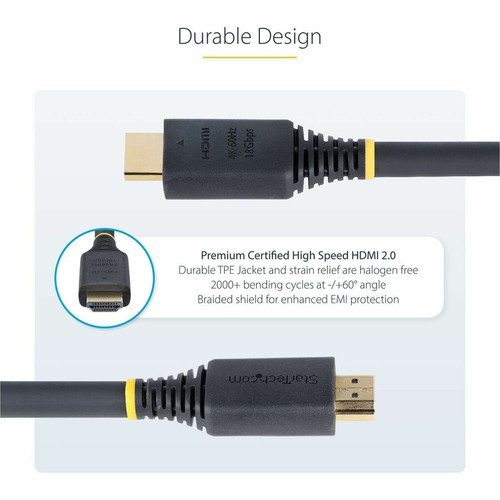

Gold-plated connectors, braided shielding, and a flexible TPE jacket provide durability and EMI protection in various installation environments.
- 10,000+ insertion rating
- 2,000 bend cycle tested
- Strain relief construction
Enhanced Connectivity
Includes HDMI Ethernet Channel for network sharing and Audio Return Channel for simplified audio system integration without extra cables.
- Single-cable audio/video/data
- ARC for audio systems
- CEC for device control
Deployment / Use Cases
This HDMI cable is suited for environments where high-resolution video and reliable signal transmission are critical. Its length and performance specifications make it versatile for both professional and consumer setups.
Common applications include connecting 4K monitors to docking stations or workstations, linking external GPUs to displays for gaming or creative work, integrating soundbars or AV receivers into home theater systems, and extending signals for digital signage or conference room displays.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Workstation & Docking Stations

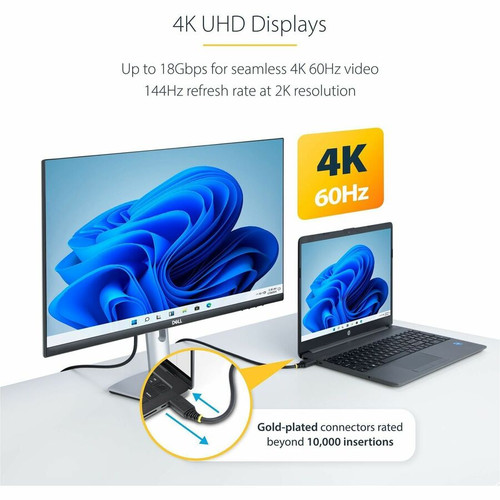

Delivers 4K 60Hz video from laptops or docking stations to external monitors, supporting productivity and multimedia tasks with crisp detail.
Gaming & High-Refresh Displays
Supports 1440p at 144Hz and 1080p at 240Hz for smooth gaming experiences, with HDR10 enhancing color and contrast in supported games.
Physical Profile
The cable features a black TPE jacket that is flexible and resistant to wear, with an 8.5mm outer diameter for manageable routing. The gold-plated HDMI connectors provide corrosion resistance and reliable contact, while the strain relief design prevents damage at connection points. Weighing 12.60 oz, it balances durability with manageable handling for installations up to 16.4 feet.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 12.60 oz (357.20 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 12.60 oz (357.20 g)
- Length
- 16.4 ft (5 m)
Highlights
- Premium Certified HDMI 2.0 cable with guaranteed 18Gbps performance
- Supports 4K at 60Hz, 1440p at 144Hz, and 1080p at 240Hz refresh rates
- Includes HDR10, ARC, HDCP 2.2, CEC, and HDMI Ethernet Channel features
- Gold-plated connectors rated for over 10,000 insertions
- Durable TPE jacket with braided shielding for EMI protection
- Backward compatible with earlier HDMI versions
- 5-meter (16.4-foot) length for flexible installation
- Halogen-free and RoHS compliant construction
- Ideal for docking stations, workstations, external GPUs, and AV receivers
- Performance markings on connectors for easy identification
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | HDMI2-CABLE-4K60-5M |
| Brand Name | StarTech.com |
| Product Name | HDMI Audio/Video Cable |
| Packaged Quantity | 1 |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | HDMI |
| Cable Length | 16.4 ft (5 m) |
| Connector Type on First End | HDMI 2.0 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x HDMI 2.0 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x HDMI 2.0 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Device Supported | Docking Station,Workstation,External GPU,Soundbar,A/V Receiver,Display,Monitor,TV,Audio/Video Device |
| American Wire Gauge | 26 AWG |
| Data Transfer Rate | 18 Gbit/s |
| Supported Resolution | 3840 x 2160 |
| Features | Passive,Consumer Electronics Control (CEC),Halogen Free,EMI Protection,Braided,HDMI Ethernet Channel (HEC),Durable,Strain Relief,Flexible,Audio Return Channel (ARC),HDCP 2.2,HDR10 Support,4K UHD |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Thermoplastic Elastomer (TPE),Thermoplastic Rubber,Santoprene |
| Shielding Material | Aluminum Mylar Foil |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Weight (Approximate) | 12.60 oz (357.20 g) |
User Manual
FAQ
What is the maximum resolution and refresh rate this HDMI cable supports?
This Premium Certified HDMI 2.0 cable supports up to 4K UHD resolution (3840 x 2160) at 60Hz, 1440p at 144Hz, and 1080p at 240Hz. The 18Gbps bandwidth ensures seamless video playback for high-resolution content, making it suitable for gaming, professional video editing, and 4K home theater systems.
Is this cable backward compatible with older HDMI devices?
Yes, the cable is fully backward compatible with earlier HDMI versions. It maintains signal integrity and functionality when connected to HDMI 1.4, 1.3, or other legacy devices, allowing you to use it with existing equipment while being ready for future HDMI 2.0 upgrades.
What does Premium HDMI Certification mean for this cable?
Premium HDMI Certification guarantees that the cable meets HDMI 2.0 performance standards, including 18Gbps bandwidth, HDR10 support, and HDCP 2.2 compliance. This certification ensures reliable signal consistency, reduces compatibility issues, and provides confidence that the cable will deliver the advertised video and audio quality.
Can this cable carry Ethernet and audio return signals?
Yes, it includes HDMI Ethernet Channel (HEC) for network sharing over the cable and Audio Return Channel (ARC) for sending audio from a TV back to an AV receiver or soundbar. These features simplify setup by reducing the need for separate Ethernet or audio cables in supported home theater configurations.
How durable are the connectors and cable jacket?
The gold-plated connectors are rated for over 10,000 insertions, and the Thermoplastic Elastomer (TPE) jacket is tested to withstand 2,000 bending cycles at ±60 degrees. The cable also features strain reliefs and braided shielding for enhanced durability and EMI protection in demanding environments.
What devices is this HDMI cable compatible with?
It is compatible with a wide range of HDMI devices, including docking stations, workstations, external GPUs, soundbars, AV receivers, displays, monitors, and TVs. The 5-meter length and high bandwidth make it ideal for connecting 4K sources to displays in office, gaming, and home entertainment setups.
What resolution or display format is specified?
It features a display specification of 3840 x 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
