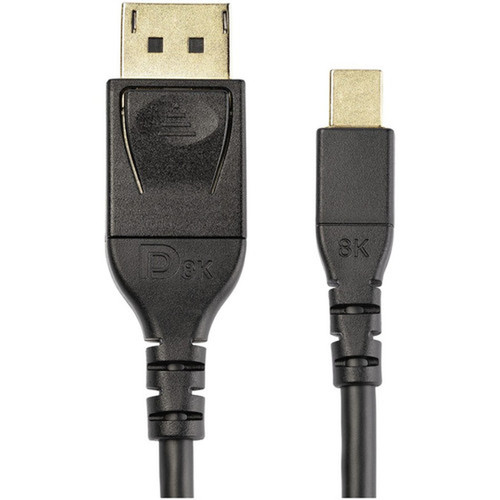

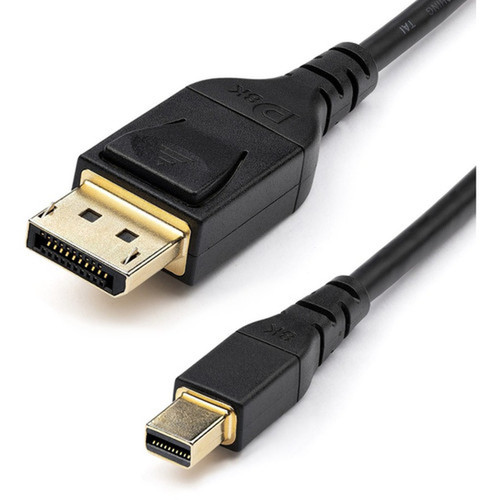

StarTech. com DP14MDPMM2MB VESA Certified Mini DisplayPort to DisplayPort 1. 4 Cable - 6. 6ft (2m) 8K 60Hz HDR 4K 120Hz Slim mDP to DP
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This cable leverages DisplayPort 1.4 technology to achieve a maximum supported resolution of 7680 x 4320 (8K) at 60Hz, with 4:4:4 chroma subsampling for accurate color reproduction. It incorporates Display Stream Compression (DSC) 1.2 to maintain high bandwidth efficiency without perceptible quality loss. The HBR3 (High Bit Rate 3) standard enables data rates up to 32.4 Gbps, facilitating high refresh rates and resolutions.
Advanced features include Multi-Stream Transport (MST) support for daisy-chaining multiple monitors, Forward Error Correction (FEC) for reduced signal errors, and HDCP 2.2 for protected content playback. The cable's construction includes Al-Mylar foil and braided shielding to minimize electromagnetic interference (EMI), while strain relief and a bend-resistant design enhance durability under frequent use.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This cable stands out with its VESA certification, ensuring compliance with industry standards for performance and reliability. The slim profile and robust build make it ideal for both permanent installations and mobile setups, where space and durability are critical.
High-Resolution Support
Delivers 8K at 60Hz and 4K at 120Hz, catering to the demands of modern displays and graphics-intensive applications.
- 8K @ 60Hz with DSC 1.2
- 4K @ 120Hz for smooth motion
- HDR meta transport capability
Enhanced Durability
Built with a PVC jacket, gold-plated connectors, and strain relief to withstand frequent bending and environmental stress.
- Gold plating prevents tarnish
- Strain relief protects core wiring
- Bend-resistant design
Broad Compatibility
Works with a wide array of devices, including professional graphics cards, monitors, and legacy Mini DisplayPort 1.2 hosts.
- NVIDIA Quadro series
- AMD Radeon Pro series
- Thunderbolt 2 devices (1080p/4K)
Deployment / Use Cases
This cable is versatile enough for professional, gaming, and home entertainment environments. In professional settings, it connects high-end workstations to 8K monitors for tasks like video editing, CAD design, and financial modeling, where color accuracy and resolution are paramount. The MST support allows daisy-chaining multiple displays, streamlining multi-monitor setups without additional hardware.
For gaming and home theater, the cable supports 4K at 120Hz, enabling smooth gameplay and high-frame-rate video playback. Its compatibility with HDR and HDCP 2.2 ensures optimal performance with HDR-certified monitors and protected content sources. The slim design and 6.6-foot length make it suitable for behind-desk cable management, wall-mounted displays, or portable setups with laptops and projectors.
Highlights
- VESA Certified Mini DisplayPort to DisplayPort 1.4 cable with 6.6ft (2m) length
- Supports 8K resolution at 60Hz using Display Stream Compression (DSC) 1.2
- Delivers 4K at 120Hz for high refresh rate applications and smooth motion
- 32.4 Gbps bandwidth with HBR3 signaling for high-speed data transfer
- Includes HDR meta transport and HDCP 2.2 for protected content playback
- Multi-Stream Transport (MST) support enables daisy-chaining of multiple monitors
- Built with EMI shielding, gold-plated connectors, and strain relief for durability
- Compatible with NVIDIA Quadro and AMD Radeon Pro graphics cards
- Slim PVC jacket (4.5mm outer diameter) for easy cable management
- Backed by a lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP14MDPMM2MB |
| Brand Name | StarTech.com |
| Product Name | Mini Displayport to Displayport Cable |
| Packaged Quantity | 1 Each |
| Product Type | Video Cable |
| Technical Information | |
| Cable Type | DisplayPort/Mini DisplayPort |
| Cable Length | 6.6 ft (2 m) |

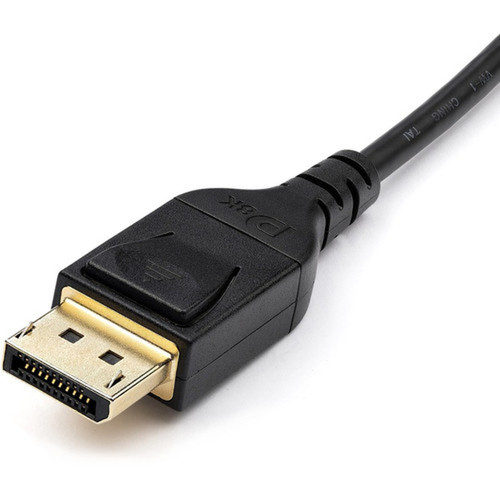

| Connector Type on First End | DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male |

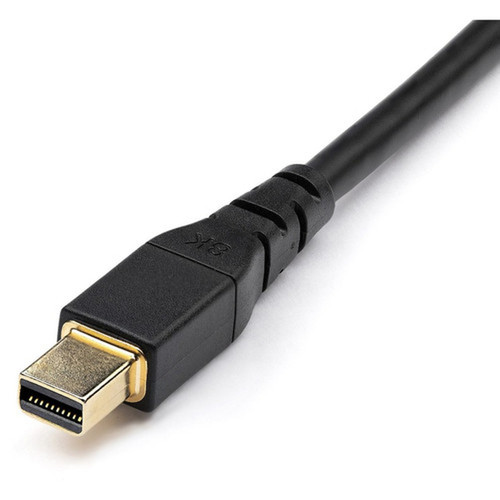

| Connector Type on Second End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Device Supported | Audio/Video Device,Notebook,Workstation,TV,Monitor,Projector,PC,MAC,Computer,Graphics Card |
| American Wire Gauge | 34 AWG |
| Data Transfer Rate | 32.4 Gbit/s |
| Supported Resolution | 7680 x 4320 |
| Features | Display Stream Compression (DSC) 1.2,HDCP 2.2,Strain Relief,Bend Resistant,Stress Resistant,Latching Connector,DPCP,Multi-Stream Transport (MST) Support,Forward Error Correction (FEC) Support,EMI Protection,Tarnish Resistant |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Miscellaneous | |
| Compatibility | Nvidia Quadro Graphic Cards: P620 P600 P400 AMD Graphic Cards: Radeon Pro VII Radeon Pro SSG Radeon Pro WX9100 Radeon Pro WX4100 Radeon Pro WX3200 Radeon Pro WX3100 Radeon Pro WX2100 Radeon Pro W5700 Radeon Pro W5500 FirePro W9100 FirePro 900 FirePro 600 FirePro 4100 |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What resolutions and refresh rates does this cable support?
This cable supports up to 8K resolution (7680 x 4320) at 60Hz using Display Stream Compression (DSC) 1.2, and 4K resolution (3840 x 2160) at 120Hz. It also handles HDR meta transport for enhanced color and contrast, making it suitable for high-end displays and graphics-intensive applications.
Is this cable VESA certified, and what does that mean?
Yes, this cable is VESA certified, ensuring it meets the Video Electronics Standards Association's performance and compatibility standards for DisplayPort technology. Certification guarantees reliable signal integrity, bandwidth compliance, and interoperability with certified devices, reducing the risk of connectivity issues.
Can I use this cable to daisy-chain multiple monitors?
Yes, the cable supports Multi-Stream Transport (MST), allowing you to daisy-chain multiple DisplayPort monitors from a single output. This feature is useful for multi-monitor setups in professional or gaming environments, simplifying cable management and reducing the need for additional ports or hubs.
What graphics cards are compatible with this cable?
The cable is compatible with a wide range of graphics cards, including NVIDIA Quadro models (P620, P600, P400) and AMD Radeon Pro series (VII, SSG, WX9100, WX4100, WX3200, WX3100, WX2100, W5700, W5500), as well as legacy FirePro cards. It also works with Mini DisplayPort 1.2 and Thunderbolt 2 hosts for 1080p or 4K output.
How durable is this cable, and what materials are used?
The cable is built for durability with a black PVC jacket, 34 AWG internal wiring, and gold-plated connectors that resist oxidation. It includes strain relief to protect the core from bending stress, Al-Mylar foil and braided shielding for EMI protection, and a latching connector on the DisplayPort end to prevent accidental disconnection.
Does this cable support HDR and HDCP 2.2?
Yes, the cable supports HDR (High Dynamic Range) meta transport for improved color and contrast in compatible displays, and HDCP 2.2 (High-bandwidth Digital Content Protection) for secure playback of protected content from sources like streaming services and Blu-ray players. These features ensure optimal performance with modern entertainment and professional media.
What resolution or display format is specified?
It features a display specification of 7680 x 4320, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
