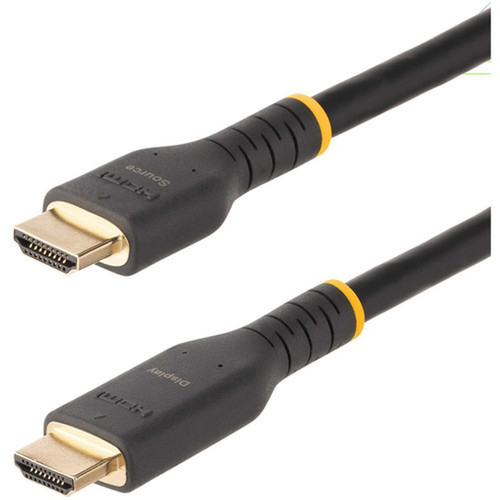

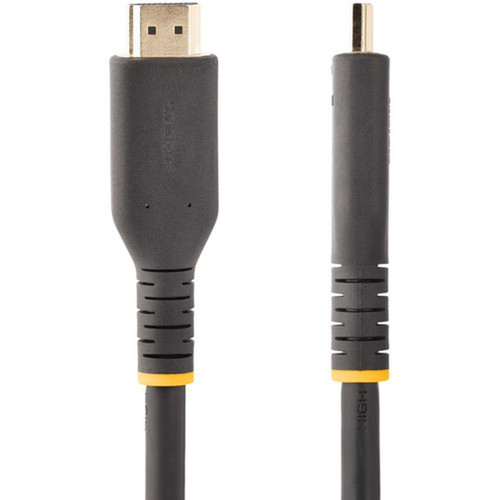

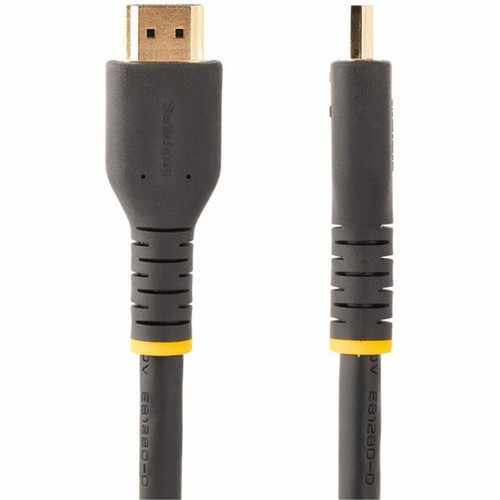

StarTech. com RH2A-7M-HDMI-CABLE Active HDMI 2. 0 Cable - 23ft - 7m Rugged Aramid Fiber - 4K 60Hz UHD - 18Gbps - HDR10 - HDCP 2. 2
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This HDMI 2.0 cable supports the complete feature set required for contemporary AV applications, including HDR10 for enhanced contrast and color depth, HDCP 2.2 content protection for 4K streaming, and HDMI Ethernet Channel (HEC) for network-over-HDMI functionality. The 32-channel multi-stream audio capability handles advanced formats including Dolby TrueHD and Atmos with 1536Hz sampling for immersive surround sound.
The cable's construction combines 100% copper conductors (28 AWG) with comprehensive EMI shielding using aluminum Mylar foil and braided copper to minimize interference in electrically noisy environments. Gold-plated connectors ensure optimal conductivity and corrosion resistance, while strain reliefs at both ends protect the connection points from mechanical failure.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, Product Color, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This cable distinguishes itself through its combination of extended-length performance, rugged durability, and comprehensive feature support that addresses common pain points in professional AV deployments.
Active Signal Boosting
Integrated bus-powered amplifier maintains full 4K 60Hz signal integrity over the entire 23-foot length, eliminating the pixelation and dropouts that often occur with passive cables at this distance.
- Prevents signal degradation
- Supports additional color spaces including Adobe RGB
- Directional design with clear source/display labels
Rugged Construction
Aramid fiber reinforcement and TPE jacket create a cable that withstands frequent bending, pulling, and installation stress while remaining flexible for routing through conduits and cable management systems.
- Halogen-free and RoHS certified
- 7.5mm outer diameter for manageable routing
- Strain reliefs at both connectors
Professional-Grade Shielding
Dual-layer shielding with aluminum Mylar foil and braided copper provides exceptional EMI protection in environments with multiple electronic devices, ensuring clean signal transmission without interference.
- Gold-plated connectors for optimal conductivity
- Maintains signal integrity in electrically noisy spaces
- Reduces crosstalk in bundled cable installations
Deployment / Use Cases
This active HDMI cable is specifically designed for commercial and institutional applications where reliability, distance, and signal quality are critical factors. Its rugged construction and active signal technology make it ideal for permanent installations that require consistent performance over time.
In conference rooms and classrooms, the cable connects displays to media PCs or video conferencing systems at distances that accommodate flexible room layouts. For digital signage deployments, it ensures reliable 4K content delivery from media players to large-format displays, even when equipment must be located in separate racks or enclosures. The cable also serves professional AV installations where equipment separation is necessary for thermal management or accessibility.
Conference Room & Classroom AV
Connect media PCs, video conferencing codecs, or document cameras to wall-mounted or ceiling-mounted displays while maintaining full 4K resolution and HDR capabilities.
Digital Signage & Display Walls
Reliably transmit high-resolution content from media players or distribution systems to commercial displays in retail environments, corporate lobbies, or public information displays.
Highlights
- 23-foot (7-meter) active HDMI 2.0 cable with signal amplification for extended distances
- Supports 4K UHD resolution at 60Hz with 18Gbps bandwidth and HDR10
- Rugged construction with aramid fiber reinforcement and TPE jacket for durability
- Gold-plated connectors with dual-layer EMI shielding (aluminum Mylar foil and braided copper)
- HDMI Ethernet Channel (HEC) enables network-over-HDMI functionality
- Audio Return Channel (ARC) and Consumer Electronics Control (CEC) support
- HDCP 2.2 compliant for protected 4K content streaming
- 32-channel audio with support for Dolby TrueHD, Atmos, and other advanced formats
- Halogen-free, RoHS certified TPE jacket for environmental sustainability
- 2-year limited warranty for commercial deployment confidence
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | RH2A-7M-HDMI-CABLE |
| Brand Name | StarTech.com |
| Product Name | 7m Rugged Active HDMI 2.0 Cable |
| Packaged Quantity | 1 |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | HDMI |
| Cable Length | 23 ft (7 m) |
| Connector Type on First End | HDMI 2.0 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 19-pin HDMI 2.0 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 19-pin HDMI 2.0 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Device Supported | Audio/Video Device |
| American Wire Gauge | 28 AWG |
| Data Transfer Rate | 18 Gbit/s |
| Supported Resolution | 4096 x 2160 |
| Features | Active,Rugged,Heavy Duty,HDMI Ethernet Channel (HEC),Strain Relief,HDR10 Support,Audio Return Channel (ARC),Stress Resistant,Bend Resistant,Halogen Free,EMI Protection,HDCP 2.2,Consumer Electronics Control (CEC) |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Aramid Fiber,Copper |
| Shielding Material | Aluminum Mylar Foil,Braided Copper |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What makes this HDMI cable 'active' and why is that important for a 23-foot length?
This cable incorporates an integrated bus-powered amplifier that boosts the video signal to prevent degradation over the 23-foot distance. Active circuitry is essential at this length because HDMI signals naturally attenuate over distance, which can cause pixelation, color shifts, or complete signal loss with passive cables. The active design ensures consistent 4K 60Hz performance with full 18Gbps bandwidth maintained from source to display.
Does this cable support HDR content and what HDR formats are compatible?
Yes, this HDMI 2.0 cable fully supports HDR10, which is the most widely implemented HDR format for 4K content from streaming services, Blu-ray players, and gaming consoles. HDR10 enhances contrast ratios and color depth for more vibrant and realistic images. The cable's 18Gbps bandwidth provides sufficient data throughput for HDR metadata alongside the 4K 60Hz video signal.
Can this cable carry Ethernet signals through the HDMI connection?
Yes, this cable supports HDMI Ethernet Channel (HEC), which allows network data to be transmitted alongside audio and video signals through a single HDMI connection. This feature can reduce cable clutter in AV installations by eliminating separate Ethernet runs between compatible devices, though both connected devices must support HEC functionality to utilize this capability.
What audio formats does this HDMI cable support?
The cable supports 32-channel audio with 1536Hz sampling, including advanced surround sound formats such as Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and uncompressed multichannel PCM. This makes it suitable for home theater systems, professional audio installations, and conference rooms where high-fidelity audio is required alongside 4K video.
Is this cable compatible with HDCP 2.2 protected content?
Yes, this HDMI cable is fully HDCP 2.2 compliant, which is necessary for transmitting protected 4K content from sources like streaming devices, Blu-ray players, and gaming consoles to displays. HDCP 2.2 is the content protection standard required for most commercial 4K streaming services and physical media, ensuring the cable won't create compatibility issues with copy-protected content.
What resolution or display format is specified?
It features a display specification of 4096 x 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
What input or connectivity options are listed?
Connectivity options include HDMI 2.0 Digital Audio/Video - Male, helping the product integrate into common office or home setups.
