StarTech.com ARMQUAD Desk Mount Quad Monitor Arm - 4 VESA Displays up to 27" - Heavy Duty Steel - Height Adjustable - Articulating
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Constructed from robust steel, the ARMQUAD mount features a total maximum load capacity of 70.40 pounds, distributed across its four arms. It is compatible with VESA 75x75 mm and 100x100 mm mounting patterns, supporting LCD and LED displays from 13 to 27 inches in size.
The mount offers a 13.5-inch height adjustment range for each row of displays on the central pole. Individual arms provide micro-adjustment capabilities, including +/-30° of tilt and swivel, plus 360° of rotation for portrait or landscape orientation.
Relevant factors for this section include Device Supported, Number of Displays Supported, Maximum Load Capacity, Color Family. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This quad monitor arm transforms desk organization by consolidating four displays into a single, stable mounting point. The integrated cable management system uses clips on the pole and arms to route and secure cables, maintaining a clean and professional workspace appearance.
Flexible Installation Options
Install the mount using the included desk clamp (C-clamp) for standard desks or the grommet hole mount for desks with pre-cut openings between 10 and 80 mm. Both methods secure by hand without requiring permanent modifications.
- Desk Clamp Included
- Grommet Mount Included
- Tool-Free Hand Tightening
Enhanced Ergonomic Range
Each monitor arm articulates at a +30° angle toward the user, improving viewing angles and reducing neck strain. The combination of tilt, swivel, rotation, and height adjustment allows every screen to be positioned for individual comfort and task requirements.
Deployment / Use Cases
The ARMQUAD is ideal for trading floors, financial analysis stations, software development setups, security monitoring centers, and creative workstations where multiple data streams or applications need simultaneous visibility. Its 2x2 grid configuration supports efficient multi-tasking across four discrete screens.
This mount is particularly effective in environments where desk space is limited but screen real estate is critical. By lifting displays off the desk surface, it creates additional room for keyboards, documents, and other peripherals while improving airflow and cable accessibility.
Command Center Configurations
Deploy in control rooms or network operations centers where operators need to monitor multiple feeds, dashboards, or surveillance cameras across a consolidated viewing array.
Professional Creative & Development Workstations
Support video editing timelines, code editors, design palettes, and reference materials across four synchronized displays, with each screen positioned for optimal ergonomics during extended work sessions.
Physical Profile
The mount system has a footprint of 32.87 inches in width and 4.53 inches in depth at the base, with a maximum height of 32.60 inches when fully extended. Its all-black steel finish integrates discreetly into office environments. The design includes rubber pads to protect desk surfaces and minimize vibration.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: Yes, 32.87" (835 mm), 16.76 lb (7600 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 32.87" (835 mm)
- Height
- Yes
- Weight
- 16.76 lb (7600 g)
- Length
- 4.53" (115 mm)
What's in the Box
The package includes all necessary components for assembly and installation, along with tools and hardware for both clamp and grommet mounting methods.
Highlights
- Supports four monitors up to 27" each with VESA 75x75/100x100 compatibility
- Heavy-duty steel construction with 70.40 lb total load capacity
- 13.5" height adjustment range along the central pole for each row of displays
- +/-30° tilt and swivel plus 360° rotation on each articulating arm
- Includes both desk clamp and grommet hole mounting options (10-80mm)
- Integrated cable management clips on the pole and all four arms
- Facilitates a 2x2 grid configuration for efficient multi-screen workspace
- 5-year limited warranty for long-term reliability
- EU RoHS and REACH compliant for environmental safety
- All necessary tools and hardware included for complete installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ARMQUAD |
| Brand Name | StarTech.com |
| Product Name | Desk-Mount Quad-Monitor Arm - Articulating - Heavy Duty Steel |
| Packaged Quantity | 1 Each |
| Product Type | Mounting Arm |
| Product Information | |
| Device Supported | Monitor,LCD Display,LED Display |
| Number of Displays Supported | 4 |
| Maximum Load Capacity | 70.40 lb (31932.90 g) |
| Minimum Screen Size Supported | 13" |
| Maximum Screen Size Supported | 27" |
| Height Adjustable | Yes |
| Features | Ergonomic,Tilt,Rotate,Swivel,Heavy Duty,Articulating,Grommet,360° Rotation,Sturdy,Adjustable,Reduced Glare,Cable Management,Flexible |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Mounting Pattern | 75 x 75,100 x 100 |
| Height | 32.60" (828 mm) |
| Width | 32.87" (835 mm) |
| Length | 4.53" (115 mm) |
| Weight (Approximate) | 16.76 lb (7600 g) |
| Miscellaneous | |

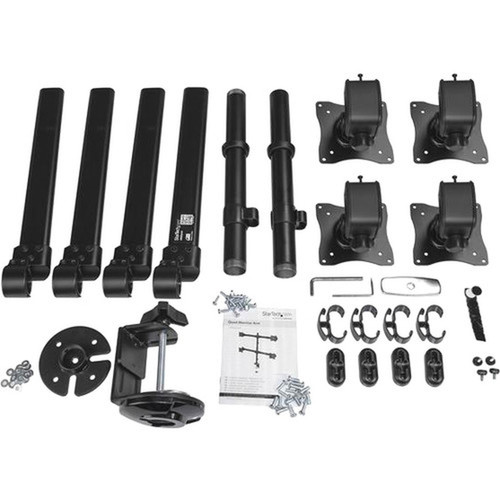

| Package Contents | 4 x Monitor Arms 4 x VESA Monitor Mounts 1 x Lower Pole 1 x Upper Pole 1 x Pole Connector 4 x Cable-management Clips 4 x End Caps 4 x Thumbscrews 1 x Desk Clamp 1 x 3 mm Hex Key 1 x 5 mm Hex Key 16 x M4x14 mm Screws 16 x M5x14 mm Screws 16 x Washers 1 x Grommet Collar 1 x Grommet Plate 5 x Rubber Pads 1 x Instruction Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum screen size and weight per monitor this arm supports?
Each of the four arms supports monitors up to 27 inches in size and 17.6 pounds (8 kg) in weight. The total system load capacity is 70.40 pounds, distributed across all arms. This capacity accommodates a wide range of LCD and LED displays commonly used in professional settings.
What VESA mounting patterns are compatible with this quad monitor arm?
The ARMQUAD is compatible with VESA 75x75 mm and 100x100 mm mounting patterns. These are standard patterns for most monitors from 13 to 27 inches. The included VESA mounts attach directly to the monitor's rear mounting holes, then connect to the articulating arms.
How much height adjustment does this mount provide?
The mount offers a 13.5-inch height adjustment range for each row of displays along the central pole. This allows you to precisely align all four screens vertically. Individual arms also provide micro-adjustment for fine-tuning each monitor's position relative to the others in the 2x2 grid.
What installation methods are included with this monitor arm?
The package includes both a desk clamp (C-clamp) and a grommet hole mounting kit. The desk clamp secures to the edge of most desks up to 2.4 inches thick. The grommet mount fits into pre-cut desk holes between 10 and 80 mm in diameter. Both methods tighten by hand without requiring power tools.
Does this mount include cable management features?
Yes, the ARMQUAD incorporates cable management clips pre-installed on the central pole and all four monitor arms. These adjustable clips route and secure power, video, and USB cables along the arm structure, keeping them organized and hidden from view for a clean workspace appearance.
What ergonomic adjustments are available for each monitor?
Each monitor arm provides +/-30° of tilt (forward/backward) and swivel (side-to-side), plus 360° of rotation for portrait or landscape orientation. Arms also articulate at a +30° angle toward the user. These adjustments combine to reduce glare, minimize neck strain, and optimize viewing angles for all four displays.
