StarTech.com ARMSLIM2USB3 Slim Full Motion Single Monitor Arm with 2x USB 3.0 Ports - VESA 75 x 75/100 x 100 - C-Clamp/Grommet Mount - Supports up to
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

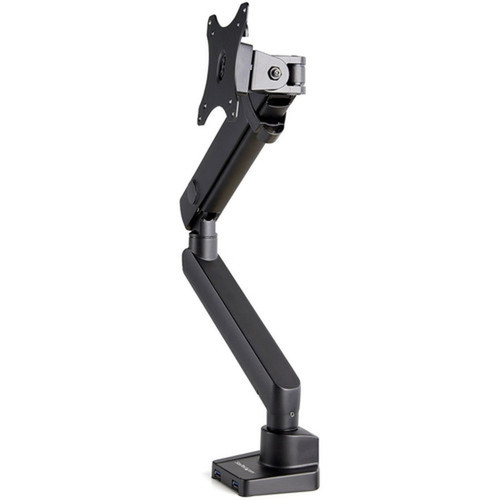

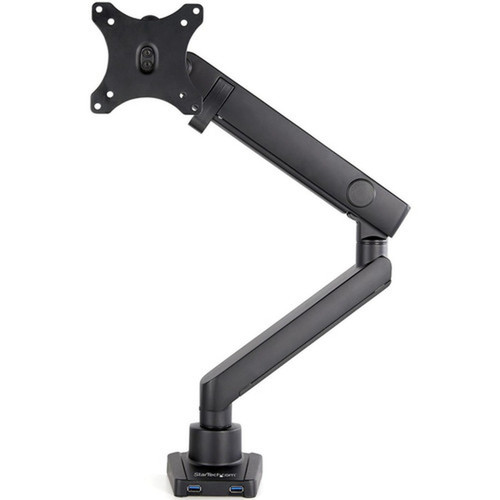

This monitor arm delivers precise mechanical control through its multi-joint design. The VESA mounting plate detaches for easy monitor attachment and supports both 75x75mm and 100x100mm patterns. The arm extends up to 18.4 inches from the base, offering substantial reach for optimal viewing positioning.
The mounting system includes both C-clamp and grommet installation options, accommodating desk thicknesses from 10mm to 50mm. All necessary hardware—including hex keys, screws, washers, and mounting plates—is included for straightforward assembly. The arm's black aluminum finish provides durability and a professional appearance that complements modern office environments.
Relevant factors for this section include Device Supported, Number of Displays Supported, Maximum Load Capacity, Color Family. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ARMSLIM2USB3 combines ergonomic design with practical features that enhance both comfort and productivity. Its comprehensive motion capabilities allow users to position their display at the exact height, angle, and orientation that reduces neck and eye strain during extended work sessions.
Enhanced Connectivity
Two USB 3.0 ports with 5Gbps transfer speeds enable quick access to peripherals like flash drives, webcams, or external storage without reaching for the computer.
- USB-A 3.1 Gen 1 ports
- 5Gbps data transfer
- Convenient front access
Simplified Installation
The included tool clip and comprehensive hardware kit make setup straightforward. The detachable VESA plate allows monitors to be mounted securely before attaching to the arm.
- C-clamp and grommet options
- Included adjustment tools
- Clear installation guidance
Deployment / Use Cases
This monitor arm is particularly effective in professional environments where display positioning directly impacts workflow efficiency. Its compatibility with larger displays makes it suitable for financial trading stations, video editing suites, and software development setups where screen real estate is critical.
The USB passthrough functionality benefits shared workspaces and hot-desking arrangements by reducing cable clutter and providing consistent peripheral access. Educational institutions and corporate training rooms can utilize the arm's rotation capability to quickly switch between landscape and portrait orientations for different content types.
Home Office Optimization
Maximize limited desk space by floating the monitor above the work surface. The slim profile creates a cleaner appearance while providing full adjustability for alternating between sitting and standing positions.
Collaborative Workspaces
The 360-degree arm rotation allows easy screen sharing during meetings. Team members can quickly pivot the display to face different directions without physically moving the entire monitor.
Physical Profile
The arm maintains a compact footprint with dimensions of 4.53 inches wide by 21.54 inches long when retracted. Its black aluminum construction ensures durability while keeping the overall weight at 6.3 pounds for stable operation. The finish resists fingerprints and maintains its appearance through regular adjustments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: Yes, 4.53" (115 mm), 6.30 lb (2857.63 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.53" (115 mm)
- Height
- Yes
- Weight
- 6.30 lb (2857.63 g)
- Length
- 21.54" (547 mm)
What's in the Box
The package includes all components needed for complete installation and operation.
Highlights
- Supports single displays up to 34 inches and 17.6 pounds
- VESA 75x75mm and 100x100mm mounting compatibility
- Full motion articulation with tilt, swivel, pivot, and rotation
- Spring-assisted tool-free height adjustment from 10.1 to 17.5 inches
- Two USB 3.0 passthrough ports for peripheral connectivity
- C-clamp and grommet mounting options included
- Built-in cable management system
- Aluminum construction with black finish
- Includes all necessary installation hardware
- 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ARMSLIM2USB3 |
| Brand Name | StarTech.com |
| Product Model | ARMSLIM2USB3 |
| Product Name | ARMSLIM2USB3 Mounting Arm |
| Packaged Quantity | 1 Each |
| Product Type | Mounting Arm |
| Product Information | |
| Device Supported | Monitor,Curved Screen Display,Flat Panel Display |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 17.64 lb (8000 g) |
| Minimum Screen Size Supported | 17" |
| Maximum Screen Size Supported | 34" |
| Height Adjustable | Yes |
| Features | Articulating,Ergonomic,Rotate,Swivel,Tilt,Pivot,USB Port,Grommet,Full Motion,Heavy Duty,Cable Management,Adjustable,90° Rotation,360° Rotation |
| Minimum Extended Height | 10.10" (256.54 mm) |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Aluminum |
| Mounting Pattern | 75 x 75,100 x 100 |
| Height | 17.52" (445 mm) |
| Width | 4.53" (115 mm) |
| Length | 21.54" (547 mm) |
| Weight (Approximate) | 6.30 lb (2857.63 g) |
| Miscellaneous | |
| Package Contents | Base Clamp Assembly Lower Arm Upper Arm VESA Mount Tool Clip Grommet Plate Grommet Screw 3mm Hex Key 6mm Hex Key M4 x 12mm Screws M5 x 12mm Screws Washers |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What size monitors are compatible with this arm?
The ARMSLIM2USB3 supports monitors from 17 inches up to 34 inches in size. It accommodates both standard 16:9 displays and ultrawide 21:9 formats. The arm handles curved and flat-panel displays within the 17.6-pound weight limit.
What VESA mount patterns does this arm support?
This monitor arm is compatible with both 75x75mm and 100x100mm VESA mounting patterns. The detachable VESA plate includes pre-drilled holes for both standards, ensuring compatibility with most modern monitors that support VESA mounting.
How are the USB ports on the arm connected?
The two USB-A 3.1 Gen 1 ports require connection to your computer via an included USB cable. These are passthrough ports that extend your computer's USB connectivity to the arm location, providing 5Gbps data transfer speeds for connected peripherals.
What mounting options are included with this monitor arm?
The package includes both C-clamp and grommet mounting hardware. The C-clamp attaches to the edge of desks up to 50mm thick, while the grommet mount fits through pre-drilled desk holes. Both options provide secure attachment without permanent modification to furniture.
What adjustment capabilities does this monitor arm offer?
The arm provides comprehensive ergonomic adjustments including +/-90° tilt, +/-90° swivel, 90° screen rotation between landscape and portrait orientations, and 360° arm rotation. Height adjustment ranges from 10.1 to 17.5 inches above the desk surface with spring-assisted tool-free operation.
What is included in the package for installation?
The complete package includes the base clamp assembly, lower arm, upper arm, VESA mount, tool clip, grommet plate, grommet screw, 3mm hex key, 6mm hex key, M4 x 12mm screws, M5 x 12mm screws, and washers. All necessary tools and hardware are provided for both C-clamp and grommet installation methods.
