Product Features
Technical Overview

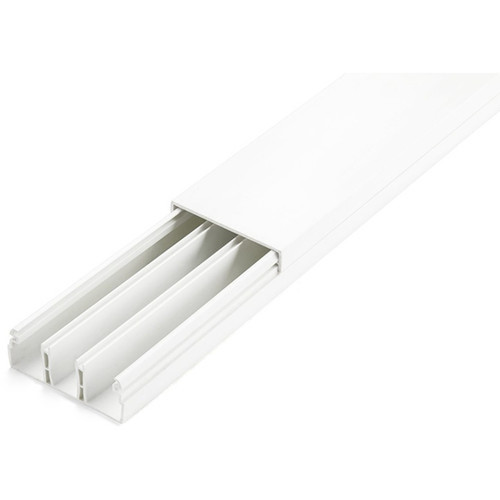

This cable management raceway measures 78 inches (6.5 feet) in length with a total width of 2 inches and height of 0.8 inches. The three internal channels are sized at 0.6 inches (left), 0.4 inches (center), and 0.6 inches (right) to accommodate various cable diameters and types. The raceway is manufactured from warp-proof, self-extinguishing PVC material with an 186°F (86°C) Vicat softening point.
The CBMCWD5020 meets multiple industry standards including UL/94V-0 rating for flame resistance and M1 Rating NF fire resistance. The product is TAA compliant and environmentally certified with RoHS and REACH compliance, ensuring it meets government and institutional procurement requirements.
This section brings together practical product details such as Cable Manager Type, Product Color, Product Material, Height, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This raceway system delivers professional-grade cable management with features designed for IT environments and commercial installations. The three-channel design allows for logical separation of different cable types, while the removable cover provides ongoing access without disrupting the entire installation.
Industrial Construction
Made from sturdy, warp-proof PVC with self-extinguishing properties and UL/94V-0 rating for enhanced safety in commercial environments.
- M1 Rating NF fire resistant
- 186°F Vicat softening point
- Warp-proof design maintains shape
Modular System Compatibility
Works with StarTech.com raceway accessories including couplers, elbows, end pieces, and T-connectors (sold separately) for creating custom routing configurations.
- Coupler: CBMCWD5020C
- Inside Elbow: CBMCWD5020I
- T Connector: CBMCWD5020T
Deployment / Use Cases
The CBMCWD5020 raceway is designed for surface-mount applications where cables need protection, organization, and concealment. Its low-profile design and white color make it suitable for office environments, while its industrial construction ensures reliability in server rooms and data centers.
Common deployment scenarios include running network cables along walls in office spaces, organizing power cords behind workstations, managing cables in server racks, and creating clean cable runs in retail environments. The raceway protects cables from physical damage while maintaining accessibility for maintenance and changes.
Office Cable Management
Route network and power cables along walls and baseboards while maintaining a professional appearance and protecting cables from damage.
Server Room Organization
Organize patch cables and power cords in data center environments with fire-resistant construction that meets commercial safety standards.
Physical Profile

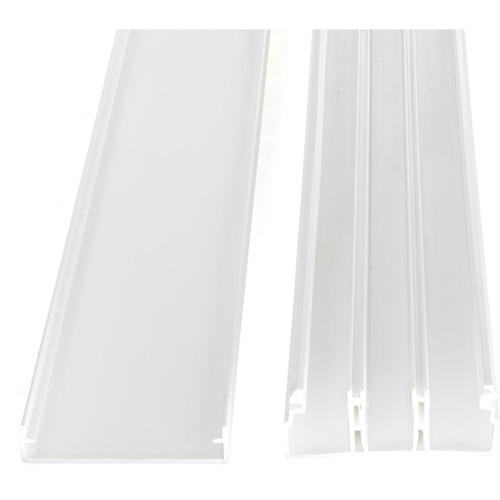

The raceway maintains a compact profile with dimensions of 2 inches wide by 0.8 inches high, providing ample internal space for multiple cables while minimizing visual impact. The white PVC construction blends with most office interiors, and the smooth surface allows for easy cleaning and maintenance. The raceway installs securely to surfaces using appropriate mounting hardware (not included) and accepts standard raceway accessories for creating turns, junctions, and extensions.
- Width
- 2" (50.80 mm)
- Height
- 0.8" (20.32 mm)
- Length
- 78" (1981.20 mm)
Highlights
- Three-channel design organizes multiple cable types separately
- 6.5-foot length provides ample coverage for cable runs
- White PVC construction with UL/94V-0 fire rating
- Removable cover for easy cable access and maintenance
- TAA compliant for government and institutional procurement
- RoHS and REACH environmental compliance
- Compatible with StarTech.com raceway accessories
- 2-year warranty with free 24/5 technical support
- Warp-proof, self-extinguishing PVC material
- M1 Rating NF fire resistant construction
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | CBMCWD5020 |
| Brand Name | StarTech.com |
| Product Name | Cable Management Raceway 78" |
| Product Type | Cable Routing |
| Product Information | |
| Cable Manager Type | Raceway |
| Physical Characteristics | |
| Product Color | White |
| Product Material | Polyvinyl Chloride (PVC) |
| Height | 0.8" (20.32 mm) |
| Width | 2" (50.80 mm) |
| Length | 78" (1981.20 mm) |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What are the dimensions of this cable management raceway?
The StarTech.com CBMCWD5020 raceway measures 78 inches (6.5 feet) in length, 2 inches in width, and 0.8 inches in height. The three internal channels measure 0.6 inches (left), 0.4 inches (center), and 0.6 inches (right) to accommodate different cable sizes and types.
Is this raceway fire resistant?
Yes, this raceway features industrial-strength fire resistance with UL/94V-0 rating and M1 Rating NF certification. The PVC material is self-extinguishing with a Vicat softening point of 186°F (86°C), making it suitable for commercial and office environments where fire safety is important.
What accessories are available for this raceway system?
StarTech.com offers compatible accessories including couplers (CBMCWD5020C), end pieces (CBMCWD5020E), inside elbows (CBMCWD5020I), lateral elbows (CBMCWD5020L), outside elbows (CBMCWD5020O), and T connectors (CBMCWD5020T). These accessories allow you to create custom routing configurations with turns, junctions, and extensions.
Is this product TAA compliant?
Yes, the CBMCWD5020 raceway is TAA compliant, making it suitable for government and institutional procurement where Trade Agreements Act compliance is required. The product is manufactured in Taiwan and meets all TAA requirements for eligible products.
What type of warranty does this raceway include?
StarTech.com backs this cable management raceway with a 2-year limited warranty. The warranty includes free 24/5 technical support, providing professional assistance for installation questions and product support throughout the warranty period.
Can this raceway be painted to match my wall color?
The raceway is made from white PVC material that can accept paint, but you should use paints compatible with PVC surfaces and ensure proper surface preparation. Painting may affect the fire-resistant properties, so consult local fire codes and StarTech.com technical support for specific guidance on modifications.
