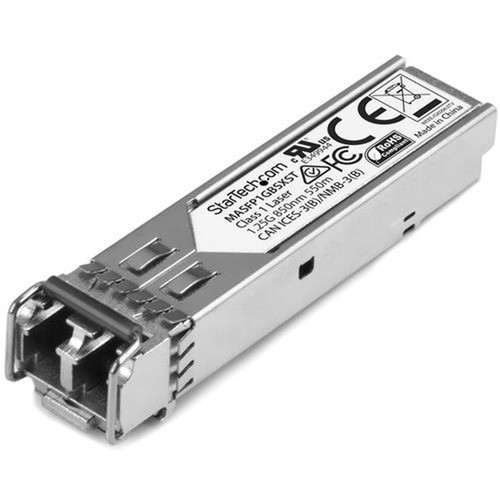

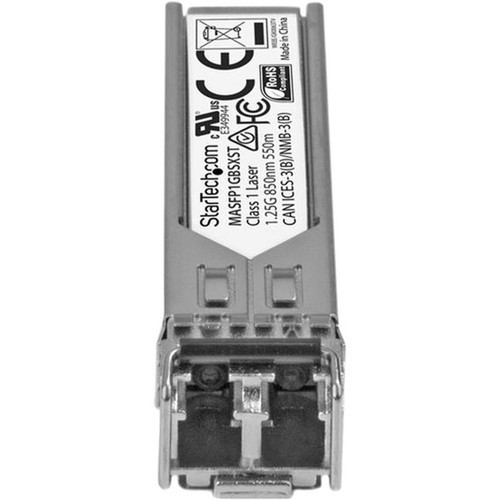

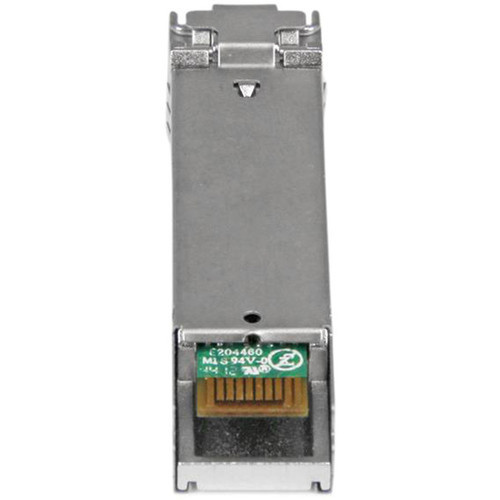

StarTech. com MASFP1GBSXST Cisco Meraki MA-SFP-1GB-SX Compatible SFP Module - 1000BASE-SX 1GbE Gigabit Ethernet - LC Multimode Fiber MMF Optic
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP module operates on the 1000BASE-SX standard, transmitting data at 850nm wavelength over multimode fiber optic cables. It features Digital Diagnostic Monitoring (DDM) capabilities, allowing network administrators to monitor real-time performance metrics such as temperature, voltage, and optical power through SNMP management tools. The module's hot-swappable design enables installation and replacement without powering down the host switch, minimizing network downtime during maintenance or upgrades.
The transceiver is built with industry-standard components that ensure reliable signal integrity and low bit error rates across its maximum supported distance of 550 meters. Its compact form factor fits standard SFP slots, while the LC connector provides secure, low-loss connections with commonly available multimode fiber patch cables.
Key Product Advantages
This transceiver module offers several distinct advantages for network deployments requiring fiber optic connectivity. Its compatibility with Cisco Meraki switches ensures seamless integration into existing Meraki environments without voiding OEM support agreements, while the lifetime warranty provides long-term reliability assurance.
Verified Compatibility
Extensively tested for interoperability with Cisco Meraki switches including MS225, MX400, MS250, MS350, and MX84 models, as well as other MSA-compliant networking equipment.
- Tested in Cisco routers and switches
- Works with uncoded module switches
Comprehensive Support
Backed by StarTech.com's technical support with access to Tech Advisors and a lifetime warranty that covers the module itself, independent of your equipment's support status.
- Lifetime warranty
- Technical support available
Deployment / Use Cases
This SFP transceiver is specifically designed for scenarios where Gigabit Ethernet connectivity needs to be extended over fiber optic cabling. Its 1000BASE-SX multimode operation makes it suitable for backbone connections between network switches within buildings or across campus environments where copper cabling distance limitations would be exceeded.
Common deployment scenarios include connecting floor distribution switches to core switches in enterprise networks, linking servers to top-of-rack switches in data centers, and extending network segments in educational or healthcare facilities. The module's compatibility with both Cisco Meraki and other MSA-compliant equipment makes it particularly valuable for mixed-vendor environments or when expanding existing network infrastructure with cost-effective third-party components.
Data Center Interconnects
Connect servers, storage arrays, and network switches within data center racks using multimode fiber infrastructure for high-speed, low-latency communication.
Campus Network Backbones
Extend network segments between buildings using existing multimode fiber runs, overcoming the 100-meter limitation of copper Ethernet cabling.
Physical Profile
The transceiver module features a compact, industry-standard SFP form factor measuring 0.50" (12.70 mm) in height, 0.50" (12.70 mm) in width, and 2.20" (55.88 mm) in depth, with an approximate weight of 0.50 oz (14.17 g). Its small footprint allows high-density deployment in network switches with multiple SFP slots, while the hot-swappable design facilitates easy installation and maintenance without specialized tools. The module is manufactured in China and complies with EU RoHS, REACH, and WEEE environmental standards, ensuring responsible material usage and end-of-life disposal considerations.
- Width
- 0.50" (12.70 mm)
- Depth
- 2.20" (55.88 mm)
- Height
- 0.50" (12.70 mm)
- Weight
- 0.50 oz (14.17 g)
Highlights
- 100% compatible with Cisco Meraki MA-SFP-1GB-SX and switches like MS225, MX400, MS250, MS350, MX84
- 1000BASE-SX 1 Gbps multimode fiber optic transceiver with LC connector
- Supports distances up to 550 meters (1804 feet) over multimode fiber
- Digital Diagnostic Monitoring (DDM) for real-time performance tracking via SNMP
- Hot-swappable design for installation without network downtime
- MSA compliant for interoperability with multiple switch brands
- Lifetime warranty backed by StarTech.com technical support
- Works with Ubiquiti, D-Link, Netgear, Supermicro, TP-Link switches accepting uncoded modules
- 850nm wavelength operation optimized for multimode fiber
- Environmentally compliant with RoHS 2, REACH, and WEEE directives
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MASFP1GBSXST |
| Brand Name | StarTech.com |
| Product Name | Cisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module - 1000BASE-SX |
| Product Type | SFP (mini-GBIC) |
| Packaged Quantity | 1 Each |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-SX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-SX |
| Physical Characteristics | |
| Form Factor | Hot-pluggable,Hot-swappable |
| Height | 0.50" (12.70 mm) |
| Width | 0.50" (12.70 mm) |
| Depth | 2.20" (55.88 mm) |
| Weight (Approximate) | 0.50 oz (14.17 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant Cisco Meraki Switches: MS225 MX400 MS250 MS350 MX84 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What Cisco Meraki switches is this SFP module compatible with?
This StarTech.com SFP transceiver is 100% compatible with Cisco Meraki switches including the MS225, MX400, MS250, MS350, and MX84 models. It has been specifically tested and verified to work seamlessly with these switches, ensuring reliable Gigabit Ethernet connectivity over multimode fiber without voiding your OEM support agreements. The module also works with other MSA-compliant networking equipment from various manufacturers.
What type of fiber and connectors does this SFP module use?
This transceiver uses multimode fiber optic cabling with LC duplex connectors. It operates on the 1000BASE-SX standard at 850nm wavelength, supporting distances up to 550 meters (approximately 1804 feet). The LC connector is industry-standard for fiber optic connections, providing secure, low-loss mating with commonly available multimode fiber patch cables in data center and enterprise network environments.
Does this SFP module support Digital Diagnostic Monitoring (DDM)?
Yes, this SFP transceiver includes Digital Diagnostic Monitoring (DDM) capabilities that allow network administrators to monitor real-time performance metrics. The DDM feature reports the transceiver's operational status, including temperature, voltage, bias current, and optical power levels, to most SNMP-based network management tools. This enables proactive monitoring and troubleshooting of fiber optic links for optimal network performance and reliability.
What is the maximum distance supported by this fiber optic transceiver?
This 1000BASE-SX SFP module supports distances up to 550 meters (approximately 1804 feet) over multimode fiber optic cabling. The actual achievable distance may vary depending on fiber quality, connector losses, and environmental factors, but the module is engineered to deliver reliable Gigabit Ethernet performance across this maximum specified range for typical enterprise and data center deployments.
Is this SFP module hot-swappable?
Yes, this transceiver module features a hot-swappable, hot-pluggable design that allows installation or replacement without powering down the host switch or router. This capability minimizes network downtime during maintenance, upgrades, or troubleshooting activities. The module can be inserted or removed from a live SFP slot while the networking equipment remains operational, following standard hot-swap procedures for SFP transceivers.
What warranty does this StarTech.com SFP transceiver include?
This SFP module comes with a lifetime warranty from StarTech.com that covers the transceiver itself for its entire operational life. The warranty is not tied to your equipment's support status, meaning the module remains covered even if your switch or router is no longer under manufacturer warranty. This lifetime coverage is backed by StarTech.com's technical support team, available to assist with installation and troubleshooting questions.
