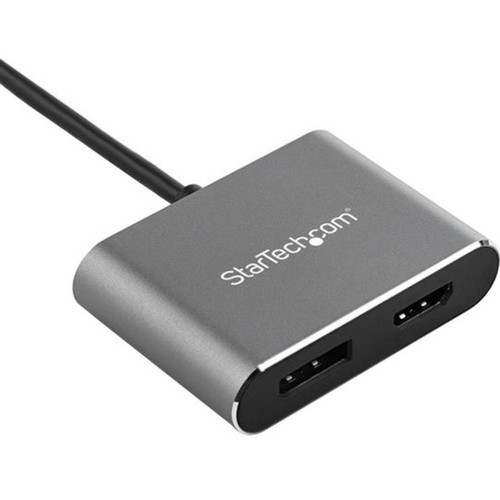

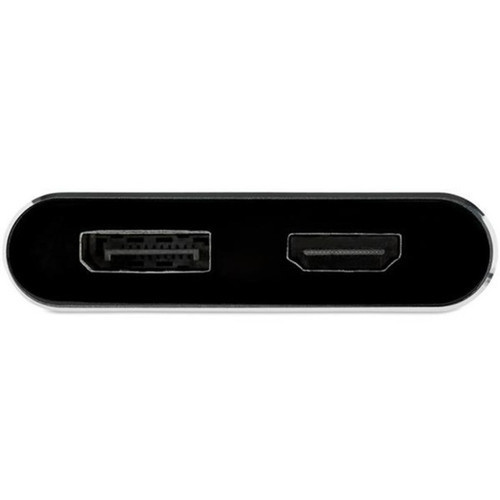

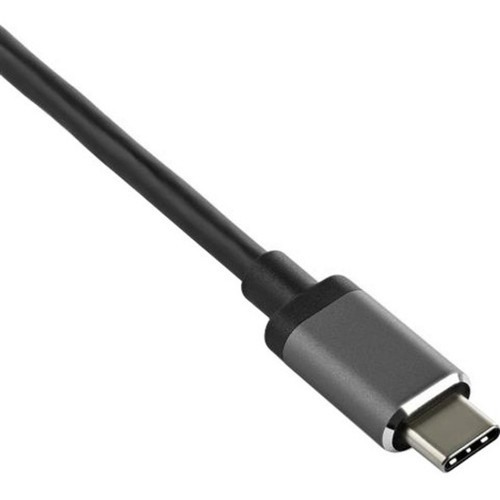

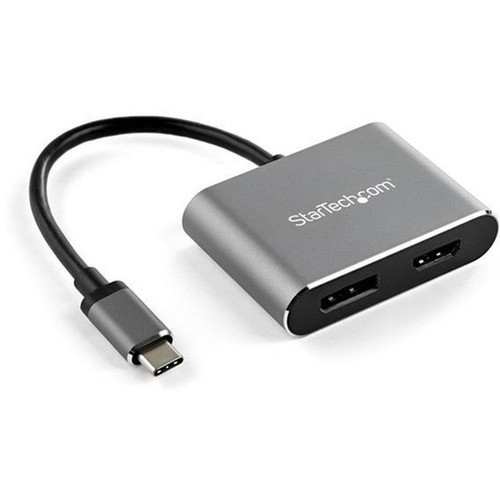

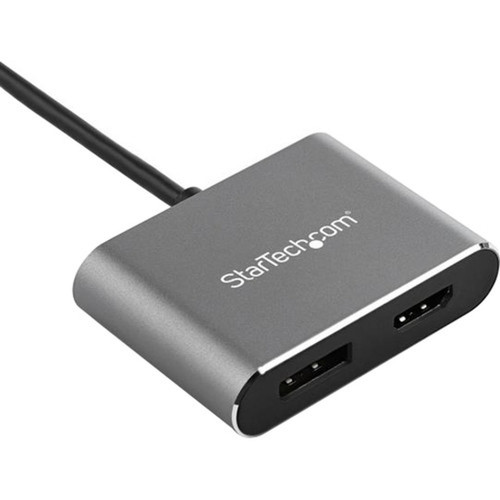

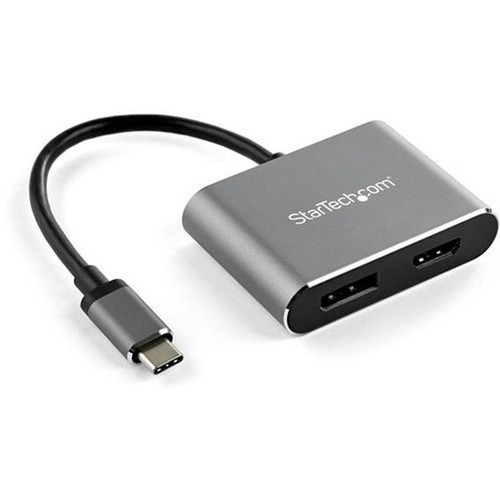

StarTech. com CDP2DPHD USB-C to HDMI 2. 0/DisplayPort 1. 2 Video Adapter - 4K 60Hz HDR - Space Gray Aluminum
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This adapter leverages USB-C DisplayPort Alternate Mode to transmit high-bandwidth video and audio signals. It outputs to either HDMI 2.0 or DisplayPort 1.2, both capable of 4K 60 Hz with High Bit Rate 2 (HBR2) support, ensuring smooth playback and crisp imagery. The active circuitry maintains signal integrity over extended cable runs, while HDCP 2.2 compliance allows seamless streaming of DRM-protected content from services like Netflix and Disney+.
Compatibility spans a wide range of devices, including Thunderbolt 3 and 4 ports, as well as standard USB-C ports that support DP Alt Mode. It works with hardware platforms such as Intel-based systems, Apple M1 and M2 chips, and AMD processors, covering most modern computing environments. The adapter has been rigorously tested with displays from leading brands like Dell, HP, LG, Samsung, and Sony to guarantee reliable performance.
Key Product Advantages
The CDP2DPHD stands out with its dual-output flexibility, allowing users to choose between HDMI 2.0 and DisplayPort 1.2 based on their display's available inputs. This adaptability makes it a future-proof solution for mixed monitor setups, conference rooms, or home offices where connection types may vary. The aluminum construction not only enhances durability but also aids in heat dissipation during prolonged use.
Universal Compatibility
Works with Windows, macOS, ChromeOS, Linux, iPadOS, and Android systems, plus hardware from Apple, Intel, and AMD. No additional drivers required for most operating systems.
- Driverless on Windows/macOS/ChromeOS
- Supports Apple M1/M2, Intel, AMD
- Thunderbolt 3/4 and USB-C DP Alt Mode
High-Fidelity Output
Delivers 4K 60 Hz video with HDR for enhanced contrast and color, alongside 7.1-channel audio for immersive sound. HDCP 2.2 ensures compatibility with premium streaming content.
- 4K 60 Hz with HDR
- 7.1ch Audio Support
- HDCP 2.2 for Protected Content
Deployment / Use Cases
This adapter is perfectly suited for professionals who need to connect USB-C laptops to external monitors, projectors, or TVs in various environments. In office settings, it enables seamless presentations on HDMI-equipped displays in boardrooms or on multi-monitor workstations. For remote workers, it provides a reliable way to extend or mirror screens to a home office monitor with either HDMI or DisplayPort connectivity.
Its portable design makes it an excellent travel companion for business trips, allowing quick setup with hotel TVs or conference room displays. Educators and trainers can use it to connect devices to projectors for lectures, while creative professionals benefit from the 4K HDR output for detailed photo and video editing. The adapter also supports legacy 1080p and HDMI 1.4 displays, ensuring backward compatibility for older equipment.
Physical Profile
Encased in a lightweight aluminum body, the adapter measures 8.10 inches in length, 2.40 inches in width, and 0.60 inches in height, with a weight of just 1.70 ounces. This slim, compact form factor easily fits into laptop bags or pockets, making it highly portable. The Space Gray finish offers a professional look that matches modern computing devices, while the aluminum material provides durability and efficient thermal management during extended use.
- Width
- 2.40" (60.96 mm)
- Height
- 0.60" (15.24 mm)
- Weight
- 1.70 oz (48.19 g)
- Length
- 8.10" (205.74 mm)
Highlights
- Converts USB-C (DP Alt Mode) to HDMI 2.0 or DisplayPort 1.2 output
- Supports 4K UHD resolution at 60 Hz with HDR for vibrant visuals
- HDCP 2.2 compliant for streaming protected content like Netflix
- Delivers 7.1-channel audio alongside video for a complete experience
- Works with Thunderbolt 3/4 and USB-C ports supporting DP Alt Mode
- Compatible with Windows, macOS, ChromeOS, Linux, iPadOS, Android
- Driverless plug-and-play operation on most operating systems
- Durable aluminum construction in Space Gray for portability and style
- Tested with major display brands including Dell, HP, LG, Samsung
- Backed by a 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | CDP2DPHD |
| Brand Name | StarTech.com |
| Product Name | DisplayPort/HDMI/USB-C Audio/Video Adapter |
| Packaged Quantity | 1 Each |
| Product Type | Video Adapter |
| Technical Information | |
| Adapter Type | DisplayPort/HDMI/USB-C |
| Connector Type on First End | USB Type C - Male |
| Connector on First End Details | 1 x Type C USB Male |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video - Female,DisplayPort 1.2 Digital Audio/Video - Female |
| Connector on Second End Details | 1 x HDMI 2.0 Digital Audio/Video Female,1 x DisplayPort 1.2 Digital Audio/Video Female |
| Maximum Resolution Supported | 3840 x 2160 |
| Features | HDCP 2.2,Active |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Space Gray |
| Product Material | Aluminum |
| Height | 0.60" (15.24 mm) |
| Width | 2.40" (60.96 mm) |
| Length | 8.10" (205.74 mm) |
| Weight (Approximate) | 1.70 oz (48.19 g) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What devices are compatible with this USB-C video adapter?
The adapter is compatible with laptops, tablets, and desktops that have a USB-C port supporting DisplayPort Alternate Mode, including Thunderbolt 3 and 4 ports. It works with hardware from Apple (M1/M2 chips), Intel, and AMD, and supports operating systems like Windows, macOS, ChromeOS, Linux, iPadOS, and Android. Ensure your host device supports DP Alt Mode by checking with the manufacturer.
Does this adapter support 4K resolution and HDR?
Yes, it supports 4K UHD resolution at 3840 x 2160 with a 60 Hz refresh rate and HDR (High Dynamic Range) for enhanced color and contrast. This makes it suitable for high-definition video playback, gaming, and professional creative work where visual fidelity is important.
Can I use both HDMI and DisplayPort outputs simultaneously?
No, this adapter provides a choice between HDMI 2.0 and DisplayPort 1.2 outputs, but only one can be used at a time. It is a 2-in-1 adapter, meaning you select either HDMI or DisplayPort based on your display's input, not a dual-output hub for simultaneous connections.
Is HDCP 2.2 supported for streaming services?
Yes, the adapter is HDCP 2.2 compliant, allowing you to stream protected content from services like Netflix, Disney+, and Hulu in 4K without issues. This ensures compatibility with digital rights management for premium video playback.
Does this adapter require drivers or software installation?
In most cases, no drivers are needed. It offers driverless plug-and-play functionality on Windows, macOS, ChromeOS, iPadOS, and Android. Some Linux distributions may require minimal configuration, but generally, it works out of the box for seamless setup.
What is the warranty period for this StarTech.com adapter?
StarTech.com provides a 3-year limited warranty for this adapter, covering defects in materials and workmanship. This warranty offers long-term peace of mind and reflects the product's durability and reliability in professional and personal use scenarios.
What resolution or display format is specified?
It features a display specification of 3840 x 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
