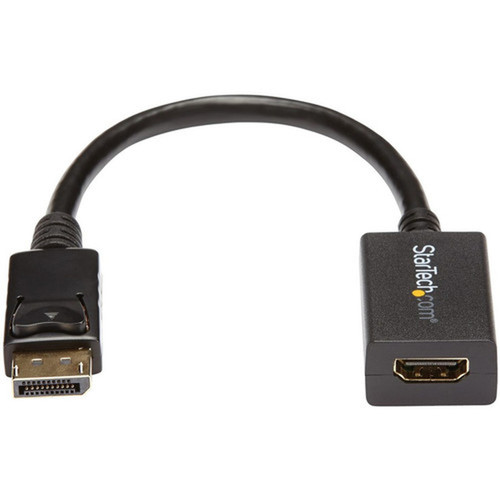

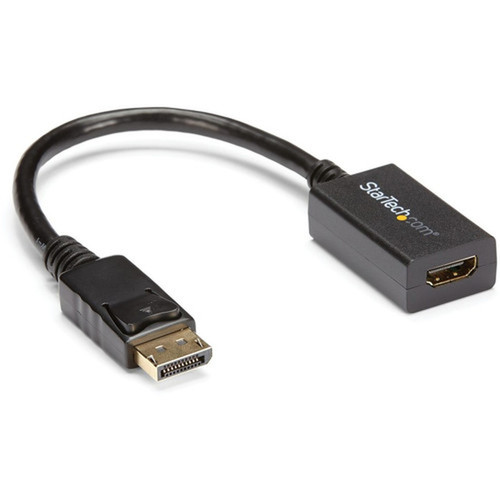

StarTech. com DP2HDMI2 DisplayPort to HDMI Adapter - Passive - Latching - 1080p 1920 x 1200 - HDCP 1. 4 - 8in Cable - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This adapter leverages DisplayPort 1.2 technology on the input side, connecting via a 20-pin male connector, and outputs to a standard 19-pin HDMI female port. It supports HDCP 1.4 content protection for encrypted video playback, ensuring compatibility with protected media from streaming services and Blu-ray discs.
The passive design means no external power or active signal conversion is needed, relying on the source device's DP++ capability to transmit HDMI-compatible signals. This results in a plug-and-play experience with no software or driver installation required, working across Windows, macOS, Linux, and other operating systems independently.
This section brings together practical product details such as Adapter Type, Connector Type on First End, Connector on First End Details, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This adapter stands out for its reliability and ease of use in professional and personal computing environments. The latching DisplayPort connector provides a secure physical connection that reduces downtime from accidental cable pulls, which is critical in active workspaces or when equipment is frequently moved.
Tested Compatibility
Extensively tested with DP++ sources and HDMI cables up to 35 feet in length, ensuring stable signal transmission over extended distances without signal degradation.
- Works with AMD/NVIDIA GPUs
- Supports workstations and laptops
- Compatible with docking stations
Portable Design
The compact form factor and lightweight construction make it easy to carry between home and office, ideal for mobile professionals who need consistent display connectivity across multiple locations.
- Small footprint
- Lightweight at 1.10 oz
- Easy to store and transport
Deployment / Use Cases
This adapter is versatile for various scenarios where DisplayPort to HDMI conversion is needed. In office environments, it enables users to connect modern laptops or desktops to HDMI-equipped conference room projectors or large format monitors for presentations and collaborative work.
For home offices or gaming setups, it allows adding a secondary HDMI monitor to a DisplayPort-equipped computer, expanding screen real estate for multitasking or immersive gaming. It also serves as a reliable solution for connecting media PCs to HDTVs for streaming content or playing videos with full audio support.
Business & Education
Ideal for connecting DP-enabled laptops to HDMI displays in classrooms, training rooms, or boardrooms, supporting clear video and audio for instructional content and meetings.
Home Entertainment
Use to link a computer to a living room TV for movie nights or streaming, leveraging the 1080p resolution and multi-channel audio for an enhanced viewing experience.
Physical Profile
The adapter features a sleek black design that blends with most office and home electronics. Its dimensions are compact, with a height of 0.55 inches (14 mm), width of 0.98 inches (25 mm), and a total length of 10.43 inches (265 mm) including the attached cable. Weighing approximately 1.10 ounces (31.18 g), it adds minimal bulk to your setup. The construction complies with environmental standards, including EU RoHS, REACH, and WEEE directives, and is manufactured in Vietnam.
- Width
- 0.98" (25 mm)
- Height
- 0.55" (14 mm)
- Weight
- 1.10 oz (31.18 g)
- Length
- 10.43" (265 mm)
Highlights
- Connects DisplayPort 1.2 sources to HDMI displays for 1080p video at 1920x1200 resolution.
- Supports 7.1 channel audio and HDCP 1.4 content protection for full multimedia playback.
- Passive converter requires DP++ source; compatible with workstations, desktops, laptops, and docks.

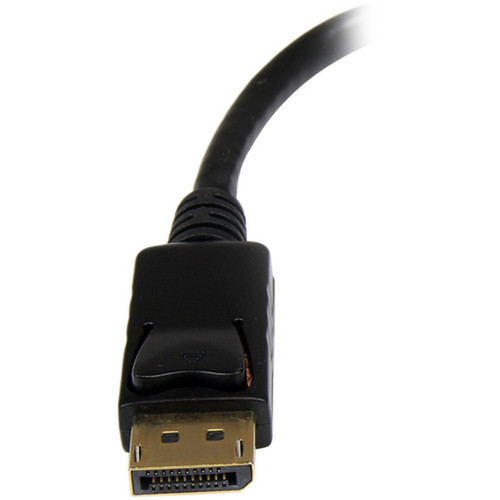

- Latching DisplayPort connector prevents accidental disconnection for reliable operation.
- Includes an 8-inch attached cable for flexible placement and easy connection.
- OS independent with no drivers needed; works with Windows, macOS, Linux, and more.
- Tested with HDMI cables up to 35 feet for extended reach without signal loss.
- Compact, portable design in black; lightweight at 1.10 oz for easy transport.
- Backed by a 3-year limited warranty for long-term reliability.
- Environmentally friendly with compliance to RoHS 2, REACH, and WEEE standards.
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP2HDMI2 |
| Brand Name | StarTech.com |
| Product Name | - DisplayPort to HDMI Converter |
| Packaged Quantity | 1 Each |
| Product Type | A/V Adapter |
| Technical Information | |
| Adapter Type | DisplayPort/HDMI |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on First End Details | 1 x 20-Pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI Digital Audio/Video - Female |
| Connector on Second End Details | 1 x 19-pin HDMI Digital Audio/Video - Female |
| Maximum Resolution Supported | 1920 x 1200 |
| Features | Passive,Latching Connector,HDCP 1.4 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 0.55" (14 mm) |
| Width | 0.98" (25 mm) |
| Length | 10.43" (265 mm) |
| Weight (Approximate) | 1.10 oz (31.18 g) |
| Miscellaneous | |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What resolution does this DisplayPort to HDMI adapter support?
This adapter supports a maximum resolution of 1920 x 1200, which is commonly referred to as 1080p or Full HD. It delivers clear, high-definition video suitable for presentations, multimedia content, and general computing tasks on HDMI monitors, TVs, or projectors.
Does this adapter require a power source or external drivers?
No, it is a passive converter that does not need external power or driver installation. It operates independently of the operating system, making it a plug-and-play solution for Windows, macOS, Linux, and other systems, as long as the source device supports DP++ (Dual-Mode DisplayPort).
What is the purpose of the latching connector on this adapter?
The latching DisplayPort connector securely locks into the host port to prevent accidental disconnections. This feature is especially useful in dynamic environments where cables might be bumped or moved, ensuring a stable connection for uninterrupted video and audio transmission during critical presentations or extended use.
Can I use this adapter with a laptop that has a DisplayPort output?
Yes, this adapter is compatible with laptops that have a DisplayPort 1.2 output and support DP++ mode. It has been tested with various laptops, small form factor computers, and docking stations, making it ideal for mobile professionals who need to connect to HDMI displays on the go.
What audio capabilities does this adapter provide?
The adapter supports 7.1 channel audio, allowing for immersive sound from compatible sources. This means you can enjoy multi-channel audio from movies, games, or presentations when connected to an HDMI display with audio output, without needing a separate audio cable.
How long is the cable attached to this adapter, and can I use longer HDMI cables?
The adapter includes an 8-inch (21 cm) attached cable for convenient connection. It has been tested to work reliably with HDMI cables up to 35 feet in length, so you can extend the reach to your display without signal degradation, provided you use quality HDMI cables.
What resolution or display format is specified?
It features a display specification of 1920 x 1200, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
