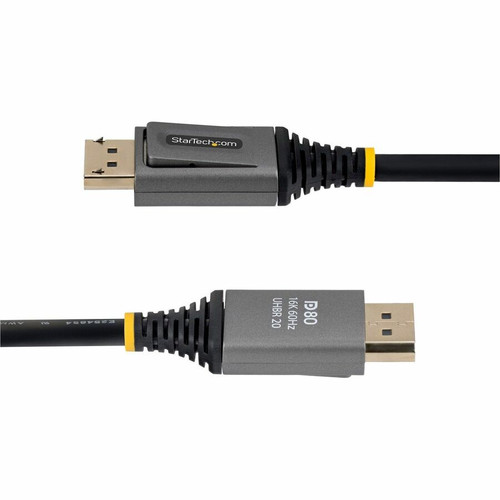

StarTech. com DP21V-1M-DP80-CABLE 1m DisplayPort 2. 1 Cable – VESA Certified DP80 - 80Gbps - 10K/8K 60Hz - 16K 60Hz/8K 240Hz w/DSC 1. 2a - HDR - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This DisplayPort 2.1 cable supports resolutions up to 10240 x 4320 (10K) at 60 Hz and 7680 x 4320 (8K) at 60 Hz without compression. With DSC 1.2a, it can drive 15360 x 8640 (16K) at 60 Hz or 7680 x 4320 (8K) at 240 Hz, making it suitable for next-generation displays and multi-monitor setups.
The cable features Multi-Stream Transport (MST) for daisy-chaining multiple displays, Variable Refresh Rate (VRR) for tear-free gaming, and HDCP 2.3 support for protected content. It also supports HDR10 for enhanced color and contrast, and 32-channel/7.1 surround audio. The latching connectors provide a secure connection, and the Quick ID labels on each connector allow instant identification of DP80 specs.
Key Product Advantages
This cable is VESA-certified for guaranteed DP80 performance, ensuring full bandwidth and compatibility with high-end GPUs, external GPUs, and USB-C to DP adapters. The braided TPE jacket offers flexibility and durability for tight bends, while the aluminum mylar foil shielding protects against EMI interference.
Its passive design works with long cable runs up to 1 meter without signal degradation, and the latching connectors prevent accidental disconnection. The cable is also eco-friendly, complying with REACH and WEEE directives.
Deployment / Use Cases
Ideal for high-resolution workflows such as video editing, 3D rendering, medical imaging, and digital signage, this cable connects a workstation or external GPU to a 10K/8K monitor or projector. It also supports daisy-chaining multiple monitors via MST for increased productivity.
Compatible with Apple MacBook and MacBook Pro devices when used with a USB-C to DisplayPort adapter, this cable is a suitable choice for creative professionals using M-series laptops. It also works with PC workstations, hubs, and docking stations.
High-Resolution Workstations
Connect to 10K/8K displays for uncompressed video and 10-bit color depth.
- 10K 60 Hz
- 8K 60 Hz
- HDR10 support
Multi-Monitor Setups
Use MST to daisy-chain multiple DP monitors from a single port.
- Up to 4 displays
- Simplified cable management
Physical Profile
This 1-meter (3.3 ft) cable has a black TPE jacket with an outer diameter of 5.08 mm and weighs approximately 71 g. The connectors are nickel-plated and feature a latching mechanism for secure attachment. The flexible jacket withstands tight bends, making it suitable for cable management in racks and desks.
- Weight
- 2.50 oz (70.87 g)
- Length
- 3.3 ft (1 m)
Highlights
- VESA Certified DP80 cable with 80 Gbps bandwidth for uncompressed 10K/8K 60 Hz
- Supports 16K 60 Hz / 8K 240 Hz with Display Stream Compression 1.2a
- Nickel-plated latching DisplayPort 2.1 male-to-male connectors
- Aluminum Mylar foil shielding for EMI protection
- Flexible TPE jacket with VW-1 flame rating
- Supports MST, VRR, HDCP 2.3, HDR10, and 32-channel audio
- Quick ID labels on connectors for easy spec identification
- Backward compatible with DisplayPort 1.4 and earlier standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP21V-1M-DP80-CABLE |
| Brand Name | StarTech.com |
| Product Name | 1m DisplayPort 2.1 Cable |
| Packaged Quantity | 1 |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | DisplayPort |
| Cable Length | 3.3 ft (1 m) |
| Outer Diameter | 0.20" (5.08 mm) |
| Connector Type on First End | DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1x Displayport 2.1 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1x Displayport 2.1 Digital Audio/Video - Male |
| Connector Plating | Nickel |
| Shielding | Yes |
| Jacket Type | VW-1 |
| Device Supported | Audio/Video Device,Monitor,Computer,Hub,Workstation,External GPU,Display,Notebook,MacBook,MacBook Pro |
| Data Transfer Rate | 80 Gbit/s |
| Supported Resolution | 10240 x 4320,7680 x 4320,4096 x 2160,15360 x 8640 |
| Features | Multi-Stream Transport (MST) Support,Variable Refresh Rate (VRR),Flexible,Strain Relief,Latching Connector,Display Stream Compression (DSC),HDCP 2.3,HDR10 Support,Display Stream Compression (DSC) 1.2a,Braided,EMI Protection,Durable,Passive |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Shielding Material | Aluminum Mylar Foil |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Weight (Approximate) | 2.50 oz (70.87 g) |
| Miscellaneous | |
| Brand Compatibility | Apple |
| Compatibility | Apple - MacBook / MacBook Pro |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What is the maximum resolution and refresh rate supported by this cable?
This cable supports uncompressed 10K (10240×4320) at 60 Hz and 8K (7680×4320) at 60 Hz. With Display Stream Compression 1.2a, it can achieve 16K (15360×8640) at 60 Hz and 8K at 240 Hz, providing future-proof performance for high-resolution displays.
Is this cable VESA certified?
Yes, this cable is VESA Certified DP80, meaning it has been tested and guaranteed to deliver the full 80 Gbps bandwidth required for UHBR20 link rates. Certification ensures reliable performance with DP 2.1 displays and sources.
Does this cable support HDR and HDCP 2.3?
Yes, it supports HDR10 for enhanced color and contrast, as well as HDCP 2.3 for secure playback of protected 4K and 8K content. It also supports 32-channel and 7.1 surround audio for immersive sound.
Can I use this cable to daisy-chain multiple monitors?
Yes, the cable supports Multi-Stream Transport (MST), allowing you to daisy-chain multiple DisplayPort monitors from a single output as long as your source and displays support MST. This is ideal for multi-monitor productivity setups.
Is this cable compatible with Apple MacBook/MacBook Pro?
Yes, this cable is compatible with Apple MacBook and MacBook Pro models when used with a USB-C to DisplayPort adapter. It supports high-resolution output for creative workflows on M-series and Intel-based MacBooks.
What is the jacket material and is it durable?
The cable features a Thermoplastic Elastomer (TPE) jacket that is flexible, durable, and designed to withstand tight bends without damage. It is also VW-1 rated for flame resistance, making it suitable for use in professional and commercial environments.
