Product Features
Technical Overview
This cable supports the DisplayPort 2.1 standard with UHBR20 link rate, delivering a full 80 Gbps of bandwidth. It can drive uncompressed 10K (10240 x 4320) at 60Hz, 8K (7680 x 4320) at 60Hz, and 4K at 240Hz without compression. With DSC 1.2a, it can achieve 16K at 60Hz or 8K at 240Hz, making it future-proof for the highest-resolution displays.
The cable supports Variable Refresh Rate (VRR), HDR10, HDCP 2.3, and Multi-Stream Transport (MST) for daisy-chaining multiple displays. It also supports 32-channel audio and 7.1 surround sound for immersive audio experiences.
Key Product Advantages
The StarTech DP21V-6F-DP80-CABLE offers several key advantages for professionals requiring uncompromised video performance. Its VESA certification guarantees compliance with the DP80 standard, ensuring full bandwidth and resolution support. The Quick ID connectors have specs printed directly on them, making identification and troubleshooting effortless.
High-Resolution Readiness
Supports uncompressed 10K 60Hz and up to 16K 60Hz with DSC, providing headroom for next-generation displays and content creation.
Durable Construction
Flexible TPE jacket with VW-1 flame rating, aluminum mylar foil shielding, and nickel-plated connectors ensure long-term reliability and signal integrity.
Broad Compatibility
Works with a wide range of devices including monitors, computers, workstations, external GPUs, and Apple M-series MacBooks via USB-C to DP adapters.
Deployment / Use Cases
This DisplayPort 2.1 cable is designed for high-resolution video workflows in professional AV, gaming, content creation, and enterprise environments. It is ideal for connecting ultra-high-resolution monitors (8K/10K) to workstations or GPUs that require maximum bandwidth for color-critical tasks, video editing, 3D rendering, or simulation.
For IT managers and system integrators, this cable simplifies deployment in multi-monitor setups using MST daisy-chaining. Its compatibility with Apple M-series MacBooks makes it a natural fit for creative studios using USB-C to DP adapters. The latching connectors ensure a secure connection in rack-mounted or high-vibration environments.
Professional AV & Broadcast
Connect 8K/10K displays for video production, live event streaming, and digital signage where uncompressed video quality is paramount.
High-Performance Workstations
Ideal for CAD, 3D modeling, scientific visualization, and medical imaging applications requiring high refresh rates and color accuracy.
Physical Profile
The cable has an outer diameter of 0.30 inches (7.62 mm) and weighs approximately 7.60 oz (215.46 g). The black TPE jacket is flexible and durable, designed to withstand tight bends without performance degradation. The connectors feature a latching design with nickel plating, ensuring a secure connection and corrosion resistance. The cable is RoHS and WEEE compliant.
- Weight
- 7.60 oz (215.46 g)
- Length
- 6 ft (1.83 m)
Highlights
- VESA Certified DP80 cable with 80 Gbps bandwidth for uncompressed 10K 60Hz video.
- Supports up to 16K 60Hz or 8K 240Hz with DSC 1.2a.

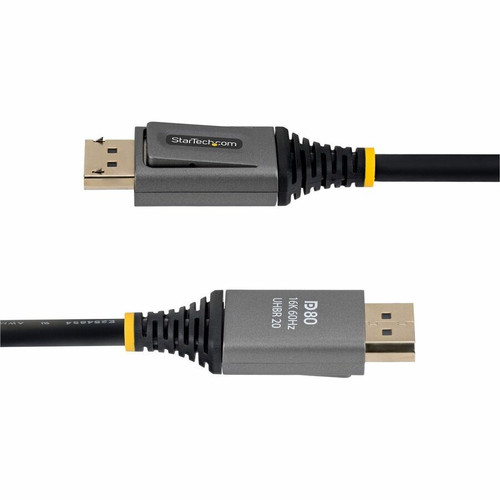

- DisplayPort 2.1 male to male connectors with latching design and nickel plating.
- Flexible TPE jacket with VW-1 flame rating and aluminum mylar foil shielding.
- Supports HDR10, HDCP 2.3, VRR, and MST for multi-monitor setups.
- Compatible with Apple M-series Pro/Max MacBooks via USB-C to DP adapters.
- Quick ID connectors with printed specs for easy identification.
- Backed by StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP21V-6F-DP80-CABLE |
| Brand Name | StarTech.com |
| Product Name | 6ft DisplayPort 2.1 Cable |
| Packaged Quantity | 1 |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | DisplayPort |
| Cable Length | 6 ft (1.83 m) |
| Outer Diameter | 0.30" (7.62 mm) |
| Connector Type on First End | DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Plating | Nickel |
| Shielding | Yes |
| Jacket Type | VW-1 |
| Device Supported | Audio/Video Device,Monitor,Computer,Hub,Workstation,External GPU,Display,Notebook,MacBook |
| Data Transfer Rate | 80 Gbit/s |
| Supported Resolution | 7680 x 4320,3840 x 2160,10240 x 4320 |
| Features | Display Stream Compression (DSC) 1.2a,4K UHD,Variable Refresh Rate (VRR),Flexible,Strain Relief,Latching Connector,Display Stream Compression (DSC),HDCP 2.3,HDR10 Support,Multi-Stream Transport (MST) Support,Braided,EMI Protection,Durable,Passive |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | ABS |
| Shielding Material | Aluminum Mylar,Aluminum Mylar Foil |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Weight (Approximate) | 7.60 oz (215.46 g) |
| Miscellaneous | |
| Brand Compatibility | Apple |
| Compatibility | Apple M-series Pro/Max MacBooks |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What is the maximum resolution supported by this cable without compression?
Without compression, this VESA Certified DP80 cable supports up to 10K (10240 x 4320) at 60Hz, as well as 8K at 60Hz and 4K at 240Hz. The full 80 Gbps bandwidth of DisplayPort 2.1 enables these high resolutions natively.
Does this cable support Display Stream Compression (DSC)?
Yes, it supports DSC 1.2a. With DSC, the cable can achieve even higher resolutions: up to 16K at 60Hz or 8K at 240Hz, making it suitable for future high-resolution displays and content creation.
Is this cable compatible with Apple MacBooks?
Yes, it is compatible with Apple M-series Pro/Max MacBooks when used with a USB-C to DisplayPort adapter. The cable also works with other devices such as monitors, computers, workstations, external GPUs, and more.
What type of shielding does this cable have?
The cable features aluminum mylar foil shielding to protect against electromagnetic interference (EMI), ensuring reliable signal transmission in noise-prone environments. The jacket is made of flexible TPE with a VW-1 flame rating.
Can this cable be used for multi-monitor setups?
Yes, the cable supports Multi-Stream Transport (MST), allowing you to daisy-chain multiple DisplayPort monitors from a single output, provided your graphics card supports MST. This simplifies cable management in multi-monitor configurations.
What audio formats does this cable support?
The cable supports up to 32-channel audio and 7.1 surround sound, delivering immersive audio quality alongside high-resolution video. It also supports HDR10 and HDCP 2.3 for protected content.
