StarTech. com ET91000SM10 Gigabit Ethernet Copper-to-Fiber Media Converter - Single-Mode LC - 10 km - 1000Base-T/LX
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

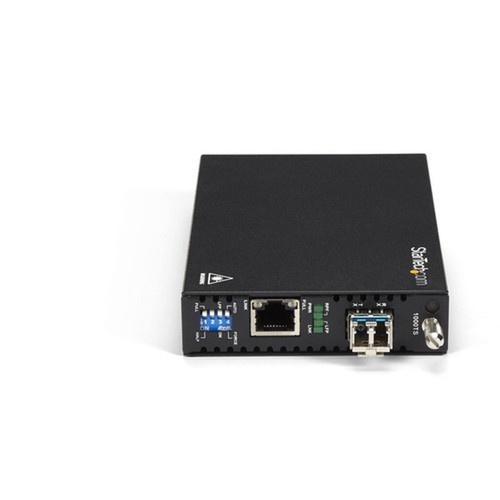

This media converter provides a straightforward two-port interface: one RJ-45 port for copper Ethernet (1000Base-T) and one LC duplex port for single-mode fiber (1000Base-LX). It operates at a wavelength of 1310 nm, which is standard for long-distance single-mode fiber applications. The converter supports full and half duplex operation, Jumbo Frames up to 9.6K, and is compliant with IEEE 802.3ab (1000Base-T) and IEEE 802.3z (1000Base-LX) standards, ensuring interoperability with existing Gigabit network equipment.
Power is supplied via an included universal AC adapter (compatible with NA, EU, UK, and AU outlets), which connects using a Type M plug. The converter's compact dimensions—0.90" height, 3.50" width, and 6.40" depth—allow for flexible placement on a desktop or mounting in a standard 19-inch rack using optional brackets. Its low power draw of 19.20 W contributes to energy-efficient operation in always-on network deployments.
Key Product Advantages
The ET91000SM10 media converter extends network reach far beyond the 100-meter limit of standard copper Ethernet, enabling cost-effective fiber connectivity without replacing entire network infrastructures. Its integrated SFP transceiver reduces deployment complexity and cost, while features like Link Fault Passthrough and Auto Laser Shutdown enhance network reliability and safety.
Long-Distance Performance
Converts Gigabit Ethernet to single-mode fiber, supporting distances up to 10 km with minimal signal loss, ideal for connecting separate buildings or remote network nodes.
- Eliminates copper distance limitations
- Maintains full Gigabit throughput
- Reduces electromagnetic interference risks
Enterprise-Grade Durability
Constructed with a rugged steel enclosure and designed for continuous operation in demanding environments, backed by a 2-year warranty and lifetime technical support.
- Withstands harsh conditions
- Wide operating temperature range
- Professional IT support included
Deployment / Use Cases
This media converter is ideal for scenarios where extending Ethernet over fiber is necessary to overcome distance, interference, or security constraints. It seamlessly integrates into existing networks, providing a bridge between copper and fiber segments without requiring changes to end devices or network switches.

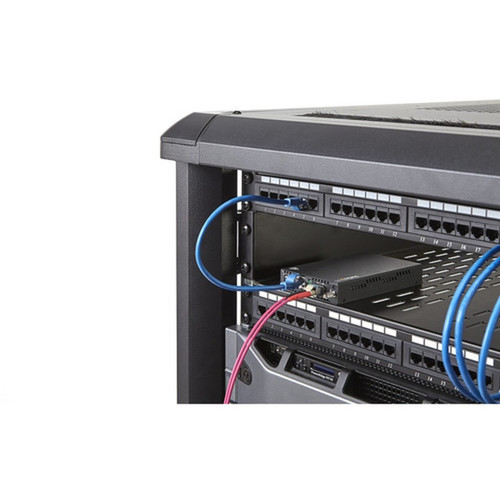

Common applications include connecting remote offices or data centers across a campus, linking security cameras or access control systems over long distances, integrating fiber backbones into copper-based LANs, and extending network connections in industrial environments where electrical noise is a concern. The rack-mountable design makes it suitable for installation in network closets, server racks, or telecom enclosures, while the standalone form factor allows for temporary or desktop deployments.
Campus Network Extension
Connect buildings across a university, corporate park, or hospital campus using existing single-mode fiber infrastructure, maintaining high-speed connectivity for VoIP, video surveillance, and data transfers.
Industrial Networking
Deploy in manufacturing plants or outdoor installations where fiber's immunity to electromagnetic interference ensures reliable network performance in electrically noisy environments.
Physical Profile

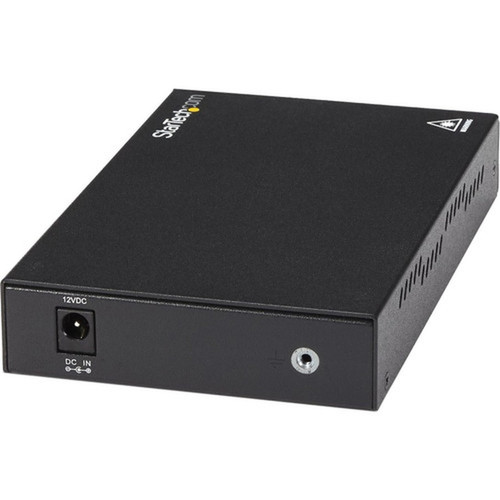

The converter features a compact, low-profile design with a height of 0.90 inches (22.86 mm), width of 3.50 inches (88.90 mm), and depth of 6.40 inches (162.56 mm), weighing approximately 14.50 ounces (411.07 g). Its steel housing provides durability and shielding, while the form factor supports both desktop use and rack mounting with optional accessories. The small footprint allows for dense installations in rack environments or discreet placement in network cabinets.
- Width
- 3.50" (88.90 mm)
- Depth
- 6.40" (162.56 mm)
- Height
- 0.90" (22.86 mm)
- Weight
- 14.50 oz (411.07 g)
- Length
- 1310 nm
What's in the Box
The package includes all necessary components for immediate deployment:
Highlights
- Converts Gigabit Ethernet copper to single-mode LC fiber for distances up to 10 km
- Includes integrated SFP transceiver (1310 nm wavelength) for immediate fiber connectivity
- Supports 1000Base-T and 1000Base-LX protocols with full Gigabit performance
- Features Link Fault Passthrough, Auto Laser Shutdown, VLAN tagging, and Auto MDIX
- Rugged steel housing with operating range of 0°C to 50°C for harsh environments
- Rack-mountable or standalone form factor with compact dimensions
- Powered by universal AC adapter (Type M plug) with low 19.20 W consumption
- Backed by 2-year warranty and free lifetime 24/5 technical support
- TAA compliant and environmentally friendly
- Supports Jumbo Frames up to 9.6K for efficient data transmission
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ET91000SM10 |
| Brand Name | StarTech.com |
| Product Name | Gigabit Ethernet Copper-to-Fiber Media Converter - SM LC - 10 km |
| Packaged Quantity | 1 Each |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of LC Ports | 1 |
| LC Port Type | Duplex |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-LX |
| Power Description | |
| Power Source | AC Adapter |
| Power Consumption | 19.20 W |
| Plug/Connector Type | Type M |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Standalone |
| Height | 0.90" (22.86 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 6.40" (162.56 mm) |
| Weight (Approximate) | 14.50 oz (411.07 g) |
| Miscellaneous | |
| Package Contents | Gigabit Ethernet Copper-to-Fiber Media Converter - SM LC - 10 km 1 x Universal Power Adapter (NA/EU/UK/AU) 1 x instruction Manual |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What does this media converter do?
This converter transforms standard Gigabit Ethernet signals from copper cabling (using an RJ-45 port) to single-mode fiber optic signals (using an LC port). It allows network connections to extend up to 10 kilometers, far beyond the 100-meter limit of copper Ethernet, while maintaining full Gigabit speed and reliability.
What type of fiber cable is required?
The converter requires single-mode fiber optic cable with LC duplex connectors. It operates at a 1310 nm wavelength, which is standard for long-distance single-mode applications. The included SFP transceiver is pre-installed, so you only need the appropriate fiber patch cables for connectivity.
Can this converter be rack-mounted?
Yes, the converter is designed for both standalone desktop use and rack mounting. Its compact steel housing can be installed in a standard 19-inch rack using optional rack-mount brackets (sold separately), making it ideal for organized network closets or data center deployments.
What power supply is included?
The package includes a universal AC adapter with a Type M plug, compatible with North American, European, UK, and Australian outlets. The adapter provides 19.20 W of power, ensuring reliable operation without requiring additional power sourcing equipment.
Does it support advanced networking features?
Yes, the converter supports Link Fault Passthrough for network fault isolation, Auto Laser Shutdown for safety, VLAN tagging for traffic segmentation, and Auto MDIX for simplified cable connections. It also handles Jumbo Frames up to 9.6K, improving efficiency for large data transfers.
What is the warranty and support coverage?
StarTech.com backs this media converter with a 2-year limited warranty and provides free lifetime 24/5 multi-lingual technical assistance. This support ensures help is available for installation, troubleshooting, or integration questions, reinforcing its suitability for professional IT environments.
What connectivity or interface options are available?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
