StarTech. com ET91000SFP2 Gigabit Ethernet Fiber Media Converter with Open SFP Slot - 10/100/1000Base-T to Fiber - Desktop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

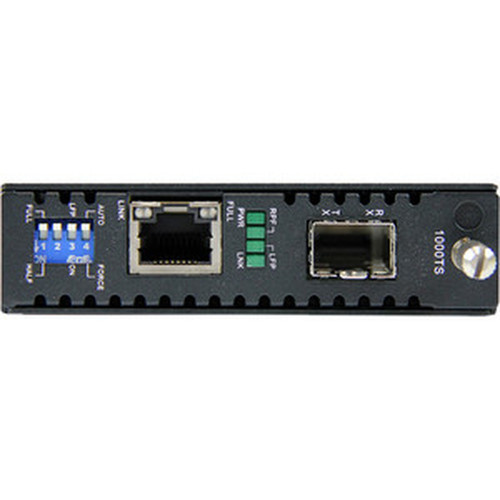

The ET91000SFP2 supports full Gigabit Ethernet performance with auto-negotiation for 10/100/1000Base-T copper connections on its single RJ-45 port. The open SFP slot accommodates a wide range of commercially available SFP modules, allowing network administrators to select the appropriate fiber type and distance for their specific application.
Advanced networking features include link-loss forwarding, remote monitor status support, and compatibility with both standard and jumbo frames up to 9KB. The converter operates in full or half-duplex modes and includes a grounding screw for proper electrical safety in installations.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), DVI, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter delivers reliable fiber extension capabilities with the flexibility to adapt to different fiber infrastructure requirements through its open SFP design.
Flexible Distance Support
The open SFP slot accepts various single-mode and multi-mode Gigabit SFP modules, enabling distance support from hundreds of meters to multiple kilometers depending on the installed transceiver.
- Supports varying distances based on SFP module
- Compatible with industry-standard MSA SFP modules
Deployment Versatility
Operates as a standalone desktop unit or integrates into the optional ETCHS2U rackmount chassis for organized installation in network infrastructure environments.
- Desktop form factor
- Rackmount chassis compatible
Advanced Network Features
Includes professional-grade features like link-loss forwarding, remote monitoring capability, and support for jumbo frames to optimize network performance in demanding environments.
- Link-loss forwarding
- Remote monitor status
- Jumbo frame support
Deployment / Use Cases
The ET91000SFP2 is ideal for extending network connections beyond the 100-meter limitation of standard copper Ethernet cabling. It converts copper Ethernet signals to fiber optic signals, enabling longer-distance connections while maintaining Gigabit performance.
Common deployment scenarios include connecting buildings across a campus, extending network connections in industrial environments, linking network equipment in data centers, and integrating fiber backbones into existing copper-based network infrastructure. The converter is particularly valuable in environments where electrical interference, distance requirements, or security considerations make fiber optic connections preferable to copper.
Building-to-Building Connectivity
Extend network connections between separate buildings using fiber optic cable to overcome distance limitations and electrical isolation requirements.
Data Center Integration
Connect copper-based network equipment to fiber optic backbones in server rooms and data center environments for improved signal integrity over longer distances.

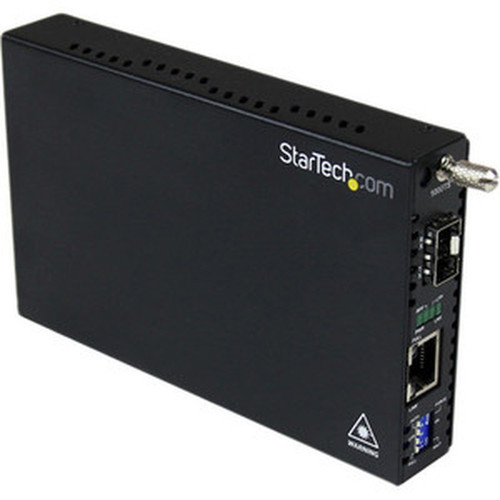

Physical Profile
The compact desktop design measures 3.50" wide by 6.10" deep by 0.90" high, with a weight of approximately 14 ounces. The small footprint allows for flexible placement on desks, shelves, or in network cabinets. The unit includes a universal power adapter with NA/UK/EU plug compatibility for worldwide deployment.
- Width
- 3.50" (88.90 mm)
- Depth
- 6.10" (154.94 mm)
- Height
- 0.90" (22.86 mm)
- Weight
- 14 oz (396.89 g)
What's in the Box
The converter ships with all necessary components for immediate deployment.
Highlights
- Converts copper Gigabit Ethernet to fiber optic connections
- Open SFP slot supports MSA-compliant single/multi-mode Gigabit SFPs
- Supports distances varying by installed SFP module
- Desktop form factor with optional rackmount chassis compatibility
- Advanced features: link-loss forwarding, remote monitor status
- Jumbo frame support up to 9KB
- Full or half-duplex operation
- Universal power adapter with NA/UK/EU plugs
- 2-year limited warranty
- TAA compliant for government procurement
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ET91000SFP2 |
| Brand Name | StarTech.com |
| Product Name | Gigabit Ethernet Fiber Media Converter with Open SFP Slot |
| Packaged Quantity | 1 Each |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Power Description | |
| Power Source | AC Adapter |
| Power Consumption | 8 W |
| Plug/Connector Type | Type M |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 0.90" (22.86 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 6.10" (154.94 mm) |
| Weight (Approximate) | 14 oz (396.89 g) |
| Miscellaneous | |
| Package Contents | Gigabit Ethernet Fiber Media Converter with Open SFP Slot 1 x Universal Power Adapter (NA/UK/EU) 1 x Grounding Screw 1 x Instruction Manual |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What does this media converter do?
The StarTech.com ET91000SFP2 converts standard copper Gigabit Ethernet signals to fiber optic signals, allowing you to extend network connections beyond the 100-meter limitation of copper cabling. It takes a 10/100/1000Base-T connection from its RJ-45 port and converts it for transmission over fiber optic cable through an installed SFP module.
What type of SFP modules does it support?
The open SFP slot supports industry-standard MSA-compliant Gigabit SFP transceivers. You can install either single-mode or multi-mode SFP modules depending on your fiber infrastructure and distance requirements. The specific distance supported depends entirely on the installed SFP module, with different modules supporting ranges from hundreds of meters to multiple kilometers.
Can this converter be rack-mounted?
Yes, while the unit has a desktop form factor, it can be installed into the optional ETCHS2U rackmount chassis for organized deployment in server rooms or network closets. The converter includes a grounding screw for proper electrical safety when installed in rack environments or other grounded installations.
What advanced networking features does it include?
The converter includes several professional-grade features: link-loss forwarding to maintain network connectivity during fiber link failures, remote monitor status capability for network management, support for jumbo frames up to 9KB to optimize performance, and compatibility with both full and half-duplex operation modes for flexible deployment in various network environments.
What power requirements does it have?
The converter uses an included universal AC adapter with 8W power consumption. The power adapter comes with interchangeable plugs for North America (NA), United Kingdom (UK), and European Union (EU) outlets, making it suitable for worldwide deployment without requiring additional power accessories.
What is included in the package?
The package contains the Gigabit Ethernet Fiber Media Converter with Open SFP Slot, one universal power adapter with NA/UK/EU plugs, one grounding screw for electrical safety, and an instruction manual. All necessary components are included for immediate deployment without requiring additional purchases for basic operation.
