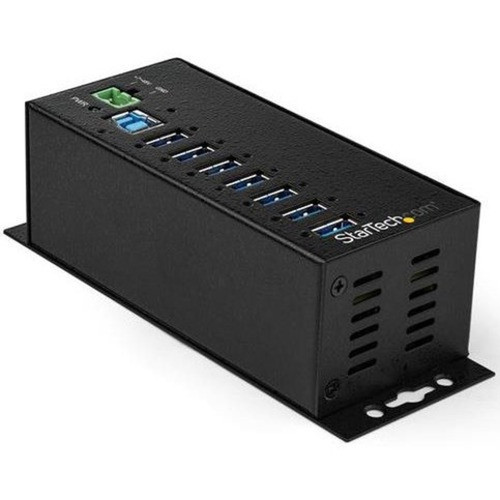

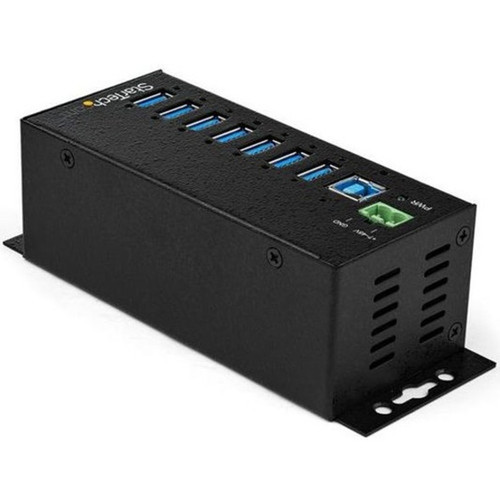

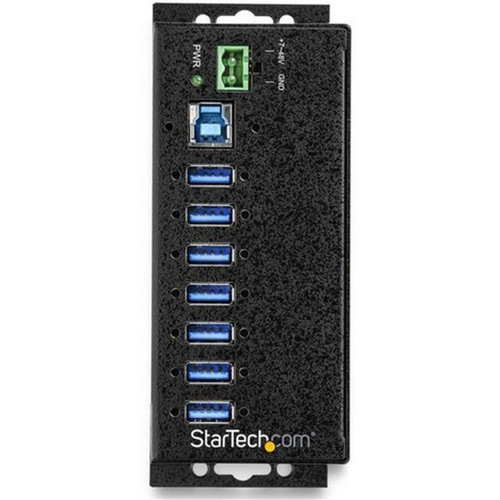

StarTech.com HB30A7AME 7-Port USB 3.0 Hub - Industrial Metal Housing - 5Gbps Data - DIN Rail/Wall/Desk Mountable with Power Adapter
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This USB hub operates on the USB 3.1 Gen 1 standard, delivering 5Gbps theoretical bandwidth with practical performance enhanced by UASP (USB Attached SCSI Protocol) support. The host connection uses a USB 3.0 Type B interface, compatible with standard USB 3.0 and later host controllers. All seven downstream ports maintain full USB 3.1 Gen 1 speed capability, ensuring no performance degradation when multiple devices are connected simultaneously.
Power management is a key technical feature, with the hub accepting a wide +7-48V DC input range for flexibility in industrial power environments. The integrated terminal block supports DC drop and LPS configurations, while the included AC adapter provides conventional outlet power. Intelligent power distribution allocates up to 2.4A (12W) per port on any two ports simultaneously when sufficient power is available, supporting BC 1.2 fast charging for compatible devices.
Key Product Advantages
The HB30A7AME stands out with its industrial-grade construction and comprehensive protection features that ensure reliable operation in challenging environments. The metal housing provides physical durability while the integrated 350W surge protection and 15kV/8kV ESD protection safeguard connected equipment from electrical damage.
Industrial Durability
Metal construction withstands physical stress in industrial settings, while comprehensive electrical protection prevents damage from surges and electrostatic discharge.
- 350W surge protection
- 15kV/8kV ESD protection
- Metal housing construction
Flexible Power Options
Supports multiple power input methods including AC adapter, DC drop, and LPS configurations with terminal block connectivity for diverse installation scenarios.
- +7-48V DC input range
- Terminal block support
- Included AC adapter
Versatile Mounting
Built-in mounting ears and included DIN rail brackets enable secure installation on DIN rails, walls, or under desks without additional hardware.
- DIN rail compatible
- Wall mountable
- Desk mountable
Deployment / Use Cases
This industrial USB hub is ideal for environments where standard consumer-grade hubs would fail under physical or electrical stress. Manufacturing facilities, laboratory settings, and industrial control systems benefit from the rugged construction and electrical protection that prevent downtime from environmental factors.
The multiple mounting options make it suitable for space-constrained installations where equipment must be secured to DIN rails or mounted vertically on walls. IT administrators can deploy these hubs in server rooms, network closets, or under desks in commercial offices where reliable USB connectivity for multiple peripherals is essential. The wide voltage input range allows integration into existing DC power systems commonly found in industrial automation and telecommunications equipment racks.
Industrial Automation
Connect multiple USB devices in manufacturing environments where dust, vibration, and electrical interference require rugged, protected connectivity solutions.
Commercial IT Infrastructure
Expand USB connectivity in server rooms, network operations centers, and office workstations with reliable, high-speed data transfer for peripherals and storage devices.
Physical Profile
The hub's compact dimensions (6.60" × 2.20" × 1.80") and lightweight design (11.50 oz) facilitate installation in space-constrained environments. The black metal finish provides a professional appearance while the built-in mounting ears and included DIN rail brackets offer multiple secure attachment options. The form factor is optimized for both standalone use and integrated mounting within equipment racks or enclosures.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.80" (45.72 mm), 2.20" (55.88 mm), 11.50 oz (326 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.20" (55.88 mm)
- Height
- 1.80" (45.72 mm)
- Weight
- 11.50 oz (326 g)
- Length
- 6.60" (167.64 mm)
What's in the Box
The package includes everything needed for immediate deployment in various installation scenarios.
Highlights
- 7-port USB 3.0 hub with 5Gbps data transfer speed
- Industrial metal housing for durability in harsh environments
- 350W surge protection and 15kV/8kV ESD protection
- Multiple mounting options: DIN rail, wall, and desk
- Wide +7-48V DC input range with terminal block support
- Total 35W power output with BC 1.2 charging support
- UASP protocol support for improved data transfer efficiency
- Includes 6.6-foot USB 3.0 host cable and power adapter
- TAA compliant for government procurement requirements
- 2-year warranty with free lifetime technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | HB30A7AME |
| Brand Name | StarTech.com |
| Product Name | USB Hub |
| Packaged Quantity | 1 Each |
| Product Type | USB Hub |
| Technical Information | |
| Host Interface | USB 3.0 Type B |
| Media & Performance | |
| UASP Support | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Number of USB 3.1 Ports | 7 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | External |
| Height | 1.80" (45.72 mm) |
| Width | 2.20" (55.88 mm) |
| Length | 6.60" (167.64 mm) |
| Weight (Approximate) | 11.50 oz (326 g) |
| Miscellaneous | |
| Package Contents | USB Hub 6.6 ft [2 m] USB 3.0 Host Cable Power Adapter (NA/JP, ANZ, UK, EU) DIN Rail Brackets Mounting Screws Quick-Start Guide |
| Platform Supported | PC |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the data transfer speed of this USB hub?
This hub supports USB 3.1 Gen 1 (also known as USB 3.0) with a maximum theoretical data transfer rate of 5 gigabits per second (Gbps). It includes UASP (USB Attached SCSI Protocol) support, which can improve real-world transfer speeds compared to standard USB Bulk-Only Transport, particularly when handling multiple simultaneous data transfers or working with storage devices that support the protocol.
How many devices can I connect to this hub simultaneously?
The StarTech.com HB30A7AME provides seven downstream USB 3.1 ports, allowing you to connect up to seven USB devices at once. All ports support the full 5Gbps data transfer speed, and the hub's 35W total power output is distributed across connected devices, with BC 1.2 fast charging capability available on any two ports simultaneously when sufficient power is available.
What mounting options are available for this USB hub?
This hub offers three mounting methods for flexible installation. It includes built-in mounting ears for wall or under-desk mounting, plus DIN rail brackets for secure attachment to standard DIN rails commonly found in industrial control panels. The compact dimensions (6.60" × 2.20" × 1.80") and lightweight design (11.50 oz) make it suitable for space-constrained installations in various environments.
What power protection features does this hub include?
The hub incorporates multiple protection mechanisms for connected devices. It features 350W surge protection to guard against power spikes, plus 15kV air gap and 8kV contact ESD (electrostatic discharge) protection. The metal housing provides physical durability, while the wide +7-48V DC input range with terminal block support allows integration into diverse power systems without risk of damage from voltage fluctuations.
What power adapter is included with the hub?
The package includes a power supply adapter that supports multiple regional configurations: North America/Japan (NA/JP), Australia/New Zealand (ANZ), United Kingdom (UK), and European Union (EU). This adapter provides AC power input, while the hub also supports DC power input via terminal block for installations where DC power is available, offering flexibility for different deployment scenarios.
What warranty and support does StarTech.com provide for this product?
StarTech.com backs this USB hub with a 2-year limited warranty covering defects in materials and workmanship. Additionally, they offer free lifetime technical support to assist with installation, configuration, and troubleshooting. The product is TAA (Trade Agreements Act) compliant, making it suitable for government procurement, and meets multiple environmental standards including EU RoHS, REACH, and WEEE directives.
