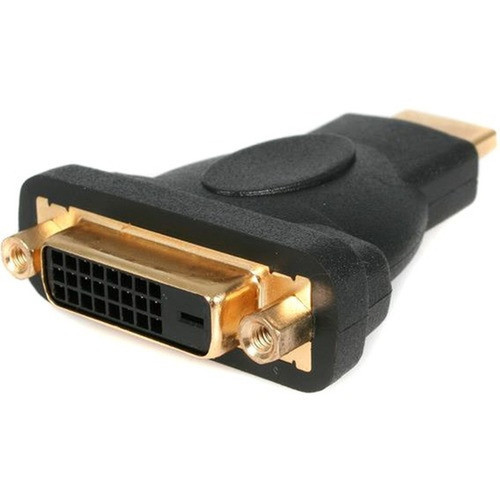

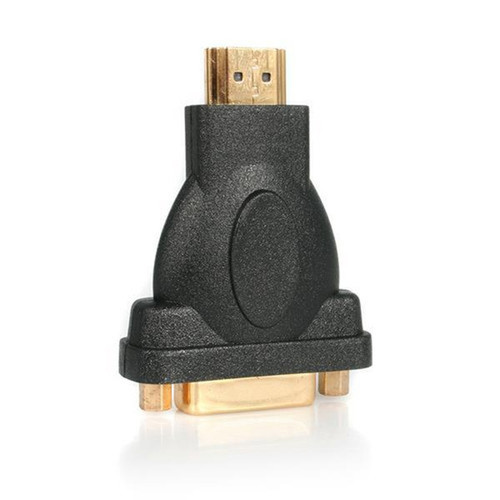

StarTech. com HDMIDVIMF HDMI to DVI-D Video Cable Adapter - M/F - Passive Gold-Plated Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This video adapter converts HDMI digital audio/video signals to DVI-D digital video format, maintaining signal quality without compression or conversion artifacts. The HDMI male connector features a standard 19-pin configuration, while the DVI-D female connector uses a 25-pin dual-link design that supports higher resolutions than single-link DVI.
The passive design means the adapter contains no active electronics, relying on direct pin-to-pin mapping between HDMI and DVI-D interfaces. This approach ensures compatibility with most HDMI sources and DVI-D displays while minimizing potential points of failure. The adapter handles TMDS (Transition Minimized Differential Signaling) data transmission used by both HDMI and DVI standards.
This section brings together practical product details such as Adapter Type, Connector Type on First End, Connector on First End Details, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This adapter bridges the gap between HDMI and DVI-D ecosystems with several practical benefits for IT professionals and AV integrators.
Universal Compatibility
Works with any standard HDMI source device and DVI-D display, including computers, media players, gaming consoles, and professional AV equipment.
- No drivers required
- Plug-and-play operation
- Supports HDMI 1.0+ and DVI-D standards
Signal Integrity
Gold-plated connectors maintain optimal conductivity and resist oxidation, ensuring consistent digital video transmission over extended use.
- Corrosion-resistant contacts
- Minimal signal degradation
- Reliable connection retention
Compact Design
The small form factor (2" length) minimizes cable strain and fits easily in tight spaces behind monitors or in cable management systems.
- Low-profile housing
- Lightweight construction
- Discreet black finish
Deployment / Use Cases
The HDMIDVIMF adapter serves multiple practical applications in business, education, and professional AV environments where equipment interfaces vary.
In corporate settings, this adapter enables modern laptops with HDMI outputs to connect to conference room projectors or monitors with DVI-D inputs. IT departments can standardize on HDMI-equipped computers while continuing to utilize existing DVI-D displays throughout the organization. The adapter also facilitates temporary setups for presentations, training sessions, or digital signage where interface compatibility is required.
Legacy Display Integration
Extend the lifespan of DVI-D monitors and projectors by connecting them to newer HDMI sources, avoiding premature hardware replacement costs.
Multi-Monitor Configurations
Combine HDMI and DVI-D displays in extended desktop setups when graphics cards have mixed output types, maintaining consistent digital quality across all screens.
Physical Profile
The adapter measures 2 inches in length, 1.70 inches in width, and 0.60 inches in height, with a weight of approximately 1 ounce. The compact dimensions prevent interference with adjacent ports on densely populated devices. The matte black finish blends with most equipment aesthetics, while the sturdy construction withstands repeated connection cycles. The adapter ships individually packaged and is manufactured in China with RoHS compliance.
- Width
- 1.70" (43.18 mm)
- Height
- 0.60" (15.24 mm)
- Weight
- 1 oz (28.35 g)
- Length
- 2" (50.80 mm)
Highlights
- HDMI male to DVI-D dual-link female video adapter
- Passive design requires no external power or drivers
- Gold-plated connectors for optimal signal transmission
- Supports resolutions up to 2560x1600
- Compact black housing (2" L x 1.70" W x 0.60" H)
- Plug-and-play compatibility with most devices
- EU RoHS compliant for environmental safety
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | HDMIDVIMF |
| Brand Name | StarTech.com |
| Product Name | HDMI to DVI-D Video Cable Adapter - M/F |
| Packaged Quantity | 1 Each |
| Product Type | Video Adapter |
| Technical Information | |
| Adapter Type | DVI/HDMI |
| Connector Type on First End | HDMI Digital Audio/Video - Male |
| Connector on First End Details | 1 x 19-pin HDMI Digital Audio/Video Male |
| Connector Type on Second End | DVI-D (Dual-Link) Digital Video - Female |
| Connector on Second End Details | 1 x 25-pin DVI-D (Dual-Link) Digital Video Female |
| Connector Plating | Gold |
| Features | Passive |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 0.60" (15.24 mm) |
| Width | 1.70" (43.18 mm) |
| Length | 2" (50.80 mm) |
| Weight (Approximate) | 1 oz (28.35 g) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What devices are compatible with this HDMI to DVI-D adapter?
The adapter works with any standard HDMI source device (computers, laptops, media players, gaming consoles) and any DVI-D display or projector. It requires HDMI 1.0 or later on the source side and DVI-D dual-link on the display side for full resolution support. The passive design ensures broad compatibility without requiring specific drivers or software.
Does this adapter support audio transmission?
No, this adapter transmits digital video signals only. DVI-D interfaces do not carry audio, so audio must be handled separately through alternative connections like 3.5mm audio jacks, S/PDIF, or HDMI audio extractors when using this adapter. The video signal maintains full digital quality up to 2560x1600 resolution.
What is the difference between passive and active adapters?
Passive adapters like the HDMIDVIMF use direct pin-to-pin connections without signal processing electronics, making them simpler, more reliable, and requiring no external power. Active adapters contain chipsets that convert or amplify signals, which can enable additional features but may require power and have compatibility considerations. This passive design ensures plug-and-play operation with most equipment.
Why are the connectors gold-plated?
Gold plating provides superior conductivity compared to standard nickel or tin plating, ensuring minimal signal loss during digital video transmission. Gold also resists oxidation and corrosion better than other metals, maintaining reliable connections over years of use. This is particularly valuable in professional environments where adapters may be frequently connected and disconnected.
What warranty comes with this adapter?
StarTech.com provides a lifetime warranty for this adapter, covering defects in materials and workmanship for the product's usable life. This warranty demonstrates confidence in the adapter's durability and reliability for long-term deployment in business and professional settings. Warranty service is handled directly through StarTech.com's support channels.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
What input or connectivity options are listed?
Connectivity options include HDMI Digital Audio/Video - Male, helping the product integrate into common office or home setups.
Does the display support VESA mounting or adjustment features?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
