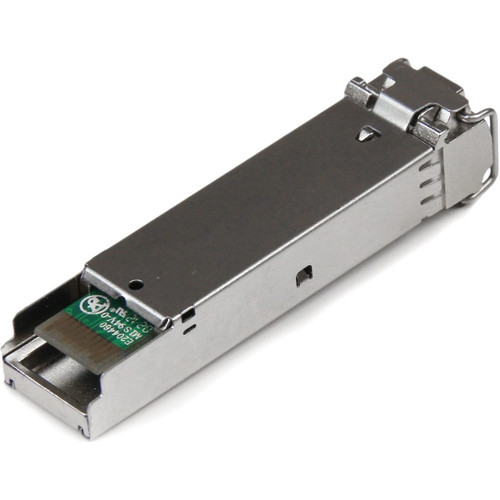

StarTech. com J9151A-ST SFP+ Transceiver Module - 10GBASE-LR - 1 x LC Duplex - Single-Mode Fiber - 10 Gbps
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP+ transceiver operates on 10GBase-LR technology, enabling long-range data transmission over single-mode fiber with minimal signal loss. It features a single LC duplex port, providing a compact and standardized interface for fiber optic connections.
The module is MSA compliant, ensuring interoperability with a wide range of networking equipment. Its hot-swappable form factor supports flexible deployment and upgrades in live network environments.
Relevant factors for this section include Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This transceiver offers significant advantages for network administrators seeking reliable high-speed connectivity. Its compatibility with HPE routers and switches simplifies procurement and reduces deployment complexity.
High-Speed Performance
Delivers 10 Gbps data transfer rates, supporting bandwidth-intensive applications and reducing network bottlenecks.
- 10GBase-LR technology
- Optimal for long-distance fiber runs
Seamless Integration
Designed as a drop-in replacement for HP J9151A modules, ensuring compatibility with existing HPE 2920, 2910al, 3500yl, 3800, and 5400zl series switches and routers.
- MSA compliance
- Hot-swappable installation
Deployment / Use Cases
This SFP+ transceiver is ideal for expanding network infrastructure in data centers, enterprise networks, and service provider environments. It enables high-speed connections between switches, routers, and servers over single-mode fiber.
Common use cases include backbone links, server-to-switch connections, and inter-building network extensions where long-distance, high-bandwidth transmission is required. The module supports optical networking applications that demand reliable data integrity over extended distances.
Data Center Connectivity
Connect core switches and servers with 10 Gbps fiber links to enhance data center performance and scalability.
Enterprise Network Expansion
Extend network reach between buildings or across campuses using single-mode fiber for secure, high-speed data transfer.
Physical Profile
The transceiver features a compact design with dimensions of 0.50" (12.70 mm) height, 0.60" (15.24 mm) width, and 2.20" (55.88 mm) depth, weighing approximately 0.80 oz (22.68 g). Its small form factor allows for high-density installations in switch and router SFP+ slots.
- Width
- 0.60" (15.24 mm)
- Depth
- 2.20" (55.88 mm)
- Height
- 0.50" (12.70 mm)
- Weight
- 0.80 oz (22.68 g)
Highlights
- 10 Gbps data transfer rate over single-mode fiber optic cable
- LC duplex connector for standardized fiber optic interfaces
- Hot-pluggable and hot-swappable for easy installation and maintenance
- MSA compliant for broad compatibility with networking equipment
- Compatible with HPE routers and switches including 2920, 2910al, 3500yl, 3800, and 5400zl series
- Supports 10GBase-LR technology for long-range optical networking
- Ideal for data center, enterprise, and service provider applications
- Compact form factor enables high-density deployments
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | J9151A-ST |
| Brand Name | StarTech.com |
| Product Name | HP J9151A Compatible SFP+ Transceiver Module - 10GBASE-LR |
| Product Type | SFP+ |
| Packaged Quantity | 1 |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-LR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-LR |
| Physical Characteristics | |
| Form Factor | Hot-pluggable,Hot-swappable |
| Height | 0.50" (12.70 mm) |
| Width | 0.60" (15.24 mm) |
| Depth | 2.20" (55.88 mm) |
| Weight (Approximate) | 0.80 oz (22.68 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant HPE Routers HPE Switches: 2920 2910al 3500yl 3800 5400zl |
FAQ
What is the data transfer rate of this SFP+ transceiver?
This SFP+ transceiver supports a data transfer rate of up to 10 Gbps using 10GBase-LR technology. It is designed for high-speed optical networking applications, providing reliable performance for bandwidth-intensive tasks over single-mode fiber.
Which fiber type and connector does this module support?
The module supports single-mode fiber optic cable and features an LC duplex connector. This combination is standard for long-distance, high-bandwidth fiber optic connections, ensuring compatibility with existing network infrastructure.
Is this transceiver compatible with HPE networking equipment?
Yes, this transceiver is compatible with HPE routers and switches, including the 2920, 2910al, 3500yl, 3800, and 5400zl series. It is designed as a replacement for HP J9151A modules and is MSA compliant for interoperability with a wide range of networking devices.
Can this module be installed without powering down the network equipment?
Yes, the transceiver is hot-pluggable and hot-swappable, allowing for installation or replacement without shutting down the network device. This feature minimizes downtime and supports maintenance in live network environments.
