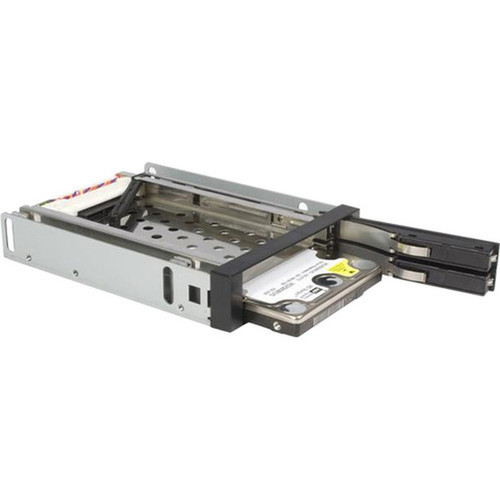

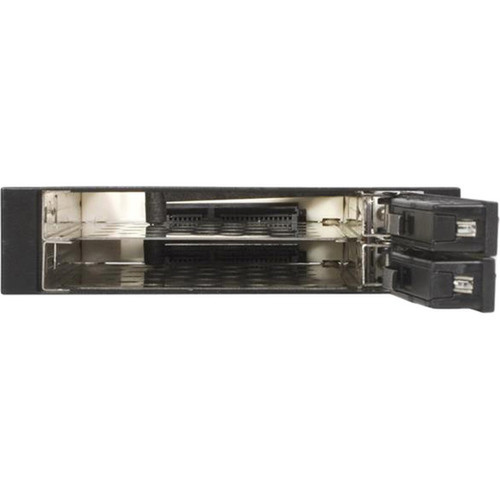

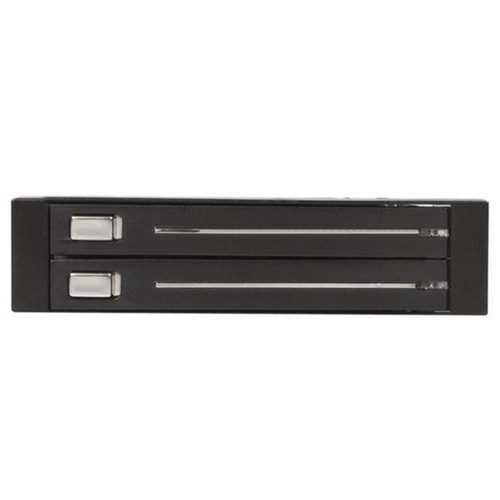

StarTech.com HSB220SAT25B 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane - Black - Internal 3.5" Bay Adapter
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This mobile rack backplane features a Serial ATA controller with dedicated SATA/600 host and drive interfaces. It supports two 2.5" form factor drives without any pre-installed storage, giving you complete flexibility to install your preferred HDD or SSD configurations. The backplane is designed for internal installation in compatible 3.5" drive bays commonly found in desktop computers, servers, and storage enclosures.
The unit maintains a compact physical profile with dimensions of 4" wide x 5.30" deep x 0.90" high (101.60 mm x 134.62 mm x 22.86 mm) and weighs approximately 10.10 ounces (286.33 grams). Its black aluminum construction provides both durability and effective heat dissipation for reliable drive operation.
Relevant factors for this section include Number of Hard Drives Supported, Number of Hard Drives Installed, Number of Solid State Drive Supported, Controller Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This backplane delivers practical advantages for storage expansion and drive management in space-constrained environments. Its trayless design streamlines drive installation and removal, while the hot-swap capability enables drive changes without system shutdown.
Space-Efficient Design
Converts a single 3.5" drive bay into dual 2.5" drive capacity, maximizing storage density in standard drive bays without requiring additional rack space.
- Fits standard 3.5" bays
- Supports two 2.5" drives
- Compact aluminum construction
Simplified Drive Management
The trayless architecture eliminates separate drive trays, reducing component count and simplifying drive installation and removal processes.
- Direct drive insertion
- No separate trays required
- Quick drive replacement
Reliable Connectivity
Provides stable SATA/600 connections with individual power and activity LEDs for each drive, ensuring proper drive recognition and status monitoring.
- SATA revision I/II/III support
- Dedicated drive LEDs
- 50,000+ insertion rating
Deployment / Use Cases
This mobile rack backplane is ideal for expanding storage capacity in systems with available 3.5" drive bays. It enables the installation of two 2.5" SATA drives where space would normally accommodate only a single 3.5" drive, effectively doubling storage potential in the same physical footprint.
Common deployment scenarios include adding SSD storage to desktop workstations for improved performance, creating redundant drive configurations in small servers, or upgrading storage in existing systems without modifying chassis layouts. The hot-swap capability makes it particularly valuable in environments requiring frequent drive changes or maintenance without system downtime.
Desktop Storage Expansion
Add dual 2.5" SSD or HDD storage to desktop computers with available 3.5" drive bays, improving performance or capacity without chassis modification.
Server Drive Management
Implement hot-swappable drive configurations in server environments where drive accessibility and quick replacement are operational requirements.
Physical Profile
The backplane features a black aluminum enclosure designed for internal mounting in standard 3.5" drive bays. Its dimensions of 4" wide x 5.30" deep x 0.90" high ensure compatibility with most desktop and server drive bay configurations. The aluminum construction provides structural rigidity while aiding in heat dissipation from installed drives. The unit includes mounting provisions for secure installation in drive bays.
- Width
- 3.5"
- Depth
- 5.30" (134.62 mm)
- Height
- 0.90" (22.86 mm)
- Weight
- 10.10 oz (286.33 g)
What's in the Box
The package includes all necessary components for installation and operation of the mobile rack backplane.
Highlights
- Supports two 2.5" SATA HDD or SSD drives
- Trayless design for direct drive insertion without separate trays
- Hot-swap compatible for drive changes without system shutdown
- Installs in standard 3.5" drive bays
- Aluminum construction for durability and heat dissipation
- SATA/600 interface with support for revisions I, II, and III
- Includes power and activity LEDs for each drive
- 50,000+ insertion rating for long-term reliability
- Plug-and-play installation with included cables
- 2-year limited warranty with RoHS, REACH, and WEEE compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | HSB220SAT25B |
| Brand Name | StarTech.com |
| Product Name | 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane |
| Packaged Quantity | 1 Each |
| Product Type | Drive Enclosure |
| Technical Information | |
| Number of Hard Drives Supported | 2 |
| Number of Hard Drives Installed | No |
| Number of Solid State Drive Supported | 2 |
| Number of Solid State Drive Installed | No |
| Controllers | |
| Controller Type | Serial ATA |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Number of 2.5" Bays | 2 |
| Network & Communication | |
| Wireless LAN | No |
| Interfaces/Ports | |
| Drive Interface | SATA/600 |
| Host Interface | Serial ATA/600 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Aluminum |
| Form Factor | Internal |
| Compatible Drive Bay Width | 3.5" |
| Height | 0.90" (22.86 mm) |
| Width | 4" (101.60 mm) |
| Depth | 5.30" (134.62 mm) |
| Weight (Approximate) | 10.10 oz (286.33 g) |
| Miscellaneous | |
| Package Contents | 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane 2 x Lp4 To SATA And LED Adapter Cable 1 x 15-Pin SATA Power And LED Y Cable 2 x 7-Pin SATA Data Cable 2 x Hard Drive Protector Film 1 x Screw Kit 1 x Instruction Manual |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
How many drives does this backplane support and what size are they?
This backplane supports two 2.5-inch form factor SATA drives. It accommodates both hard disk drives (HDDs) and solid-state drives (SSDs) in the 2.5-inch size standard. The unit does not include any pre-installed drives, allowing you to install your preferred storage devices based on capacity and performance requirements.
What type of drive bay does this unit install into?
The backplane installs into a standard 3.5-inch internal drive bay commonly found in desktop computers, servers, and storage enclosures. It converts a single 3.5-inch bay into dual 2.5-inch drive capacity, maximizing storage density without requiring additional rack space or chassis modification.
What does 'trayless design' mean for this product?
The trayless design means drives install directly into the backplane without requiring separate drive trays or enclosures. This eliminates the need to mount drives into trays before installation, simplifying the process of adding or replacing drives. Drives slide directly into the backplane's drive bays and secure in place, reducing component count and streamlining maintenance.
Is this backplane hot-swap compatible?
Yes, this backplane is hot-swap compatible, allowing you to insert or remove drives while the system remains powered on and operational. This capability is particularly valuable in server environments or workstations where drive changes are needed without system downtime. The backplane supports SATA hot-swap functionality for both HDD and SSD drives.
What SATA interfaces does this backplane support?
The backplane supports SATA revision I (1.5 Gbps), revision II (3.0 Gbps), and revision III (6.0 Gbps) interfaces through its SATA/600 host and drive connections. This ensures compatibility with a wide range of SATA drives from older 1.5 Gbps models to modern 6.0 Gbps SSDs. The unit maintains proper signaling for each SATA generation.
What cables and accessories are included with the backplane?
The package includes all necessary cables for installation: two LP4 to SATA and LED adapter cables, one 15-pin SATA power and LED Y cable, and two 7-pin SATA data cables. Additional accessories include two hard drive protector films for drive bottom protection, a comprehensive screw kit for mounting, and an instruction manual. These components provide complete installation capability without requiring separate purchases.
