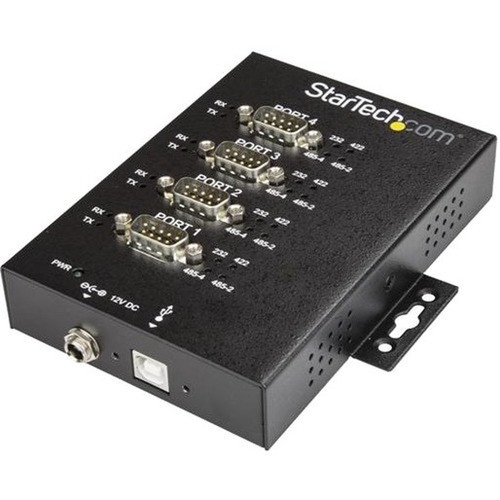

StarTech.com ICUSB234854I USB to RS232/RS485/RS422 4-Port Industrial Serial Hub Adapter - USB 2.0 to DB9 Converter with DIN Rail Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This industrial-grade serial hub supports individual port configuration, allowing each of the four DB9 male ports to operate as RS232, RS422, or RS485 (2-wire/4-wire) interfaces. Data transfer rates reach up to 921.6 Kbps, suitable for high-speed communication with devices like barcode scanners, printers, PLCs, and sensors.
The adapter features 15kV ESD surge protection (Level 4) and an IP30 rating, providing enhanced electrical and physical protection in industrial settings. All ports are equipped with locking connectors to prevent accidental disconnection, ensuring continuous operation in vibration-prone environments.
Relevant factors for this section include Host Interface, Platform Supported, Number of Serial Ports (External). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This serial hub stands out with its versatile power options and broad compatibility, designed to integrate seamlessly into diverse industrial and commercial setups.
Flexible Power Supply
The hub can be powered via the included 12V screw-locking power adapter or directly from the 5V USB host connection. Each serial port's pin 9 can be individually set to 5V, 12V (requires power adapter), or 0V, providing tailored power delivery for connected devices.
Wide Platform Support
Compatible with current and legacy versions of Windows, Linux, and macOS, as well as various embedded platforms. This ensures connectivity across a wide range of systems, from modern workstations to older industrial terminals.
Rugged Industrial Design
The metal construction, combined with surge protection and locking connectors, offers durability and reliability in harsh conditions, reducing downtime and maintenance needs.
Deployment / Use Cases
This adapter is ideal for environments where legacy serial devices need to connect to modern USB-based systems. Its robust design and flexible mounting make it suitable for factory floors, retail POS systems, laboratory equipment, and telecommunications infrastructure.
Common applications include connecting barcode scanners, label printers, CNC machines, scientific instruments, and network equipment that rely on serial communication. The DIN rail mounting capability is particularly valuable for organized installations in control cabinets and industrial racks, where space efficiency and secure mounting are critical.
Relevant factors for this section include Host Interface, Platform Supported, Number of Serial Ports (External). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The hub features a compact external form factor measuring 4.60" wide by 1" high (116.84 mm x 25.40 mm), with a weight of approximately 13.50 oz (382.72 g). Its low-profile design and built-in mounting ears allow for discreet installation in space-constrained areas. The industrial metal finish not only enhances durability but also provides effective heat dissipation during continuous operation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1" (25.40 mm), 4.60" (116.84 mm), 13.50 oz (382.72 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.60" (116.84 mm)
- Height
- 1" (25.40 mm)
- Weight
- 13.50 oz (382.72 g)
What's in the Box
The package includes all necessary components for immediate deployment and secure installation.
Highlights
- Adds 4 configurable RS-232/422/485 serial ports from a single USB 2.0 port
- Industrial metal housing with 15kV ESD surge protection and IP30 rating
- Locking connectors on all ports for secure connections in vibrating environments
- Supports baud rates up to 921.6 Kbps for high-speed data transfer
- Flexible power options: 12V adapter or 5V USB host power
- Individual port configuration for RS232, RS422, or RS485 operation
- Includes DIN rail kit for secure mounting in control panels
- Compatible with Windows, Linux, macOS, and embedded platforms
- TAA compliant and meets RoHS, WEEE, REACH environmental standards
- Backed by a 2-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ICUSB234854I |
| Brand Name | StarTech.com |
| Product Name | USB Serial Hub |
| Packaged Quantity | 1 |
| Product Type | Serial Hub |
| Technical Information | |
| Host Interface | USB |
| Platform Supported | PC,Linux |
| Interfaces/Ports | |
| Number of Serial Ports (External) | 4 |
| Physical Characteristics | |
| Form Factor | External |
| Height | 1" (25.40 mm) |
| Width | 4.60" (116.84 mm) |
| Weight (Approximate) | 13.50 oz (382.72 g) |
| Miscellaneous | |
| Package Contents | USB Serial Hub 1 x USBxB with Screw Lock to USBxA Cable 1 x DIN Rail Kit 1 x Instruction Manual |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What types of serial ports does this USB hub support?
The StarTech.com ICUSB234854I supports RS-232, RS-422, and RS-485 (both 2-wire and 4-wire) serial standards. Each of the four DB9 male ports can be individually configured to operate as any of these interface types, providing flexibility for connecting various legacy and industrial devices.
How is this serial hub powered?
This hub offers dual power options. It can be powered using the included 12V screw-locking power adapter or directly from the 5V USB host connection. Additionally, each serial port's pin 9 can be set to provide 5V, 12V (requires the power adapter), or 0V output, allowing customized power delivery to connected devices.
What mounting options are available for this adapter?
The adapter includes built-in mounting ears and a DIN rail kit, enabling secure installation on desks, walls, or standard DIN rails. This makes it ideal for organized setups in control panels, equipment racks, and industrial environments where stable mounting is essential.
What operating systems are compatible with this USB to serial converter?
This converter is widely compatible with current and legacy versions of Windows, Linux, and macOS, as well as various embedded platforms. This broad support ensures it can connect industrial equipment to a wide range of computer systems and terminals.
What protection features does this industrial serial hub include?
The hub features 15kV ESD surge protection (Level 4) and an IP30 rating for dust and low-pressure water jet protection. All ports have locking connectors to prevent accidental disconnection. The industrial metal housing provides physical durability and effective heat dissipation in demanding environments.
What is included in the package with this serial hub?
The package includes the USB serial hub unit, a 6-foot (1.8 m) USBxB to USBxA screw-lock cable for secure host connection, a DIN rail kit for mounting, and an instruction manual. All components are provided for immediate deployment and installation.
