StarTech. com IMC1GSFP Industrial Fiber to Ethernet Media Converter - 1Gbps SFP to RJ45/CAT6 - SM/MM Fiber to Copper Gigabit Network IP-30 12V-56V DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at a full Gigabit Ethernet data rate, supporting both 1000Base-T (copper) and 1000Base-X (fiber) network standards. It features an open SFP slot compatible with any standard SFP transceiver, allowing network administrators to select the appropriate optic for their specific fiber type and distance requirements.
Advanced networking features include support for 16K jumbo frames to improve throughput efficiency and Link Fault Pass-through (LFP) for enhanced network diagnostics. The converter maintains low power consumption at just 3 watts while delivering robust performance in industrial settings.
Relevant factors for this section include Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
Industrial Hardened Design
The IP-30 rated aluminum enclosure provides protection against solid objects larger than 2.5mm and is tested for vibration, shock, and free-fall resistance, ensuring reliability in harsh conditions.
- Operating Temperature: -40°C to 75°C
- Rugged IP-30 Housing
- Vibration & Shock Rated
Flexible Power & Mounting
A wide 12V-56V DC input range allows for deployment with diverse power sources, while dual mounting options provide installation flexibility in control cabinets or on walls.

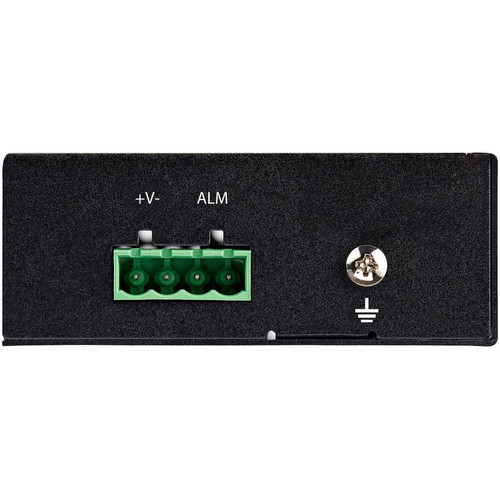

- 12V-56V DC Input
- DIN Rail or Wall Mountable
- Terminal Block & Barrel Adapter Included
Deployment / Use Cases
This industrial media converter is ideal for extending fiber backbone connections to copper-based network devices in environments where reliability and environmental hardening are critical. Common applications include connecting fiber runs to IP cameras, access points, or industrial controllers in manufacturing plants, transportation systems, or outdoor installations.
The wide DC input voltage makes it suitable for solar-powered installations, vehicular systems, and railway applications where standard AC power may not be available or stable. The open SFP slot allows network designers to choose the exact fiber optic transceiver needed for their distance and fiber type, whether deploying across a campus with multi-mode or connecting buildings with single-mode fiber.
Industrial Automation
Connect PLCs, HMIs, and sensors on copper Ethernet to fiber optic backbones in manufacturing and process control environments.
Outdoor & Harsh Environments
Deploy in traffic control systems, railway signaling, or remote monitoring stations where temperature extremes and physical stress are factors.
Physical Profile
The converter features a compact, rugged design with dimensions of 3.20" (81.28 mm) wide, 4.10" (104.14 mm) deep, and 1.30" (33.02 mm) high, weighing approximately 5.10 oz (144.58 g). Its aluminum construction provides durability while maintaining a lightweight profile for easy installation.
- Width
- 3.20" (81.28 mm)
- Depth
- 4.10" (104.14 mm)
- Height
- 1.30" (33.02 mm)
- Weight
- 5.10 oz (144.58 g)
What's in the Box
The package includes all necessary components for immediate deployment and flexible power connection.
Highlights
- Converts 1Gbps fiber to RJ-45 copper Ethernet with Gigabit performance.
- Open SFP slot compatible with any standard SFP for single-mode or multi-mode fiber.
- Industrial IP-30 aluminum housing rated for harsh environments (-40°C to 75°C).
- Wide 12V-56V DC input compatible with solar, automotive, and rail power systems.
- DIN rail and wall mountable for flexible installation in control cabinets or on surfaces.
- Supports 16K jumbo frames and Link Fault Pass-through (LFP) for network efficiency.
- Low 3-watt power consumption for energy-efficient operation.
- Backed by StarTech.com's 2-year warranty and 24/5 technical support.
- Includes terminal block and barrel adapter for redundant power connection options.
- EU RoHS, REACH, and WEEE compliant for environmental responsibility.
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IMC1GSFP |
| Brand Name | StarTech.com |
| Product Name | Transceiver/Media Converter |
| Packaged Quantity | 1 Each |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode,Single-mode |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-X |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 3 W |
| Plug/Connector Type | Terminal Block (4 Wire),Type N |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable,Wall Mountable |
| Height | 1.30" (33.02 mm) |
| Width | 3.20" (81.28 mm) |
| Depth | 4.10" (104.14 mm) |
| Weight (Approximate) | 5.10 oz (144.58 g) |
| Miscellaneous | |
| Package Contents | Transceiver/Media Converter Mounting Hardware Kit Quick-Start Guide Terminal Block to Barrel Power Connector Adapter Terminal Block |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What types of fiber does this media converter support?
The StarTech.com IMC1GSFP supports both single-mode and multi-mode fiber optic connections. It features an open SFP slot that is compatible with any standard SFP transceiver, allowing you to select the specific optic module required for your fiber type and distance requirements.
What is the operating temperature range for this industrial converter?
This media converter is hardened for industrial environments with an operating temperature range of -40°C to 75°C. This wide range ensures reliable performance in extreme cold or heat, making it suitable for outdoor installations, manufacturing floors, and transportation applications.
How is this converter powered and what power options are included?
The converter uses a 12V-56V DC power input, providing compatibility with various power sources including solar panels, automotive systems, and railway power. The package includes both a terminal block (4-wire) and a terminal block to barrel power connector adapter, offering flexible and redundant power connection methods.
What mounting options are available for installation?
This media converter offers dual mounting capabilities. It can be mounted on a standard DIN rail for installation in control cabinets and industrial racks, or it can be wall-mounted using the included hardware kit. This flexibility allows deployment in both structured cabinet environments and direct wall installations.
What is the IP rating and what does it mean for deployment?
The converter has an IP-30 rating, which means it provides protection against solid objects larger than 2.5mm and is not rated for water protection. This makes it suitable for indoor industrial environments where dust and larger particles may be present, but it should not be exposed to liquids or high-pressure water sprays.
What warranty and support comes with this StarTech.com product?
StarTech.com backs this industrial media converter with a 2-year limited warranty. Additionally, purchasers receive free 24/5 multi-lingual technical support from North America-based teams, providing expert assistance for installation, configuration, and troubleshooting throughout the product's lifecycle.
