Product Features
Technical Overview
This fiber optic coupler delivers robust technical specifications tailored for modern high-bandwidth networks. Engineered for 1/10/40/100Gbps transmission speeds, it maintains signal quality with minimal attenuation, making it suitable for backbone connections, patch panel extensions, and distribution frame installations.
The duplex configuration provides two LC/UPC female ports per end, enabling simultaneous connection of two fiber strands. This design supports bidirectional data flow and simplifies cable management in rackmount panels, wall enclosures, and telecom builds where space optimization and reliability are critical.
Relevant factors for this section include Adapter Type, Connector Type on First End, Connector on First End Details, Color Family. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The StarTech LC Fiber Coupler combines precision engineering with user-friendly design to deliver distinct advantages in fiber optic connectivity. Its low insertion loss and ceramic sleeve material provide durable, high-performance mating that preserves signal integrity across extended runs and frequent connections.
Tool-Free Installation
Top snap-in tabs allow quick, secure installation in standard patch panels without requiring tools or additional steps, reducing deployment time and minimizing configuration errors.
- No tools required
- Snap-in design
- Secure fit
Standards Compliance
Exceeds TIA-568 B.3 standards and is optimized for Single Mode laser sources, ensuring compatibility with industry best practices and reliable operation in certified installations.
- TIA-568 B.3 compliant
- Single Mode optimized
- Industry standard
Deployment / Use Cases
This LC fiber coupler is ideal for scalable network builds where extending or joining fiber runs is necessary. Its compact form factor and reliable performance make it suitable for data center environments, telecom infrastructure, and enterprise network upgrades that require high-speed backbone connections.
Common deployment scenarios include patch panel extensions in server racks, distribution frame connections in telecom central offices, and wall enclosure installations in office buildings. The coupler's plug-and-play design simplifies maintenance and reconfiguration tasks, while its TAA compliance ensures it meets government procurement requirements for certain installations.
Data Center Applications
Extend fiber runs between switches, routers, and servers in rackmount configurations, maintaining signal integrity across high-density environments with minimal attenuation.
Telecom Infrastructure
Connect distribution frames and wall enclosures in central offices and customer premises, supporting scalable builds with reliable Single Mode fiber connectivity.
Physical Profile

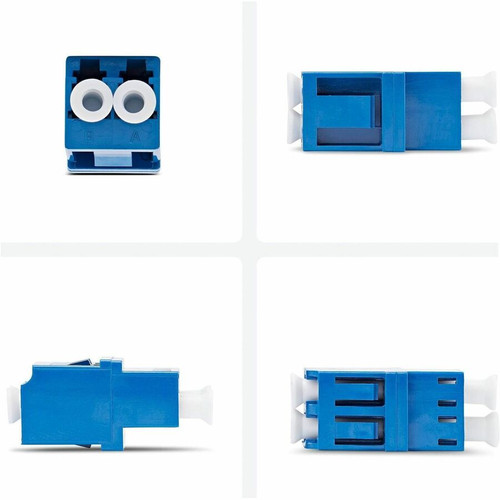

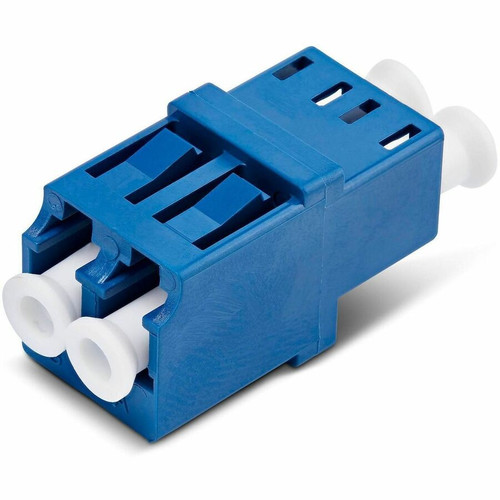

Measuring 1" (25.40 mm) in length, 0.50" (12.70 mm) in width, and 0.60" (15.24 mm) in height, this compact coupler fits standard patch panel openings without occupying excessive space. The blue color coding identifies it as a Single Mode component, while the ceramic sleeve provides durable, precise alignment for consistent fiber mating.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.60" (15.24 mm), 0.50" (12.70 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 0.50" (12.70 mm)
- Height
- 0.60" (15.24 mm)
- Length
- 1" (25.40 mm)
What's in the Box
The package includes the LC Fiber Coupler with dust covers to protect the connectors during storage and transportation, ensuring the product arrives ready for immediate installation.
Highlights
- Extend LC fiber connections in patch panels and distribution frames
- Single Mode compatibility with OS1/OS2 fibers (9/125µm cores)
- Low 0.2dB insertion loss for optimal signal integrity
- Supports 1/10/40/100Gbps transmission speeds
- Plug-and-play installation with snap-in tabs, no tools required
- Ceramic sleeve material for durable, precise mating
- LC/UPC female connectors on both ends
- TAA compliant for government procurement eligibility
- Blue color coding identifies Single Mode application
- 1-year limited warranty with technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | LCLCSMCOUPLER |
| Brand Name | StarTech.com |
| Product Name | LC Fiber Coupler |
| Packaged Quantity | 1 |
| Product Type | Network Adapter |
| Technical Information | |
| Adapter Type | Fiber Optic |
| Connector Type on First End | LC/UPC Network - Female |
| Connector on First End Details | 2 x LC/UPC Network - Female |
| Connector Type on Second End | LC/UPC Network - Female |
| Connector on Second End Details | 2 x LC/UPC Network - Female |
| Features | Plug and Play,Passive |
| Physical Characteristics | |
| Color Family | Blue |
| Product Color | Blue |
| Sleeve Material | Ceramic |
| Height | 0.60" (15.24 mm) |
| Width | 0.50" (12.70 mm) |
| Length | 1" (25.40 mm) |
| Miscellaneous | |
| Package Contents | LC Fiber Coupler Dust Covers |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What type of fiber cables is this coupler compatible with?
This coupler is designed for Single Mode fiber cables, specifically OS1 and OS2 types with 9/125µm cores. It operates within the 1260-1625nm wavelength range and is optimized for use with LC/LC cables that have UPC polished ends, ensuring proper signal transmission and minimal loss in Single Mode applications.
What speeds does this LC fiber coupler support?
The coupler supports transmission speeds of 1Gbps, 10Gbps, 40Gbps, and 100Gbps, making it suitable for high-bandwidth network environments. Its low 0.2dB insertion loss and precision engineering maintain signal integrity across these speeds, enabling reliable performance in data center and telecom infrastructure deployments.
How is this coupler installed in patch panels?
Installation is tool-free and straightforward using the top snap-in tabs. Simply insert the coupler into a standard patch panel opening and press until it snaps securely into place. This plug-and-play design eliminates the need for additional hardware or complex steps, reducing deployment time and minimizing installation errors.
What are the dimensions of this fiber coupler?
The coupler measures 1 inch (25.40 mm) in length, 0.50 inches (12.70 mm) in width, and 0.60 inches (15.24 mm) in height. This compact form factor allows it to fit standard patch panel openings without occupying excessive space, making it ideal for high-density rackmount installations where efficient use of space is important.
Does this coupler come with any warranty or support?
Yes, the product includes a 1-year limited warranty and is backed by StarTech's technical support. This support provides assistance with installation and compatibility questions, ensuring reliable operation and helping resolve any issues that may arise during deployment in structured cabling environments.
What does TAA compliance mean for this product?
TAA compliance indicates that this coupler meets the Trade Agreements Act requirements, making it eligible for certain government procurement contracts. This compliance ensures the product adheres to specific manufacturing and sourcing standards, which is important for installations in government facilities or projects with regulatory requirements.
