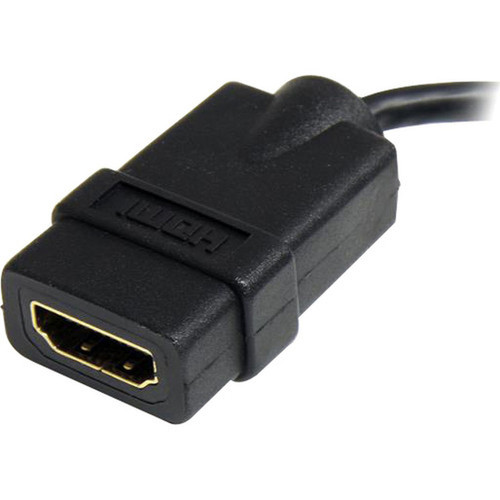

StarTech. com HDADFM5IN Micro HDMI to HDMI Adapter - 5in High Speed - 4K 30Hz - HDMI 1. 4b - Gold-Plated - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This adapter provides robust technical specifications to meet modern connectivity demands. It supports resolutions up to 4096 x 2160 (4K) at 30Hz and Full HD 1920x1080p at 120Hz, ensuring smooth playback for high-frame-rate content. The 10.2 Gbps bandwidth accommodates wide color gamuts and high dynamic range, while features like Audio Return Channel (ARC) and Consumer Electronics Control (CEC) enhance user convenience by allowing audio routing and device control through a single connection.
The construction includes 30 AWG wiring with Al-Mylar foil and copper braid shielding, which minimizes electromagnetic interference. Gold-plated 19-pin connectors on both ends improve corrosion resistance and signal transmission. HDCP 1.4 compliance ensures protected content playback, and the adapter is backward compatible with earlier HDMI versions, offering flexibility across various devices.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This adapter stands out with its combination of durability, performance, and versatility. The fully molded PVC jacket and flexible strain relief prevent fraying and damage from repetitive bending, making it suitable for rough usage in commercial settings. Gold-plated connectors ensure a reliable connection with minimal signal loss, while the EMI shielding protects against interference for clearer audio and video output.
High-Speed 4K Video
Delivers 4096 x 2160 resolution at 30Hz, supporting ultra-high-definition content for immersive viewing experiences on large screens.
- 10.2 Gbps bandwidth
- HDMI 1.4b compliant
- 3D video support
Durable Construction
Features a robust PVC jacket and strain relief to withstand frequent use, backed by a lifetime warranty for long-term reliability.
- Gold-plated connectors
- EMI shielding
- Commercial-grade design
Deployment / Use Cases
This Micro HDMI to HDMI adapter is versatile for both personal and professional applications. It connects Micro HDMI devices like smartphones, tablets, laptops, and DSLR cameras to HDMI-equipped displays such as TVs, monitors, and projectors. This enables users to view mobile content on larger screens, ideal for presentations, video editing, or entertainment.
In commercial environments, such as offices or retail spaces, the adapter supports extended use with its durable build. It is compatible with devices from brands like Samsung, Sony, Apple TV, Dell, and LG, making it a universal solution for upgrading display connectivity. Whether for streaming 4K videos, gaming at high refresh rates, or sharing photos from a camera, this adapter provides a reliable link between modern portable devices and standard display systems.
Mobile to Display Connectivity
Use with phones, tablets, or cameras to project content onto TVs or monitors, perfect for meetings or home entertainment.
Professional AV Setups
Integrate into commercial AV systems for presentations or digital signage, leveraging 4K support and durable construction.
Physical Profile
The adapter has a compact 5-inch (127 mm) length, making it easy to manage in tight spaces without excess cable clutter. It weighs only 0.71 ounces (20 grams), adding minimal bulk to setups. The black PVC jacket provides a sleek, professional appearance, while the flexible design allows for easy routing behind devices or in cable management systems. This lightweight and short profile is ideal for portable use or permanent installations where space efficiency is key.
- Weight
- 0.71 oz (20 g)
- Length
- 5" (127 mm)
Highlights
- Supports 4K video at 4096 x 2160 resolution and 30Hz refresh rate
- High-speed 10.2 Gbps bandwidth for smooth data transfer
- HDMI 1.4b compliant with backward compatibility to earlier versions
- Gold-plated Micro HDMI Type D male to HDMI Type A female connectors
- Durable PVC jacket with strain relief for commercial use
- EMI shielding with Al-Mylar foil and copper braid for signal integrity
- Features Audio Return Channel (ARC) and Consumer Electronics Control (CEC)
- Compatible with phones, tablets, laptops, cameras, TVs, and monitors
- Lifetime warranty for long-term reliability
- Environmentally friendly with RoHS, REACH, and WEEE compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | HDADFM5IN |
| Brand Name | StarTech.com |
| Product Name | 5in High Speed HDMI® Adapter Cable - HDMI to HDMI Micro - F/M |
| Packaged Quantity | 1 Each |
| Product Type | Video Cable Adapter |
| Technical Information | |
| Cable Type | HDMI |
| Cable Length | 5" (127 mm) |
| Connector Type on First End | HDMI Type A Digital Audio/Video - Female |
| Connector Gender on First End | Female |
| Connector on First End Details | 1 x 19-pin HDMI Type A Digital Audio/Video - Female |
| Connector Type on Second End | Micro HDMI Type D Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 19-pin Micro HDMI Type D Digital Audio/Video - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Device Supported | Projector,TV,Monitor,Notebook,Audio/Video Device,Cellular Phone,Tablet PC,Smartphone,Computer,HDTV |
| American Wire Gauge | 30 AWG |
| Data Transfer Rate | 10.2 Gbit/s |
| Supported Resolution | 4096 x 2160 |
| Features | Strain Relief,Flexible,Fray Resistant,Damage Resistant,EMI Protection,Audio Return Channel (ARC),Consumer Electronics Control (CEC),HDCP 1.4 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 0.71 oz (20 g) |
| Miscellaneous | |
| Compatibility | BlackBerry PlayBook Tablet PC |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What devices can I connect with this Micro HDMI to HDMI adapter?
This adapter connects Micro HDMI (Type-D) devices such as smartphones, tablets, laptops, and DSLR cameras to standard HDMI (Type-A) displays like TVs, monitors, and projectors. It is compatible with a wide range of brands including Samsung, Sony, Apple TV, Dell, and LG, making it versatile for personal and professional use.
Does this adapter support 4K video resolution?
Yes, the adapter supports 4K video at a resolution of 4096 x 2160 pixels and a refresh rate of 30Hz. It also handles Full HD 1920x1080p at 120Hz, ensuring high-quality video playback for streaming, gaming, and presentations on compatible displays.
What is the data transfer rate of this HDMI adapter?
The adapter offers a data transfer rate of 10.2 Gbps, providing sufficient bandwidth for high-definition audio and video signals. This speed supports features like wide color gamuts, 3D video, and multi-channel audio formats such as Dolby TrueHD without compression or lag.
How durable is this Micro HDMI to HDMI adapter?
Built for durability, the adapter features a fully molded PVC jacket with flexible strain relief to prevent fraying and damage from repetitive bending. Gold-plated connectors resist corrosion, and EMI shielding protects against interference. It is designed for commercial environments and backed by a lifetime warranty.
What HDMI version does this adapter use, and is it backward compatible?
This adapter uses the HDMI 1.4b standard, which includes support for Audio Return Channel (ARC), Consumer Electronics Control (CEC), and HDCP 1.4. It is backward compatible with earlier HDMI versions, ensuring it works with a broad range of devices and displays for flexible connectivity.
What is included in the warranty for this adapter?
The adapter comes with a lifetime limited warranty from StarTech.com, covering defects in materials and workmanship. This warranty provides long-term assurance for reliability, especially in commercial or heavy-use scenarios, and reflects the product's durable construction.
What resolution or display format is specified?
It features a display specification of 4096 x 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
