StarTech. com MDP2HD4K60S Mini DisplayPort to HDMI Adapter - Active mDP 1. 4 to HDMI 2. 0 Converter - 4K 60Hz UHD with 18Gbps - HDCP 2. 2 - 7. 1ch Audio
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

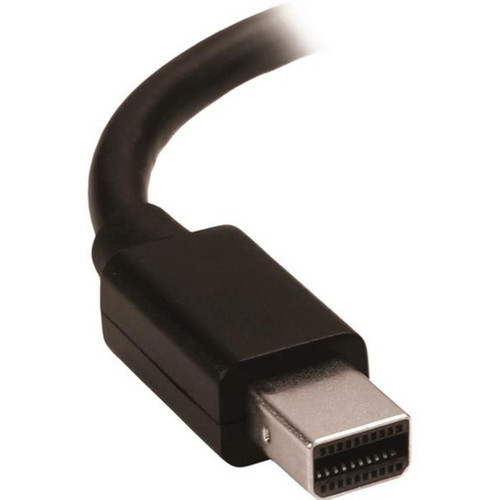

This adapter leverages Mini DisplayPort 1.4 and HDMI 2.0 specifications to deliver uncompromised 4K 60Hz performance. The 20-pin male Mini DisplayPort connector interfaces with source devices, while the 19-pin female HDMI port outputs to displays. Nickel-plated connectors enhance signal integrity and corrosion resistance, tested with HDMI cables up to 7 meters (23 feet) for flexible installation.
Backward compatibility ensures smooth operation with 1080p resolutions, while the active conversion circuitry maintains signal stability across varying cable lengths. No external drivers or software are required—the adapter functions plug-and-play across macOS, Windows, and Ubuntu operating systems.
This section brings together practical product details such as Connector Type on First End, Connector on First End Details, Connector Type on Second End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The MDP2HD4K60S stands out with its robust feature set tailored for demanding AV setups. Its active design ensures reliable 4K 60Hz conversion without signal degradation, while nickel-plated connectors provide durable, high-quality connections. The adapter’s compact form factor and lightweight construction make it highly portable for mobile professionals.
Universal Compatibility
Works with Thunderbolt 1 and 2 MacBooks, Microsoft Surface Pro models 1 through 6, AMD FirePro and NVIDIA Quadro desktops, laptops, mini-ITX systems, Intel NUC devices, and docking stations. Supports mDP and mDP++ sources.
- No driver installation needed
- Cross-platform OS support
Enhanced Productivity
Enables multi-monitor setups or connects to HDMI displays for expanded screen real estate. Ideal for extending desktops, mirroring presentations, or adding a secondary display to workstations.
- Compact design for easy transport
- Simplifies AV integration
Deployment / Use Cases
This adapter is engineered for scenarios where Mini DisplayPort sources need to interface with HDMI displays. Common deployments include connecting modern laptops like MacBook Air or Microsoft Surface Pro to 4K monitors or TVs for high-resolution content creation, video editing, or gaming.
In corporate environments, it facilitates presentations by linking laptops to conference room projectors or large-format displays. Home office users benefit from dual-monitor configurations, boosting productivity by extending desktops across multiple screens. The adapter also serves as a reliable solution for legacy system upgrades, enabling older Mini DisplayPort-equipped devices to output to newer HDMI monitors.
Physical Profile
The adapter features a sleek black housing that blends discreetly into any setup. Its lightweight design at just 0.39 ounces (11 grams) and compact footprint ensure minimal desk clutter and easy portability. The integrated 5.8-inch (15 cm) attached cable provides flexibility without bulk, while nickel-plated connectors offer a premium finish that resists wear.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.39 oz (11 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 0.39 oz (11 g)
Highlights
- Active Mini DisplayPort 1.4 to HDMI 2.0 adapter supports 4K UHD at 60Hz
- 18 Gbps bandwidth ensures high-resolution video and 7.1-channel audio transmission
- HDCP 2.2 and DPCP compliance for protected content playback
- Nickel-plated connectors enhance signal quality and durability
- Plug-and-play operation with macOS, Windows, and Ubuntu—no drivers needed
- Compatible with Thunderbolt 1/2 MacBooks, Microsoft Surface Pro 1-6, desktops, laptops
- Compact, lightweight design with 5.8-inch attached cable for portability
- Backward compatible with 1080p resolutions for versatile use
- Tested with HDMI cables up to 23 feet (7 meters) for extended reach
- 3-year limited warranty and EU RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MDP2HD4K60S |
| Brand Name | StarTech.com |
| Product Name | Mini DisplayPort to HDMI Adapter - 4K mDP to HDMI Converter - UHD 4K 60Hz |
| Packaged Quantity | 1 Each |
| Product Type | Video Adapter |
| Technical Information | |
| Connector Type on First End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on First End Details | 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video - Female |
| Connector on Second End Details | 1 x 19-pin HDMI 2.0 Digital Audio/Video - Female |
| Connector Plating | Nickel |
| Features | Active,DPCP |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 0.39 oz (11 g) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
Is this an active or passive Mini DisplayPort to HDMI adapter?
This is an active adapter, meaning it includes internal circuitry to convert Mini DisplayPort 1.4 signals to HDMI 2.0. Active design ensures reliable 4K 60Hz performance, supports HDCP 2.2 for content protection, and maintains signal integrity over longer cable runs up to 7 meters.
Which devices are compatible with this mDP to HDMI converter?
The adapter works with Mini DisplayPort (mDP) and mDP++ sources, including Thunderbolt 1 and 2 MacBooks (like MacBook Air, Mac Mini), Microsoft Surface Pro models 1 through 6, desktops with AMD FirePro or NVIDIA Quadro graphics, laptops, mini-ITX computers, Intel NUC devices, and various docking stations.
Does this adapter require drivers or software installation?
No drivers or software are needed. The adapter functions as a plug-and-play device, working immediately with operating systems including macOS, Windows, and Ubuntu. This simplifies setup and ensures broad compatibility across different computing environments.
What audio capabilities does this video adapter provide?
It supports 7.1-channel audio pass-through alongside video, delivering immersive sound for movies, games, and presentations. The HDMI 2.0 interface carries both high-resolution video and multi-channel audio through a single connection to compatible displays or audio systems.
What is the warranty and environmental compliance for this product?
StarTech.com provides a 3-year limited warranty for reliability assurance. The adapter is environmentally friendly, complying with EU RoHS standards, Restriction of Hazardous Substances (RoHS) 2, REACH, and WEEE directives, reflecting a commitment to sustainable manufacturing practices.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
What input or connectivity options are listed?
1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male.
Does the display support VESA mounting or adjustment features?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
