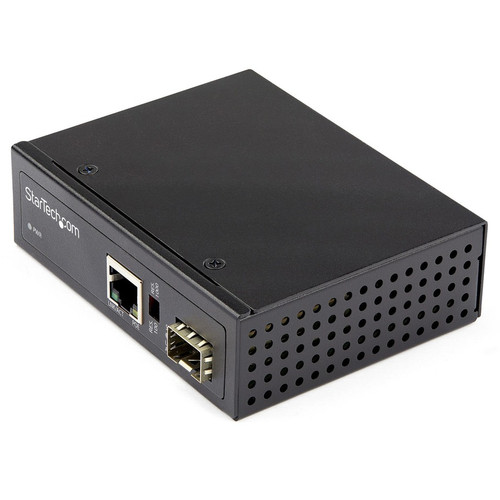

StarTech. com IMC1GSFP60W PoE+ Industrial Fiber to Ethernet Media Converter - 60W - SFP to RJ45 - Gigabit - DIN/Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This industrial media converter features a single open SFP slot for fiber input and one RJ45 port for copper Ethernet output with PoE+ power delivery. It supports Gigabit Ethernet speeds (10/100/1000 Mbps) and is compatible with IEEE 802.3af/at standards, delivering up to 60W of PSE power to powered devices.
The converter maintains full-duplex operation with support for jumbo frames up to 16K, optimizing performance for video surveillance and data-intensive applications. With a mean time between failures (MTBF) exceeding 500,000 hours at 50°C, it provides reliable operation in continuous-use scenarios.
Relevant factors for this section include Total Number of Ports, Network (RJ-45), Number of PoE (RJ-45) Ports, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This media converter combines fiber conversion with high-power PoE+ delivery in a single industrial-grade unit, eliminating the need for separate power injectors in remote installations. The flexible power input options allow deployment in locations where standard AC power may not be available or practical.
Robust Industrial Design
The IP-30 aluminum enclosure provides protection against dust and accidental contact while withstanding harsh environmental conditions including vibration, shock, and extreme temperatures.
- MTBF >500,000 hours @ 50°C
- Vibration and shock rated
- Free fall tested
Flexible Fiber Compatibility
The open SFP slot accepts any MSA-compliant SFP module, allowing you to match the exact fiber type and distance requirements of your installation without being locked into proprietary transceivers.
- Single-mode or multi-mode support
- Distance determined by SFP module
- Easy fiber type migration
Deployment / Use Cases
This industrial media converter is ideal for extending network connections beyond the 100-meter limitation of standard copper Ethernet while providing power to remote devices. It's commonly deployed in surveillance systems, industrial automation networks, and outdoor wireless installations where both data connectivity and device power are required at distant locations.
The DIN rail mounting capability makes it perfect for integration into control panels and industrial racks, while the wall-mount option provides flexibility for smaller installations. The terminal block power input allows direct connection to industrial DC power sources, eliminating the need for additional power adapters in many scenarios.
Industrial Surveillance
Extend fiber backbone connections to remote PoE+ cameras in manufacturing facilities, warehouses, or outdoor perimeter security systems where both long-distance connectivity and camera power are needed.
Outdoor Wireless Networks
Connect remote wireless access points or bridges via fiber while providing PoE+ power, enabling network expansion across campuses, parking lots, or between buildings without separate power infrastructure.
Physical Profile

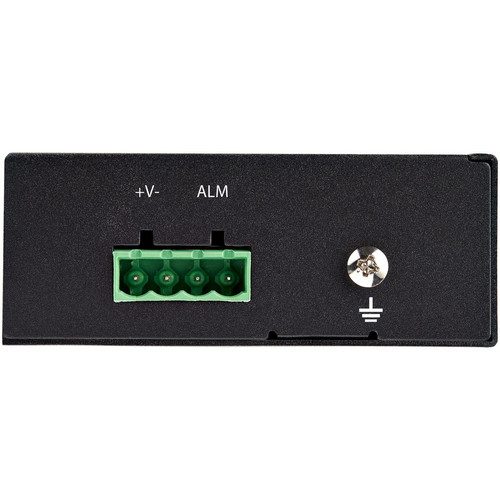

The compact industrial enclosure measures 3.20" wide × 4.10" deep × 1.30" high (81.28 × 104.14 × 33.02 mm) and weighs approximately 5.4 ounces (153.09 g). The DIN rail mounting clip and wall-mount slots are integrated into the design, allowing flexible installation in control cabinets, equipment racks, or directly on walls. The terminal block power connector and Type-N barrel jack provide dual power input options for different deployment scenarios.
- Width
- 3.20" (81.28 mm)
- Depth
- 4.10" (104.14 mm)
- Height
- 1.30" (33.02 mm)
- Weight
- 5.40 oz (153.09 g)
What's in the Box
The package includes everything needed for immediate deployment in most industrial environments.
Highlights
- Converts fiber to copper Ethernet with PoE+ power delivery
- Provides up to 60W of PSE power for PoE/PoE+/PoE++ devices
- Open SFP slot accepts any MSA-compliant single/multi-mode modules
- Industrial IP-30 aluminum housing for harsh environments
- Operates from -40°C to 75°C with high MTBF reliability
- DIN rail or wall mounting with included hardware
- Flexible power via terminal block (48-56VDC) or Type-N barrel
- Supports Gigabit Ethernet with 16K jumbo frames
- Backed by 2-year StarTech.com warranty with technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IMC1GSFP60W |
| Brand Name | StarTech.com |
| Product Name | Transceiver/Media Converter |
| Packaged Quantity | 1 Each |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode,Single-mode |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-TX,100Base-TX,100Base-T |
| Power Description | |
| Power Source | PoE+ |
| Power Consumption | 60 W |
| Plug/Connector Type | Terminal Block (3 Wire),Type N |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable,Wall Mountable |
| Height | 1.30" (33.02 mm) |
| Width | 3.20" (81.28 mm) |
| Depth | 4.10" (104.14 mm) |
| Weight (Approximate) | 5.40 oz (153.09 g) |
| Miscellaneous | |
| Package Contents | Transceiver/Media Converter Mounting Hardware Kit Quick-Start Guide Terminal Block to Barrel Power Connector Adapter Terminal Block |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What types of fiber connections does this media converter support?
The IMC1GSFP60W features an open SFP slot that accepts any MSA-compliant SFP module, allowing support for both single-mode and multi-mode fiber connections. The specific fiber type and maximum distance are determined by the SFP module you install, providing flexibility to match your existing fiber infrastructure or distance requirements.
How much PoE power can this converter deliver to connected devices?
This industrial media converter delivers up to 60W of PoE+ power following IEEE 802.3at standards. It provides Power Sourcing Equipment (PSE) functionality and is compatible with Powered Devices (PD) that support PoE (802.3af), PoE+ (802.3at), and PoE++ standards, making it suitable for powering high-demand devices like PTZ cameras, wireless access points, and industrial sensors.
What are the power input options for this media converter?
The converter offers two power input methods: a terminal block for hardwiring to 48-56VDC power sources commonly found in industrial settings, and a Type-N barrel jack for use with standard wall adapters (adapter not included). This dual-input design provides deployment flexibility in locations where different power sources are available.
Is this media converter suitable for outdoor or harsh environment installations?
Yes, the IMC1GSFP60W is designed for industrial environments with an IP-30 rated aluminum housing that protects against dust and accidental contact. It operates reliably in temperatures from -40°C to 75°C, withstands vibration and shock, and has been tested for free fall resistance. These features make it appropriate for factory floors, outdoor enclosures, and other demanding locations.
What mounting options are available for this converter?
This media converter supports both DIN rail mounting for integration into industrial control panels and equipment racks, and wall mounting for direct surface installation. The necessary mounting hardware is included in the package, allowing immediate deployment in various configurations without requiring additional components.
What warranty and support comes with this StarTech.com product?
The IMC1GSFP60W is backed by a 2-year warranty from StarTech.com, which includes free 24/5 technical support from North America-based multilingual technicians. This support coverage ensures assistance with installation, configuration, and troubleshooting throughout the warranty period, providing confidence in your deployment.
