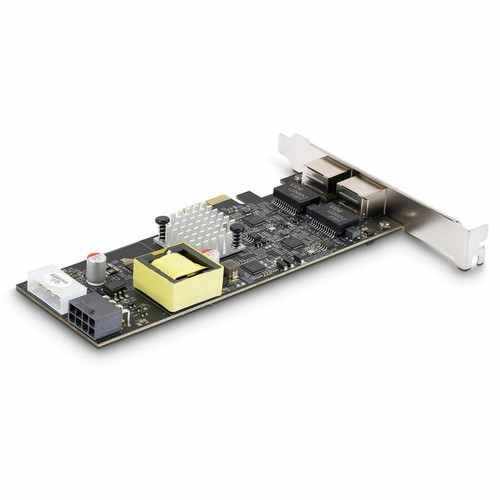

StarTech.com PR22GIP-NETWORK-CARD 2-Port 2.5Gbps PCI Express PoE Network Card - Dual Intel I225-V - 802.3af/at PoE+ - Multi-Gigabit Ethernet NIC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built around the Intel I225-V chipset, this network card achieves a maximum data transfer rate of 2.5 Gbit/s using 2.5GBase-T technology. It operates over cost-effective twisted-pair cables up to 100 meters, balancing performance with infrastructure efficiency.
The card installs into a PCI Express 2.0 x2 slot, providing sufficient bandwidth to handle the aggregated throughput of both ports. Advanced networking features include Jumbo Frames support for reduced CPU overhead, PXE boot capability for diskless environments, Wake on LAN (WOL) for remote management, and VLAN Tagging for network segmentation.
Relevant factors for this section include Chipset Manufacturer, Chipset Model, Features, Host Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This network card consolidates two high-speed Ethernet ports into a single expansion slot, optimizing slot usage while doubling network connectivity. Its PoE+ support eliminates the need for separate power adapters for compatible devices, simplifying deployments and reducing cable clutter.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Bandwidth, Enterprise Features.
Enhanced Bandwidth
Delivers 2.5Gbps per port, providing up to 5Gbps of aggregate bandwidth for demanding applications like video editing, virtualization, or network storage transfers.
- 2.5GBase-T technology
- Twisted-pair cable support up to 100m
Enterprise Features
Includes Jumbo Frames, VLAN Tagging, PXE, and Wake on LAN to support professional IT environments and remote management workflows.
- Reduces CPU overhead
- Enables network booting
Deployment / Use Cases
Ideal for upgrading older systems to multi-gigabit speeds, this card is commonly deployed in workstations handling large file transfers, servers requiring additional network interfaces, or PCs used for network-intensive tasks like gaming or media streaming.
Its PoE+ capability makes it suitable for powering IP surveillance cameras, VoIP phones, or wireless access points directly from the network card, reducing installation complexity in office or small business environments. The low-profile bracket allows installation in compact or slim chassis, expanding its applicability to space-constrained setups.
Workstation Upgrade
Adds high-speed connectivity to desktops for faster access to NAS devices or cloud services, improving productivity in creative or technical roles.
PoE Device Integration
Powers and connects PoE-enabled devices without separate power supplies, ideal for streamlined deployments in retail, hospitality, or education settings.
Physical Profile
The card features a black plug-in card form factor with a low-profile bracket included for compatibility with smaller chassis. Its compact dimensions of 0.80" height and 4.80" width ensure it fits standard PCIe slots while the lightweight design minimizes strain on the motherboard.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: Low Profile, 4.80" (121.92 mm), 3.92 oz (111 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.80" (121.92 mm)
- Height
- Low Profile
- Weight
- 3.92 oz (111 g)
What's in the Box
The package includes all necessary components for immediate installation and use.
Highlights
- Dual-port 2.5Gbps PCI Express network card with Intel I225-V chipsets
- Supports 802.3af/at PoE+ for powering connected devices
- 2.5GBase-T technology over twisted-pair cables up to 100 meters
- PCI Express 2.0 x2 host interface for ample bandwidth
- Includes low-profile bracket for compact chassis compatibility
- Features Jumbo Frames, PXE, Wake on LAN, and VLAN Tagging
- Black plug-in card form factor with precise dimensions
- Backed by a 2-year limited warranty and RoHS/WEEE compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PR22GIP-NETWORK-CARD |
| Brand Name | StarTech.com |
| Product Name | 2.5Gigabit Ethernet Card |
| Packaged Quantity | 1 |
| Product Type | 2.5Gigabit Ethernet Card |
| Technical Information | |
| Chipset Manufacturer | Intel |
| Chipset Model | I225-V |
| Features | Jumbo Frames Support,PXE Support,Wake on LAN (WOL),VLAN Tagging |
| Interfaces/Ports | |
| Host Interface | PCI Express 2.0 x2 |
| Total Number of Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Data Transfer Rate | 2.50 Gbit/s |
| Network & Communication | |
| Network Technology | 2.5GBase-T |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Plug-in Card |
| Bracket Height | Low Profile |
| Height | 0.80" (20.32 mm) |
| Width | 4.80" (121.92 mm) |
| Weight (Approximate) | 3.92 oz (111 g) |
| Miscellaneous | |
| Package Contents | 2.5Gigabit Ethernet Card 1 x Low Profile Bracket 1 x Quick-Start Guide |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum data transfer rate of this network card?
The StarTech.com PR22GIP-NETWORK-CARD supports a maximum data transfer rate of 2.50 Gbit/s per port using 2.5GBase-T technology. This provides multi-gigabit performance over standard twisted-pair Ethernet cables, offering a significant speed increase over traditional 1Gbps connections while maintaining compatibility with existing cabling infrastructure.
Does this card support Power over Ethernet (PoE)?
Yes, this network card supports both 802.3af and 802.3at PoE+ standards. It can deliver up to 30W of power per port to connected PoE-enabled devices such as IP cameras, VoIP phones, or wireless access points, eliminating the need for separate power adapters and simplifying installation in various deployment scenarios.
What type of PCI Express slot is required for installation?
This card requires a PCI Express 2.0 x2 slot or larger (such as x4, x8, or x16) for installation. The x2 interface provides sufficient bandwidth to handle the aggregated throughput of both 2.5Gbps ports. It is backward compatible with PCIe 1.0 and 1.1 slots, though maximum performance may be limited in those configurations.
What advanced networking features does this card include?
The card includes Jumbo Frames support for reduced CPU overhead during large data transfers, PXE (Preboot Execution Environment) for network booting, Wake on LAN (WOL) for remote power management, and VLAN Tagging for network segmentation. These features make it suitable for enterprise environments, virtualization hosts, and managed workstation deployments.
Is a low-profile bracket included with this network card?
Yes, the package includes both a standard bracket and a low-profile bracket. The low-profile bracket allows installation in compact or slim chassis that require half-height expansion cards, while the standard bracket is suitable for full-size desktop towers. This dual-bracket approach ensures compatibility with a wide range of computer cases.
What type of warranty does this product come with?
StarTech.com provides a 2-year limited warranty for this network card, covering defects in materials and workmanship under normal use. The product also complies with RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment Directive) environmental standards, ensuring responsible manufacturing and disposal practices.
