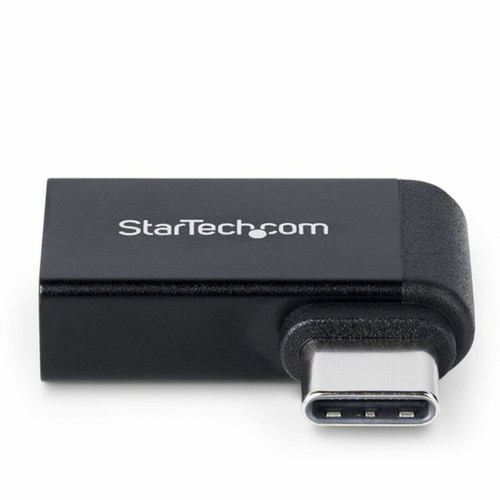

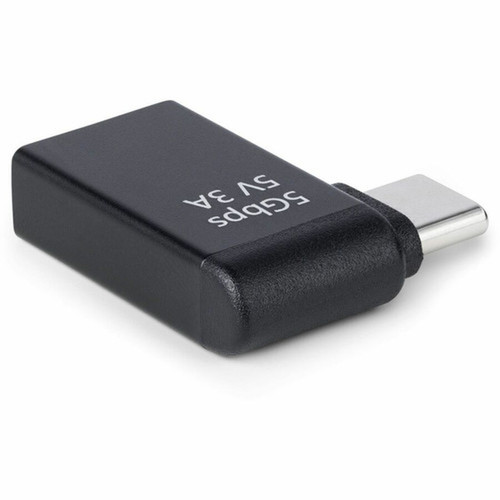

StarTech. com USB31CAADGCPRA Right Angle USB-C Male to USB-A Female Adapter - USB 5Gbps - Compact Aluminum Housing - Plug and Play
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This adapter implements a USB 3.2 (Gen 1) Type C male connector on the host side with a 24-pin configuration, paired with a USB 2.0 Type A female connector on the device side using a 4-pin layout. The nickel plating on both connectors enhances conductivity and corrosion resistance for long-term reliability.
The adapter operates as a passive device with plug-and-play functionality across Windows, macOS, Linux, and Chrome OS environments. It supports USB SuperSpeed data transfer at 5Gbps while maintaining compatibility with legacy USB 480Mbps devices. Power delivery is limited to 5V/3A output from USB-A chargers, without support for USB-C Power Delivery or video transmission protocols.
This section brings together practical product details such as Adapter Type, Connector Type on First End, Connector on First End Details, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This adapter combines compact form factor with durable construction for reliable daily use in professional and personal computing environments.
Space-Efficient Design
The right-angled connector and slim aluminum housing prevent obstruction of adjacent ports, ideal for tight installations with bottom or rear-facing USB-C ports.
- Reduces cable strain
- Maintains port accessibility
- Compact footprint
Durable Construction
Aluminum alloy housing provides impact and wear resistance, while nickel-plated connectors ensure consistent electrical contact through repeated insertions.
- Aluminum housing
- Nickel-plated connectors
- Enhanced durability
Broad Compatibility
Works with USB-C hosts and USB-A devices across operating systems, supporting both high-speed data transfer and basic charging needs.
- USB 3.2 Gen 1 compatible
- USB 2.0 backward compatible
- OS independent
Deployment / Use Cases
This adapter is particularly valuable in environments where space optimization and cable management are priorities. The right-angled design makes it suitable for mounted devices, docking stations, and compact workstations where straight connectors would create clearance issues.
Common deployment scenarios include connecting USB-A peripherals to modern USB-C laptops, extending charging capabilities from USB-A power sources to USB-C devices, and integrating legacy USB 2.0 devices into USB 3.2 Gen 1 systems without sacrificing speed for compatible devices.
Mobile Workstation Integration
Connect USB-A keyboards, mice, and storage devices to USB-C laptops while maintaining a clean desk setup with minimal cable protrusion.
Mounted Device Connectivity
Ideal for kiosks, digital signage, or wall-mounted displays where rear-facing USB-C ports require low-profile connections to avoid cable stress.
Physical Profile
The adapter measures 0.50 inches in height, 1 inch in width, and 0.80 inches in length, with a weight of approximately 0.20 ounces. The black aluminum housing provides a professional appearance while offering structural integrity. The compact dimensions ensure minimal footprint when connected, and the right-angled orientation allows for flush installation against device surfaces.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.50" (12.70 mm), 1" (25.40 mm), 0.20 oz (5.67 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 1" (25.40 mm)
- Height
- 0.50" (12.70 mm)
- Weight
- 0.20 oz (5.67 g)
- Length
- 0.80" (20.32 mm)
Highlights
- Right-angled USB-C male to USB-A female adapter for space-constrained installations
- Supports USB 3.2 Gen 1 data transfer speeds up to 5Gbps
- Backward compatible with USB 2.0 devices at 480Mbps
- Provides up to 15W charging from USB-A power sources
- Durable aluminum housing with nickel-plated connectors
- Plug-and-play operation requires no drivers
- Compatible with Windows, macOS, Linux, and Chrome OS
- Compact dimensions: 0.50" H × 1" W × 0.80" L
- Black color matches professional equipment
- 2-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | USB31CAADGCPRA |
| Brand Name | StarTech.com |
| Product Name | USB-C to Right Angle USB-A Adapter - M/F |
| Packaged Quantity | 1 |
| Product Type | Data Transfer Adapter |
| Technical Information | |
| Adapter Type | USB/USB-C |
| Connector Type on First End | USB 3.2 (Gen 1) Type C - Male |
| Connector on First End Details | 1 x 24 pin USB 3.2(Gen1) Type C - Male |
| Connector Type on Second End | USB 2.0 Type A |
| Connector on Second End Details | 1 x 4 pin USB 2.0 Type A - Female |
| Connector Plating | Nickel |
| Features | Plug and Play,Wear Resistant,Tear Resistant,Passive,Charging,Right-angled Connector |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Aluminum |
| Height | 0.50" (12.70 mm) |
| Width | 1" (25.40 mm) |
| Length | 0.80" (20.32 mm) |
| Weight (Approximate) | 0.20 oz (5.67 g) |
| Miscellaneous | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What data transfer speeds does this USB-C to USB-A adapter support?
This adapter supports USB 3.2 Gen 1 data transfer speeds up to 5 gigabits per second (Gbps) when connected between compatible devices. It maintains backward compatibility with USB 2.0 devices, operating at 480 megabits per second (Mbps) for legacy peripherals. The nickel-plated connectors ensure consistent signal integrity at both speed tiers.
Can this adapter charge USB-C devices from a USB-A power source?
Yes, the adapter supports charging USB-C devices from USB-A power sources with up to 5 volts at 3 amps, delivering a maximum of 15 watts. This is suitable for smartphones, tablets, and other portable electronics. Note that it does not support USB-C Power Delivery (PD) protocols, so charging speeds are limited to basic USB-A capabilities.
Why is the right-angled design beneficial for this type of adapter?
The right-angled connector reduces cable strain and port stress by directing the cable parallel to the device surface rather than perpendicular. This is particularly valuable in tight installations, mounted equipment, or situations where adjacent ports must remain accessible. The design also helps prevent accidental disconnection from minor impacts or cable movement.
What materials are used in the construction of this adapter?
The adapter features an aluminum alloy outer housing that provides durability and wear resistance. The USB-C and USB-A connectors are nickel-plated to enhance conductivity and prevent corrosion. This combination ensures reliable performance through repeated insertions while maintaining a professional black finish that matches most computing equipment.
Does this adapter support video transmission or USB-C Power Delivery?
No, this adapter does not support video transmission protocols like DisplayPort Alt Mode or HDMI over USB-C. It also does not support USB-C Power Delivery (PD) for higher-wattage charging. The adapter is designed specifically for data transfer up to 5Gbps and basic 15W charging from USB-A sources, making it ideal for peripheral connectivity rather than display or high-power applications.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
What input or connectivity options are listed?
USB 3.2 (Gen 1) Type C - Male.
Does the display support VESA mounting or adjustment features?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
