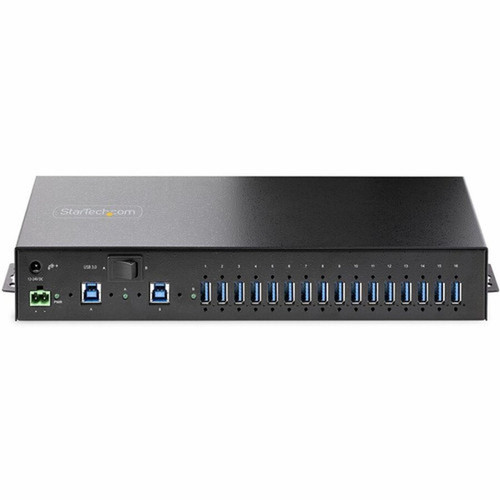

StarTech.com S5G16AINDS-USB-A-HUB 16-Port Industrial USB 5Gbps Hub with Power Adapter - Mountable - Terminal Block Power - USB Charging - Dual-Host
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This USB hub operates on the USB 3.2 Gen 1 standard, ensuring backward compatibility with USB 2.0 and 1.1 devices while maximizing throughput for modern peripherals. The host connection is made through a USB 3.2 (Gen 1) Type B port, linked by the included 10-foot USB-A to USB-B cable, providing ample reach for installation flexibility.
Power management is a core feature, with the hub supporting BC 1.2 charging when connected to the power adapter. It allocates 120W shared across all 16 ports, enabling simultaneous charging at up to 1.5A/7.5W per port, or up to 8 ports at 2.0A/10W charging. The dual-host switch functionality allows connection to two separate computers, with a manual rocker switch for seamless switching between primary hosts, ideal for shared workstation setups or failover scenarios.
Key Product Advantages
This industrial USB hub stands out with its combination of high port density, robust build quality, and versatile deployment options, making it a reliable solution for expanding USB connectivity in controlled environments.
Industrial Durability
The metal housing and Level 4 ESD protection ensure reliable operation in harsh conditions, protecting connected devices from electrostatic discharge and physical stress.
- Steel and metal construction
- 15kV air/8kV contact ESD protection
- Screw-lock-enabled ports for secure connections
Flexible Power & Charging
With the included 160W power adapter and terminal block connection, the hub delivers consistent power and supports BC 1.2 charging for connected devices.
- 160W power adapter included
- BC 1.2 charging support
- 120W shared power across ports
- Optional power redundancy via DC barrel jack
Versatile Mounting
Designed for multiple installation types, it includes mounting brackets for DIN rail, wall, desk, and EIA-310 compliant 1U 19" rackmount setups.
- DIN rail mounting hardware
- Built-in mounting ears
- EIA-310 compliant rack brackets
- Desktop placement option
Deployment / Use Cases
The StarTech.com 16-port USB hub is ideal for environments where multiple USB devices need centralized, reliable connectivity. Its industrial design and mounting flexibility make it suitable for integration into control panels, kiosks, point-of-sale systems, and lab equipment, where space optimization and durability are priorities.
In office or workstation settings, the dual-host switch allows IT administrators to manage two computers from a single hub, simplifying device sharing or providing a quick failover option. The hub's charging capabilities support powering and syncing peripherals like barcode scanners, card readers, keyboards, and mobile devices, reducing cable clutter and enhancing workflow efficiency in retail, manufacturing, or data entry applications.
Physical Profile
With compact dimensions of 0.20" height, 1.20" width, and 0.50" length, and a weight of 2.40 lb, this hub is designed for space-efficient installations. The black steel and metal finish provides a professional appearance, while the form factor supports DIN rail, wall, rack, or desktop mounting, allowing it to blend seamlessly into industrial cabinets, server racks, or workstation setups without occupying excessive space.
- Width
- 1.20" (30.48 mm)
- Height
- 0.20" (5.08 mm)
- Weight
- 2.40 lb (1088.62 g)
- Length
- 0.50" (12.70 mm)
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-the-box experience.
Highlights
- 16 USB-A ports with USB 3.2 Gen 1 and 5Gbps shared bandwidth
- Industrial metal housing with Level 4 ESD protection for harsh environments
- Includes 160W power adapter with terminal block connection and overcurrent protection
- Supports BC 1.2 charging with 120W shared power across all ports
- Dual-host switch for connecting two computers with manual switching
- Flexible mounting options: DIN rail, wall, rack, or desktop
- Screw-lock-enabled connectors on all ports for secure connections
- 10-foot USB-A to USB-B host cable included for extended reach
- TAA compliant for government and institutional procurement
- 2-year limited warranty for reliable long-term use
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | S5G16AINDS-USB-A-HUB |
| Brand Name | StarTech.com |
| Product Name | USB Hub |
| Packaged Quantity | 1 |
| Product Type | USB Hub |
| Technical Information | |
| Host Interface | USB 3.2 (Gen 1) Type B |
| Media & Performance | |
| Data Transfer Rate | 640 MB/s |
| Interfaces/Ports | |
| Total Number of USB Ports | 16 |
| USB Version | 3.2 Gen 1 |
| USB Connector Type | Type-A,Type-B |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel,Metal |
| Form Factor | DIN Rail/Wall/Rack/Desktop Mountable |
| Height | 0.20" (5.08 mm) |
| Width | 1.20" (30.48 mm) |
| Length | 0.50" (12.70 mm) |
| Weight (Approximate) | 2.40 lb (1088.62 g) |
| Miscellaneous | |
| Package Contents | USB Hub 1 x 10 ft [3 m] USB-A to USB-B Cable 1 x Terminal Block Connector (Attached) 2 x DIN Rail Mounting Brackets (with Mounting Screws) 1 x 160W Power Adapter (160W-POWER-ADAPTER) 1 x Quick-Start Guide (5G16AINDS-USB-A-HUB) 1 x Quick-Start Guide (160W-POWER-ADAPTER) |
| Application/Usage | Desktop,Notebook |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the data transfer speed of this USB hub?
This hub supports USB 3.2 Gen 1, providing a data transfer rate of up to 640 MB/s (5Gbps). It is backward compatible with USB 2.0 and 1.1 devices, ensuring high-speed connectivity for modern peripherals while maintaining functionality with older equipment.
How many devices can be charged simultaneously with this hub?
When connected to the included 160W power adapter, the hub supports charging up to 16 devices simultaneously at a maximum of 1.5A/7.5W per port. Alternatively, it can charge up to 8 ports at 2.0A/10W each, providing flexible power distribution based on your charging needs.
What mounting options are available for this industrial USB hub?
This hub offers versatile mounting with included hardware for DIN rail, wall, desk, and EIA-310 compliant 1U 19" rack installations. The built-in mounting ears and screw-lock connectors facilitate secure, reliable connections in various industrial, commercial, or office environments.
Does this hub include a power adapter, and what are its specifications?
Yes, a 160W power adapter is included, featuring a DC 2-wire terminal block connection for robust power delivery. It provides overcurrent protection to safeguard connected devices and includes a DC barrel jack for optional power redundancy, ensuring consistent operation in critical setups.
What is the dual-host switch feature, and how does it work?
The dual-host switch allows the hub to connect to two separate desktop or laptop computers via a 2-port host switch. A manual rocker switch enables seamless switching between the primary host devices, making it ideal for shared workstations, IT management, or failover scenarios without reconnecting peripherals.
Is this USB hub suitable for industrial environments?
Yes, with a steel and metal housing, Level 4 ESD protection (15kV air/8kV contact), and screw-lock connectors, this hub is designed for durability in harsh industrial settings. It resists electrostatic discharge and physical stress, ensuring reliable performance in manufacturing, control panels, or outdoor kiosks.
