StarTech.com ST7200USBM Mountable Rugged Industrial 7-Port USB 2.0 Hub - Wall/DIN Rail Mountable with ESD & Surge Protection
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This industrial USB hub operates at USB 2.0 specifications with a maximum data transfer rate of 480 MB/s per port. The host connection utilizes a USB Type B interface with a screw-lock mechanism for secure cable retention. All seven downstream ports support simultaneous operation at full USB 2.0 bandwidth.
Electrical protection includes 15kV air gap and 8kV contact ESD protection on all ports, plus 350W surge protection on both upstream and downstream connections. The hub accepts wide-range DC power input from 7 to 24 volts through its terminal block connector, providing flexibility for different industrial power environments.
Relevant factors for this section include Host Interface, Data Transfer Rate. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ST7200USBM stands out with industrial-grade durability and protection features rarely found in standard USB hubs. Its combination of mounting flexibility, electrical protection, and wide power input range makes it ideal for environments where reliability is critical.
Industrial Mounting Flexibility
Includes both built-in mounting brackets for wall installation and a DIN rail mounting bracket for industrial rack systems, allowing secure placement in control panels, machinery enclosures, or equipment racks.
- Built-in wall mounting brackets
- Included DIN rail adapter
- Screw-lock USB cable retention
Comprehensive Electrical Protection
Protects connected devices with dual-layer ESD protection (15kV air/8kV contact) and 350W surge protection on all ports, preventing damage from industrial electrical noise and power fluctuations.
- ESD protection on all ports
- 350W surge protection
- Wide-range DC power input
Deployment / Use Cases
This industrial USB hub excels in environments where standard consumer USB hubs would fail. Its rugged construction and protection features make it suitable for manufacturing facilities, industrial control systems, laboratory equipment, and commercial installations where USB devices need expansion in harsh conditions.
Common applications include connecting multiple USB peripherals to industrial PCs in control rooms, expanding USB ports on point-of-sale systems in retail environments, or providing USB connectivity for diagnostic equipment in automotive or manufacturing settings. The DIN rail mounting capability makes it particularly valuable for integration into existing industrial control panels and equipment racks.
Industrial Control Systems
Mount directly in control panels to connect USB peripherals like keyboards, mice, barcode scanners, or diagnostic tools to industrial computers without compromising protection or reliability.
Commercial Installations
Secure wall mounting in retail, hospitality, or office environments where USB ports need expansion for multiple devices while maintaining protection against electrical surges.
Physical Profile
The hub features a compact black industrial enclosure measuring 5.20" long × 2.40" wide × 1.40" high (132.08 × 60.96 × 35.56 mm), with a weight of approximately 9.98 oz (283 g). The design includes integrated mounting points on the bottom and sides for flexible installation options. The black finish provides a professional appearance suitable for both industrial and commercial environments.
- Width
- 2.40" (60.96 mm)
- Height
- 1.40" (35.56 mm)
- Weight
- 9.98 oz (283 g)
- Length
- 5.20" (132.08 mm)

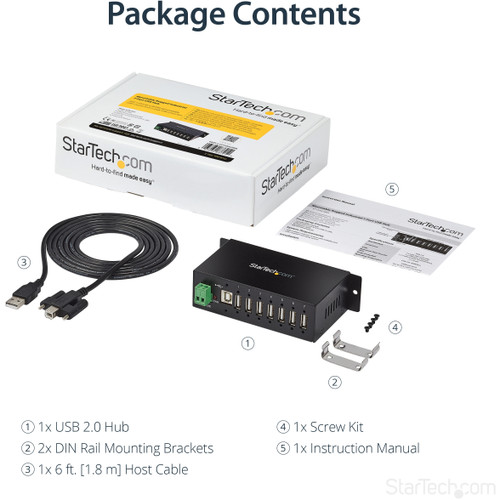

What's in the Box
The package includes everything needed for immediate deployment in various installation scenarios.
Highlights
- Adds 7 USB 2.0 ports from a single USB connection
- 15kV air and 8kV contact ESD protection on all ports
- 350W surge protection for upstream and downstream connections
- Wall mountable with built-in brackets or DIN rail mountable with included adapter
- 7-24V DC terminal block for flexible industrial power input
- 480 MB/s data transfer rate per port
- Screw-lock USB cable for secure connection
- Rugged industrial design for harsh environments
- TAA compliant and EU RoHS certified
- 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST7200USBM |
| Brand Name | StarTech.com |
| Product Name | Mountable Rugged Industrial 7 Port USB 2.0 Hub |
| Packaged Quantity | 1 Each |
| Product Type | USB Hub |
| Technical Information | |
| Host Interface | USB Type B |
| Media & Performance | |
| Data Transfer Rate | 480 MB/s |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 7 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | External |
| Height | 1.40" (35.56 mm) |
| Width | 2.40" (60.96 mm) |
| Length | 5.20" (132.08 mm) |
| Weight (Approximate) | 9.98 oz (283 g) |
| Miscellaneous | |
| Package Contents | Mountable Rugged Industrial 7 Port USB 2.0 Hub DIN Rail Mounting Bracket 6 ft [1.8 m] USB-B w/Screw Lock to USB-A Cable Screw Kit Instruction Manual |
| Platform Supported | PC,Mac |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What type of USB ports does this hub provide?
The ST7200USBM provides seven USB 2.0 ports, all operating at the full USB 2.0 specification with a maximum data transfer rate of 480 MB/s per port. All ports support simultaneous operation, allowing multiple devices to connect and transfer data at full speed without bandwidth sharing limitations common in some hub designs.
How is this hub mounted in industrial environments?
This industrial USB hub offers two mounting options: built-in mounting brackets for direct wall installation and an included DIN rail mounting bracket for standard industrial rack systems. The compact design allows installation in control panels, equipment enclosures, or directly on walls, with all necessary hardware included in the package for immediate deployment.
What electrical protection features does this hub include?
The hub provides comprehensive electrical protection with 15kV air gap and 8kV contact ESD (electrostatic discharge) protection on all ports, plus 350W surge protection for both upstream and downstream connections. This dual-layer protection safeguards connected devices from industrial electrical noise, power surges, and electrostatic discharge events common in industrial environments.
What power input does this industrial USB hub require?
The ST7200USBM accepts wide-range DC power input from 7 to 24 volts through its terminal block connector. This flexibility allows compatibility with various industrial power systems, including standard 12V or 24V DC supplies commonly found in industrial control panels, without requiring additional voltage converters or adapters.
Is this USB hub compatible with both PC and Mac systems?
Yes, this industrial USB hub is fully compatible with both PC and Mac systems. It uses standard USB 2.0 protocols that are universally supported across Windows, macOS, and Linux operating systems without requiring special drivers. The hub is plug-and-play compatible, automatically recognized by the host system when connected.
What certifications and compliance does this product have?
The ST7200USBM is TAA (Trade Agreements Act) compliant for government procurement and carries EU RoHS (Restriction of Hazardous Substances) certification. It also complies with REACH and WEEE environmental directives. The product is manufactured in Taiwan and backed by a 2-year limited warranty from StarTech.com.
