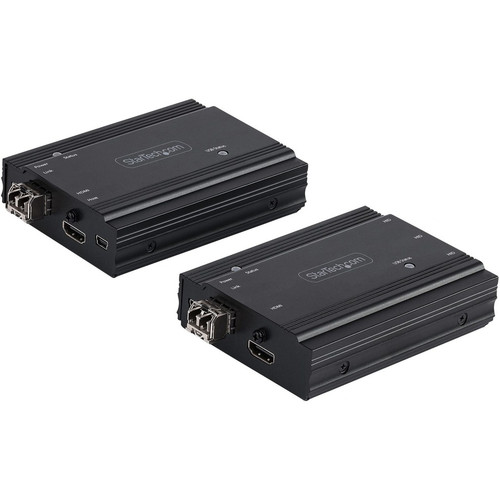

StarTech.com SV565FXHD4KU 4K HDMI KVM Extender over Fiber - HDMI 2.0 & USB up to 984 ft/300m - 10G MMF SFP+ Modules Included
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fiber-based KVM extender utilizes HDMI 2.0 technology to support Ultra HD resolutions up to 3840x2160 at 60Hz refresh rates. The system maintains full EDID passthrough to ensure compatibility between source and display devices, while HDCP 2.2 support enables protected content playback.
The extender provides six HDMI ports and six USB ports across its transmitter and receiver units, accommodating multiple peripheral connections. USB 1.1 HID support ensures keyboard and mouse functionality remains OS-independent, working seamlessly across Windows, macOS, and Linux systems without requiring additional drivers.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Number of Local Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This KVM extender eliminates distance limitations while maintaining signal integrity through fiber optic transmission. Unlike copper-based extenders that suffer from signal degradation over distance, this fiber solution delivers pristine 4K video and responsive USB control across hundreds of feet without compression artifacts or latency issues.
Complete Fiber Solution

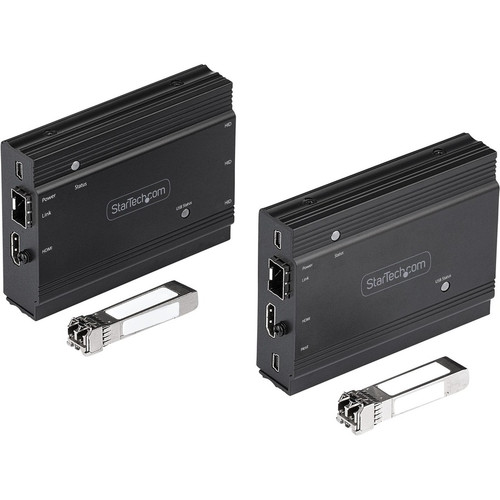

Includes two pre-installed 10G multimode SFP+ modules with LC connectors, eliminating the need for separate transceiver purchases. The open SFP+ slots accommodate MSA-compliant 10G SFP+ modules for flexibility with different fiber types.
- Two 10G MMF SFP+ modules included
- LC connector compatibility
- Open slots for additional modules
Professional Video Quality
Delivers 4K@60Hz with 4:4:4 chroma sampling for accurate color representation in professional applications. The HDMI 2.0 implementation supports high-bandwidth digital content protection for secure media playback.
- 4:4:4 chroma sampling
- HDCP 2.2 compliant
- Digital 7.1 audio support
Deployment / Use Cases
This fiber KVM extender is ideal for environments where computers must be located at a distance from user workstations while maintaining full control and high-quality video output. The point-to-point architecture requires no network configuration or proprietary software, making deployment straightforward for IT professionals.
Common applications include digital signage control rooms where content management systems are housed in server racks while displays are mounted in public areas. Security operations centers benefit from extending surveillance workstation controls to monitoring consoles. Broadcast facilities utilize these extenders to place noisy computing equipment in isolated rooms while maintaining editing station functionality in production areas.
Digital Signage Management
Place media players in secure server rooms while controlling content and monitoring displays from administrative areas up to 984 feet away. The 4K video quality ensures crisp imagery on high-resolution signage displays.
Security & Surveillance
Extend control of security workstation computers to monitoring consoles in observation rooms. The responsive USB transmission ensures smooth camera control and evidence review without latency.
What's in the Box
This complete kit includes everything needed for immediate deployment without additional purchases.
Highlights
- Extends HDMI 2.0 video and USB signals up to 984 ft/300m over multimode fiber
- Supports 4K Ultra HD resolution at 60Hz with 4:4:4 chroma sampling
- Includes two pre-installed 10G multimode SFP+ modules with LC connectors
- Provides six HDMI ports and six USB ports across transmitter and receiver
- Features EDID passthrough and HDCP 2.2 support for maximum compatibility
- Delivers digital 7.1 surround audio over HDMI connections
- OS-independent USB 1.1 HID support works without drivers
- Universal 100-240V AC power adapter included for worldwide use
- Compact black units measure 2.95" x 1.10" (75 x 28 mm)
- Backed by StarTech.com's 2-year warranty and 24/5 technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV565FXHD4KU |
| Brand Name | StarTech.com |
| Product Name | KVM Extender |
| Packaged Quantity | 1 Kit |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Maximum Operating Distance | 984 ft (299923.20 mm) |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 6 |
| Number of USB Ports | 6 |
| Power Description | |
| Input Voltage | 120 V AC,240 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Power Consumption | 10 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 1.10" (28 mm) |
| Transmitter Width | 2.95" (75 mm) |
| Receiver Height | 1.10" (28 mm) |
| Receiver Width | 2.95" (75 mm) |
| Transmitter Weight (Approximate) | 15.87 oz (450 g) |
| Receiver Weight (Approximate) | 15.87 oz (450 g) |
| Miscellaneous | |
| Package Contents | Transmitter for Host Computer Receiver for Remote Console 10G Multimode 10G SFP+ Module (Pre-Installed) Universal Power Adapter USB-A to Mini USB-B Cables Quick-Start Guide |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What maximum distance does this KVM extender support?
This extender supports distances up to 984 feet (300 meters) using the included multimode fiber optic cable and SFP+ modules. With compatible single-mode fiber and appropriate SFP+ modules, the maximum distance extends to 1,640 feet (500 meters). The fiber-based transmission maintains signal integrity without degradation across these extended ranges.
What video resolutions and refresh rates are supported?
The extender supports Ultra HD 4K resolution at 3840 x 2160 pixels with a 60Hz refresh rate. It utilizes HDMI 2.0 technology with 4:4:4 chroma sampling for accurate color reproduction. Lower resolutions including 1080p and 1440p are also fully supported with appropriate scaling.
Does this extender include the necessary fiber modules?
Yes, the kit includes two pre-installed 10G multimode SFP+ modules with LC connectors. These modules are ready for immediate use with standard multimode fiber optic cable. The units also feature open SFP+ slots that accept MSA-compliant 10G SFP+ modules if different fiber types or distances are required.
What types of USB devices are supported?
The extender supports USB 1.1 HID (Human Interface Device) class devices, including keyboards, mice, and touchpads. This OS-independent support works across Windows, macOS, and Linux systems without requiring additional drivers. The six USB ports across the transmitter and receiver accommodate multiple peripheral connections simultaneously.
Is this extender compatible with HDCP-protected content?
Yes, the extender fully supports HDCP 2.2 (High-bandwidth Digital Content Protection), enabling playback of protected commercial content from sources like Blu-ray players, streaming devices, and media servers. The EDID passthrough feature ensures proper handshake between source and display devices for seamless protected content transmission.
What power requirements does this system have?
The extender operates on 100-240V AC input power with a universal power adapter included in the package. Each unit consumes approximately 10 watts of power. The system is designed for continuous operation in professional environments with stable performance across the full input voltage range.
