Product Features
Technical Overview
This ceiling mount combines mechanical precision with user-friendly design. The telescopic pole extends from 1.8 feet to 3.0 feet, providing flexible height adjustment without tools. The 180° swivel capability around the pole and -25° tilt range allow optimal viewing angle customization after installation.
The universal VESA compatibility covers 11 standard hole patterns from 200x200mm to 600x400mm, ensuring compatibility with most flat-panel displays from major manufacturers including LG, Samsung, Sony, and Sharp. The steel construction provides durable support while maintaining a streamlined black finish that blends discreetly into various ceiling environments.
This section brings together practical product details such as Device Supported, Number of Displays Supported, Maximum Load Capacity, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This ceiling mount system stands out through its combination of installation flexibility, robust construction, and thoughtful design features that address real-world deployment challenges.
Angled Ceiling Compensation
The adjustable ceiling bracket accommodates sloped or angled ceilings up to ±60 degrees, ensuring your display remains perfectly level regardless of ceiling pitch.
- Eliminates display tilt on uneven surfaces
- Maintains professional appearance
- Simplifies installation on challenging ceilings
Full Motion Without Tools
Once installed, the display can be swiveled 180° around the pole and tilted -25° downward without requiring tools, enabling quick adjustments for optimal viewing angles.
- Post-installation flexibility
- No additional tools required
- Adapts to changing room layouts
Comprehensive Hardware Inclusion
The package includes all necessary mounting hardware for various installation scenarios, from standard drywall to concrete ceilings, with multiple screw sizes and spacers for perfect fit.
- Reduces additional purchases
- Accommodates different wall materials
- Includes concrete anchors for secure mounting
Deployment / Use Cases
The FPCEILPTBSP ceiling mount excels in environments where space optimization, professional appearance, and viewing flexibility are paramount. Its design addresses specific installation challenges while maintaining clean sightlines.
In digital signage applications, the telescopic pole brings displays to optimal viewing height while the cable management system conceals wiring for a polished appearance. The full-motion capabilities allow content to be angled toward different traffic flows in retail spaces or airport terminals.
For educational and corporate settings, the mount's ability to compensate for angled ceilings makes it ideal for auditoriums, training rooms, and conference spaces with architectural variations. The robust 110-pound capacity ensures secure mounting of larger interactive displays or video conferencing systems.

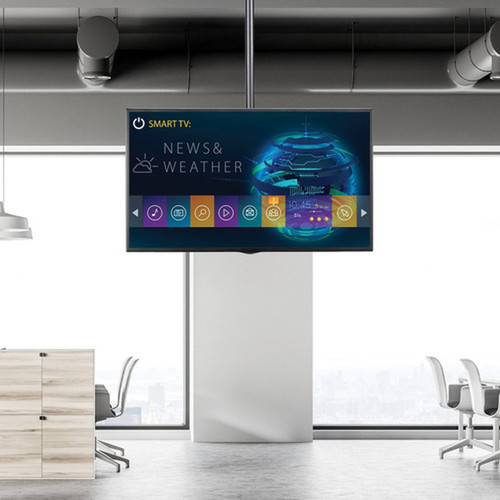

Commercial Digital Signage
Maximize visibility in retail environments, hospitality venues, and transportation hubs with height-adjustable positioning and clean cable management.
- Height customization for optimal viewing
- Concealed wiring for professional appearance
- Full motion for directional content display
Institutional AV Installations
Deploy in schools, hospitals, and government facilities where durable mounting and flexible viewing angles support varied user needs and room configurations.
- Compensates for architectural variations
- Secure steel construction for high-traffic areas
- Easy adjustments without maintenance calls
Physical Profile
Constructed from powder-coated steel, this ceiling mount combines durability with a discreet black finish that blends into most ceiling environments. The assembly measures 45.30 inches in height, 17.10 inches in width, and 26.80 inches in length when configured, with the telescopic pole providing the primary height adjustment mechanism.
The 10.80-pound weight reflects substantial construction without being excessively heavy for ceiling installation. The design prioritizes clean lines and integrated cable routing channels that keep wiring organized and out of sight, maintaining professional aesthetics in visible installations.
- Width
- 17.10" (434.34 mm)
- Height
- Yes
- Weight
- 10.80 lb (4898.80 g)
- Length
- 26.80" (680.72 mm)

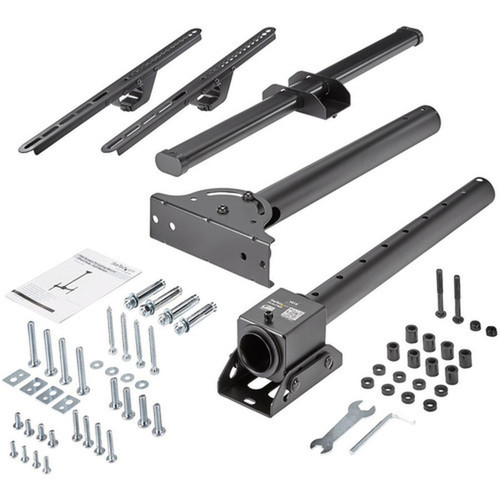

What's in the Box
This complete ceiling mount kit includes all components necessary for professional installation across various ceiling types and display configurations.
Highlights
- Telescopic pole adjusts from 1.8' to 3.0' for optimal viewing height
- Full-motion design with 180° swivel and -25° tilt without tools
- Supports displays from 32" to 75" with 110 lb weight capacity
- Adjustable ceiling bracket compensates for sloped ceilings up to ±60°
- Universal VESA compatibility with 11 hole patterns from 200x200 to 600x400
- Integrated cable management maintains clean, professional appearance
- Steel construction with black finish for durability and discreet mounting
- Complete hardware kit includes concrete anchors for various ceiling types
- 5-year limited warranty for long-term reliability assurance
- Ideal for digital signage, conference rooms, retail, and institutional use
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | FPCEILPTBSP |
| Brand Name | StarTech.com |
| Product Name | Ceiling TV Mount - 1.8' to 3' Short Pole |
| Packaged Quantity | 1 Each |
| Product Type | Ceiling Mount |
| Product Information | |
| Device Supported | Flat Panel Display,LCD Display,LED Display,Plasma Display |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 110.23 lb (50000 g) |
| Minimum Screen Size Supported | 32" |
| Maximum Screen Size Supported | 75" |
| Height Adjustable | Yes |
| Features | Swivel,60° Swivel,Adjustable,Full Motion,Tilt,Telescoping,Space Saving Design,Cable Management |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Mounting Pattern | 600 x 400,400 x 200,400 x 400,300 x 300,200 x 200,600 x 300,600 x 200,400 x 300,300 x 200,200 x 400,200 x 300 |
| Height | 45.30" (1150.62 mm) |
| Width | 17.10" (434.34 mm) |
| Length | 26.80" (680.72 mm) |
| Weight (Approximate) | 10.80 lb (4898.80 g) |
| Miscellaneous | |
| Package Contents | 1 x Ceiling Mount and Pole 1 x Extension Pole 2 x Vertical Brackets 1 x Horizontal Bracket 2 x Bolts 2 x Nuts 1 x Wrench 1 x Hex Key 1 x Mounting Template 4 x M5x14 mm Screws 4 x M6x14 mm Screws 4 x M6x30 mm Screws 4 x M8x30 mm Screws 4 x M8x50 mm Screws 4 x Rectangular Washers 8 x Small Spacers 8 x Large Spacers 4 x 6.3x55 mm Screws 4 x Concrete Anchor 4 x Circular Washers 1 x Instruction Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What screen sizes does this ceiling mount support?
The StarTech.com FPCEILPTBSP ceiling mount accommodates flat-panel displays from 32 inches to 75 inches diagonally. This range covers most commercial and consumer televisions and monitors, including curved displays. The mount's universal VESA compatibility ensures proper fit across this size spectrum when paired with appropriate mounting patterns.
How much weight can this ceiling mount hold?
This mount supports a maximum load capacity of 110.23 pounds (50,000 grams). This substantial weight rating accommodates larger displays with confidence, including commercial-grade monitors and televisions. The steel construction and robust bracket design distribute weight securely across the ceiling mounting points.
Can this mount be installed on sloped or angled ceilings?
Yes, the adjustable ceiling bracket allows the pole to be adjusted and secured at angles up to ±60 degrees relative to the ceiling surface. This compensation feature ensures your display remains level even when installed on sloped, slanted, or vaulted ceilings, maintaining proper viewing orientation without complex custom solutions.
What VESA mounting patterns are compatible?
This mount supports 11 standard VESA hole patterns: 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, and 600x400 millimeters. This comprehensive compatibility covers most flat-panel displays from major manufacturers, with included screws and spacers accommodating various pattern requirements.
How does the height adjustment work?
The telescopic pole extends from 1.8 feet (approximately 50 cm) to 3.0 feet (approximately 90 cm) from the ceiling surface. This adjustment occurs along the pole's length, allowing you to position the display at optimal viewing height for your specific environment. The extension mechanism operates without tools for convenient post-installation adjustments.
What motion capabilities does this mount offer?
This full-motion mount provides 180° of swivel rotation around the telescopic pole, allowing the display to face different directions within the room. Additionally, it offers -25° of downward tilt for optimal viewing angle adjustment. Both swivel and tilt adjustments can be made without tools once the mount is installed, providing flexibility for changing room layouts or viewing requirements.
What mounting, rack, or form-factor detail is listed?
600 x 400,400 x 200,400 x 400,300 x 300,200 x 200,600 x 300,600 x 200,400 x 300,300 x 200,200 x 400,200 x 300.
