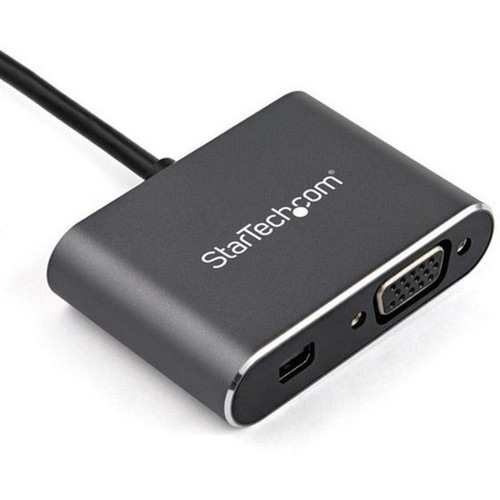

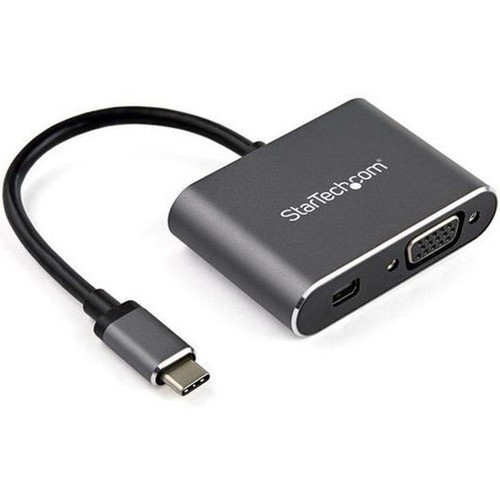

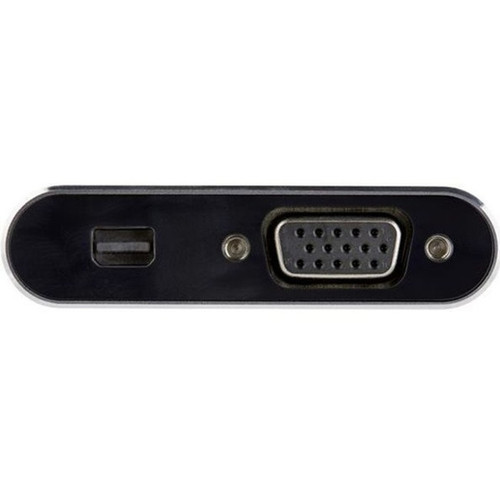

StarTech. com CDP2MDPVGA USB-C to 4K 60Hz Mini DisplayPort 1. 2 or 1080p VGA Video Adapter - HDCP 2. 2 - Space Gray Aluminum
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This USB-C to Mini DisplayPort/VGA adapter implements DisplayPort 1.2 High Bit Rate 2 (HBR2) signaling for 4K 60Hz output through the Mini DisplayPort interface. The VGA output supports 1080p resolution for connecting to older projectors and monitors. Both outputs can drive high-quality text and graphics with minimal latency.
The adapter's USB-C input carries both video and power, eliminating the need for separate power cables. HDCP 1.4 and 2.2 support ensures compatibility with copyright-protected streaming services and Blu-ray content. The compact design makes it ideal for travel while the robust aluminum construction withstands daily office use.
This section brings together practical product details such as Adapter Type, Connector Type on First End, Connector on First End Details, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This adapter solves multiple display connectivity challenges with a single compact solution. The dual-output design accommodates both modern digital displays and legacy analog equipment, extending the useful life of existing monitors and projectors.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Resolution Flexibility, Durable Construction.
Resolution Flexibility
Drive 4K displays through Mini DisplayPort or connect 1080p VGA monitors with the same adapter, perfect for mixed-display environments.
- 4K at 60Hz via Mini DisplayPort
- 1080p via VGA
- HDCP 2.2 for protected content
Durable Construction
The aluminum housing provides superior heat dissipation and physical protection compared to plastic alternatives.
- Space gray aluminum finish
- RoHS and REACH compliant
- Environmentally friendly manufacturing
Deployment / Use Cases
The CDP2MDPVGA adapter serves as an essential tool for IT departments managing heterogeneous display environments. It enables modern USB-C laptops to connect to conference room projectors, training center displays, and legacy monitors without requiring multiple specialized adapters.
Business travelers benefit from the adapter's compact form factor when presenting in client offices with varying display standards. Educational institutions can use it to connect newer teacher laptops to older classroom projectors. The adapter's HDCP 2.2 support makes it suitable for media production teams who need to review protected content on external displays.
Conference Room Setup
Connect USB-C laptops to both modern 4K displays for detailed presentations and legacy VGA projectors for broader audience viewing.
IT Support Toolkit
Carry one adapter instead of multiple specialized connectors when servicing workstations with different display interfaces across an organization.
Highlights
- USB-C to Mini DisplayPort 1.2 and VGA dual-output adapter
- Supports 4K resolution at 60Hz through Mini DisplayPort interface
- HDCP 2.2 compliance for protected content playback
- Space gray aluminum housing for durability and heat dissipation
- Compact design ideal for business travel and mobile use
- 3-year limited warranty for long-term reliability
- RoHS and REACH compliant environmentally friendly construction
- Connects modern USB-C devices to legacy VGA displays
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | CDP2MDPVGA |
| Brand Name | StarTech.com |
| Product Name | USB-C Display Adapters |
| Packaged Quantity | 1 Each |
| Product Type | Video Adapter |
| Technical Information | |
| Adapter Type | USB-C/Mini DisplayPort/VGA |
| Connector Type on First End | USB Type C - Male |
| Connector on First End Details | 1 x Type C USB Male |
| Connector Type on Second End | HD-15 - Female,Mini DisplayPort Digital Audio/Video - Female |
| Connector on Second End Details | 1 x 15-pin HD-15 VGA Female,1 x Mini DisplayPort Digital Audio/Video Female |
| Maximum Resolution Supported | 3840 x 2160 |
| Features | HDCP 1.4,HDCP 2.2 |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Space Gray |
| Product Material | Aluminum |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What resolutions does this USB-C adapter support?
The adapter supports up to 3840 x 2160 (4K) resolution at 60Hz through the Mini DisplayPort output. The VGA output supports up to 1920 x 1080 (1080p) resolution. Both outputs deliver crisp text and detailed imagery suitable for professional applications and media playback.
Does this adapter require external power?
No, the adapter draws power directly from the USB-C connection, eliminating the need for separate power cables or adapters. This makes it highly portable and convenient for business travel and presentations where power outlets may be limited.
What is HDCP 2.2 and why is it important?
HDCP 2.2 (High-bandwidth Digital Content Protection) is a copyright protection standard required for playing 4K content from streaming services and Blu-ray discs. This adapter's HDCP 2.2 compliance ensures you can view protected content on connected displays without signal degradation or black screens.
Can I use both outputs simultaneously?
No, this adapter functions as a selector rather than a splitter. You can connect either a Mini DisplayPort display or a VGA display at one time, but not both simultaneously. This design provides flexibility for different display environments without the complexity of active signal splitting.
What devices are compatible with this adapter?
The adapter works with any USB-C source device that supports DisplayPort Alternate Mode, including modern laptops, tablets, and docking stations from major manufacturers. It connects to displays with Mini DisplayPort inputs or VGA inputs, making it ideal for mixed-display office environments.
What warranty coverage does StarTech.com provide?
StarTech.com backs this adapter with a 3-year limited warranty, providing coverage for manufacturing defects and premature failures. The warranty reflects the product's durable aluminum construction and reliable performance in professional environments where display connectivity is critical.
What resolution or display format is specified?
It features a display specification of 3840 x 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
