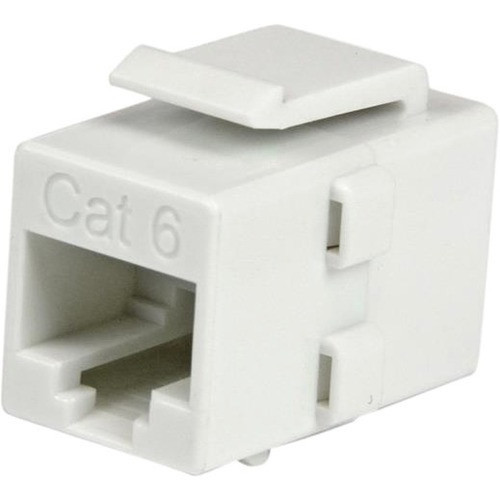

StarTech. com C6KEYCOUPLWH Cat 6 RJ45 Keystone Jack Network Coupler - White - F/F - Join Two Patch Cables
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network coupler features RJ-45 female connectors on both ends, supporting standard 8P8C modular connections. The connectors maintain proper pin alignment and contact pressure to ensure consistent signal transmission across the joined cables. The housing is constructed from high-impact, flame-retardant plastic rated UL 94V0 for enhanced safety in commercial installations.
The coupler is engineered to meet Cat 6 performance standards, supporting data transfer rates up to 1 Gbps and bandwidth up to 250 MHz. Its keystone design allows for tool-less installation into compatible keystone wall plates or patch panels, providing flexibility in network infrastructure deployment.
This section brings together practical product details such as Adapter Type, Connector Type on First End, Connector on First End Details, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This coupler provides a cost-effective solution for extending network cable runs without replacing entire cables. Its keystone jack design offers installation versatility across different networking environments while maintaining professional-grade reliability.
Flame-Retardant Construction
The UL 94V0-rated plastic housing provides enhanced fire safety, making this coupler suitable for commercial buildings, data centers, and other environments with strict fire code requirements.
- High-impact plastic
- UL 94V0 rating
- Durable housing
Environmental Compliance
Manufactured with RoHS 2, REACH, and WEEE compliance, this product meets international environmental standards for hazardous substance restrictions and electronic waste management.
- EU RoHS certified
- REACH compliant
- WEEE compliant
Deployment / Use Cases
This Cat 6 coupler is ideal for extending patch cable runs in office networks, server rooms, and structured cabling systems. It connects two shorter Cat6 patch cables to reach devices that are beyond the length of a single cable, eliminating the need for custom-length cables or complex cable management solutions.
Common applications include connecting workstations to wall outlets, extending patch panel connections in data centers, and creating temporary network extensions during office reconfigurations. The keystone jack format allows installation into standard wall plates for clean, professional-looking connections in conference rooms, classrooms, and open office spaces.
Office Network Extension
Extend workstation connections when furniture rearrangement or office layout changes require longer cable runs between devices and network outlets.
Data Center Patching
Connect patch panel ports to network equipment when standard-length patch cables fall short, maintaining organized cable management in rack environments.
Physical Profile
The coupler features a compact keystone jack form factor measuring approximately standard keystone dimensions. Its lightweight design at 0.10 ounces minimizes stress on wall plates and patch panels. The white plastic housing provides a clean, professional appearance that matches common office networking components and infrastructure.
- Weight
- 0.10 oz (2.83 g)
Highlights
- Female-to-female RJ-45 Cat 6 network coupler
- Keystone jack design for wall plate or patch panel installation
- High-impact, flame-retardant plastic housing (UL 94V0)
- White color blends with office decor and networking equipment
- Supports data rates up to 1 Gbps (Cat 6 specifications)
- Tool-less installation into standard keystone openings
- RoHS 2, REACH, and WEEE environmental compliance
- Lifetime limited warranty for long-term reliability
- Passive design requires no external power source
- Country of origin: China
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | C6KEYCOUPLWH |
| Brand Name | StarTech.com |
| Product Name | White Cat 6 RJ45 Keystone Jack Network Coupler - F/F |
| Packaged Quantity | 1 Each |
| Product Type | Network Adapter |
| Technical Information | |
| Adapter Type | RJ-45 |
| Connector Type on First End | RJ-45 Network - Female |
| Connector on First End Details | 1 x RJ-45 Network Female |
| Connector Type on Second End | RJ-45 Network - Female |
| Connector on Second End Details | 1 x RJ-45 Network Female |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Plastic |
| Weight (Approximate) | 0.10 oz (2.83 g) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What does this Cat 6 coupler actually do?
This coupler connects two Cat6 Ethernet patch cables end-to-end, creating a longer continuous cable run. It features female RJ-45 connectors on both ends, allowing you to join two male-terminated patch cables together for network extension in office, data center, or structured cabling applications.
Can I use this coupler with Cat5e or other cable categories?
Yes, this RJ-45 coupler is backward compatible with Cat5e and lower category cables. However, when used with lower-category cables, the overall connection will be limited to the specifications of the lowest category component in the chain. For optimal performance with Cat6 cables, ensure all components meet Cat6 standards.
How do I install this keystone jack coupler?
The coupler installs tool-less into standard keystone wall plates, patch panels, or surface-mount boxes. Simply insert the coupler into the keystone opening until it clicks into place. Then connect your patch cables to both ends of the coupler. No special tools or technical expertise are required for installation.
What is the flame-retardant rating and why does it matter?
The coupler housing is rated UL 94V0, meaning it meets stringent flame-retardancy standards for plastics. This rating indicates the material self-extinguishes within 10 seconds after flame removal and doesn't drip flaming particles. This safety feature is important for commercial installations where fire codes require flame-retardant networking components.
What environmental standards does this product meet?
This coupler complies with EU RoHS (Restriction of Hazardous Substances), REACH (Registration, Evaluation, Authorization and Restriction of Chemicals), and WEEE (Waste Electrical and Electronic Equipment Directive) regulations. These standards restrict hazardous materials in manufacturing and establish proper disposal procedures for electronic waste.
What warranty comes with this network coupler?
StarTech.com provides a lifetime limited warranty for this product. This warranty covers defects in materials and workmanship for the product's lifetime, offering long-term reliability assurance for your networking infrastructure investment.
