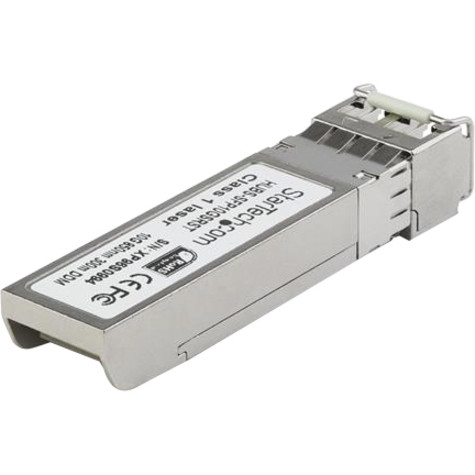

StarTech. com SFP10GUSREMS Dell EMC SFP-10G-USR Compatible SFP+ Transceiver Module - 10GbE SR Multimode 850nm LC 150m DDM
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP+ transceiver operates at a wavelength of 850nm and supports a maximum data transfer rate of 10 Gbps over multimode fiber. It features an LC duplex connector interface, aligning with standard fiber optic cabling for straightforward deployment in existing network setups.
The module includes Digital Diagnostics Monitoring (DDM), providing real-time visibility into operational parameters such as temperature, voltage, and optical power levels. This monitoring capability aids in proactive network management and troubleshooting. With a Mean Time Between Failures (MTBF) of 53,972,659 hours and low power consumption, the transceiver is built for long-term reliability and energy efficiency in continuous operation environments.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This transceiver combines certified compatibility with advanced monitoring features to deliver a robust networking solution. Its design prioritizes both performance and manageability, ensuring it meets the demands of modern high-speed networks.
Certified Dell EMC Compatibility
Specifically programmed and tested to work with Dell EMC switches and routers, ensuring reliable interoperability and reducing compatibility concerns in Dell EMC network environments.
Comprehensive Digital Diagnostics
Integrated DDM provides detailed monitoring of key performance metrics, enabling network administrators to maintain optimal operation and quickly identify potential issues before they impact network availability.
Hot-Swappable Design
Allows for installation, removal, or replacement without powering down network equipment, minimizing downtime and simplifying maintenance procedures during network upgrades or expansions.
Deployment / Use Cases
The SFP10GUSREMS is ideal for extending 10GbE connectivity within data centers, enterprise networks, and storage area networks where multimode fiber infrastructure is deployed. Its 150-meter reach supports connections between switches, routers, and servers across typical intra-building or campus distances.
Common applications include linking network switches in server racks, connecting network storage devices, and establishing high-speed backbone links between networking equipment. The module's compatibility with Dell EMC systems makes it particularly suitable for organizations standardizing on Dell EMC networking hardware, providing a cost-effective alternative for expanding port density or replacing existing transceivers.
Data Center Interconnects
Use to establish 10GbE links between switches and servers within data center environments, leveraging multimode fiber for high-speed, low-latency connections essential for virtualized workloads and storage traffic.
Enterprise Network Backbones
Deploy in enterprise network backbones to aggregate traffic from access switches, supporting bandwidth-intensive applications and ensuring smooth data flow across different network segments with reliable 10GBase-SR performance.
Highlights
- 100% compatible with Dell EMC SFP-10G-USR switches and routers
- 10 Gbps data rate over multimode fiber with 10GBase-SR support

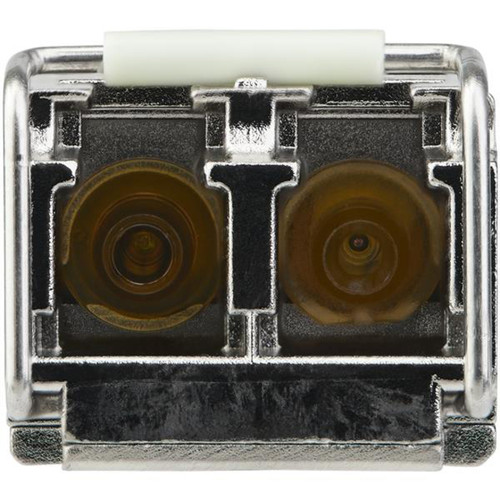

- 850nm wavelength and LC duplex connectors for standard fiber optic cabling
- Maximum reach of 150 meters (492 feet) for flexible deployment
- Digital Diagnostics Monitoring (DDM) for real-time performance tracking
- Hot-swappable SFP+ form factor for easy installation and maintenance
- Lifetime warranty and free multilingual technical support
- Low power consumption and high MTBF for reliable, energy-efficient operation
- MSA compliant for interoperability with standard SFP+ ports
- RoHS, REACH, and WEEE compliant for environmentally responsible use
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SFP10GUSREMS |
| Brand Name | StarTech.com |
| Product Name | Dell EMC SFP-10G-USR Compatible SFP+ Transceiver Module - 10GBase-SR |
| Product Type | SFP+ |
| Packaged Quantity | 1 |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-SR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-SR |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What Dell EMC equipment is this SFP+ transceiver compatible with?
The StarTech.com SFP10GUSREMS is specifically designed, programmed, and tested to be compatible with Dell EMC switches and routers that support the SFP-10G-USR transceiver model. It ensures reliable interoperability in Dell EMC network environments, providing a dependable alternative for expanding or maintaining connectivity on compatible hardware.
What is the maximum distance this transceiver can support?
This SFP+ transceiver supports a maximum distance of up to 150 meters (492 feet) over multimode fiber optic cable when used in 10GBase-SR compliant networks. This reach is suitable for typical intra-building or campus connections, such as linking network equipment within data centers or across enterprise floors.
Does this module include Digital Diagnostics Monitoring (DDM)?
Yes, the SFP10GUSREMS features Digital Diagnostics Monitoring (DDM), which provides real-time monitoring of key operational parameters like temperature, voltage, and optical power levels. This capability allows network administrators to track performance, identify potential issues early, and maintain optimal network health without requiring physical inspection.
What type of fiber and connectors does this transceiver use?
This transceiver is designed for use with multimode fiber optic cable and features LC duplex connectors. It operates at an 850nm wavelength, aligning with standard multimode fiber specifications for 10GBase-SR applications, ensuring compatibility with common fiber infrastructure and easy integration into existing network setups.
Is this SFP+ module hot-swappable?
Yes, the SFP10GUSREMS is hot-swappable, meaning it can be installed, removed, or replaced without powering down the networking equipment. This design minimizes network disruption during upgrades, maintenance, or expansions, allowing for seamless modifications to network connectivity without affecting overall uptime.
What warranty and support are included with this transceiver?
StarTech.com backs this SFP+ transceiver with a lifetime warranty and free lifetime multilingual technical support. This coverage ensures long-term reliability and access to assistance for installation, troubleshooting, or compatibility questions, providing added confidence in the product's durability and performance in network deployments.
