StarTech. com SIMPLEXSCAPCF SC/APC Fiber Coupler 10 Pack - Single Mode OS2/OS1 - Flanged Mount - Passive
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SC/APC fiber coupler features precision ceramic sleeves for low 0.2dB insertion loss and minimal return loss, exceeding TIA-568 B.3 standards. It supports standard single mode wavelengths from 1260nm to 1625nm over 9/125µm cores, optimized for laser sources in data center, telecom, and enterprise backbone applications.

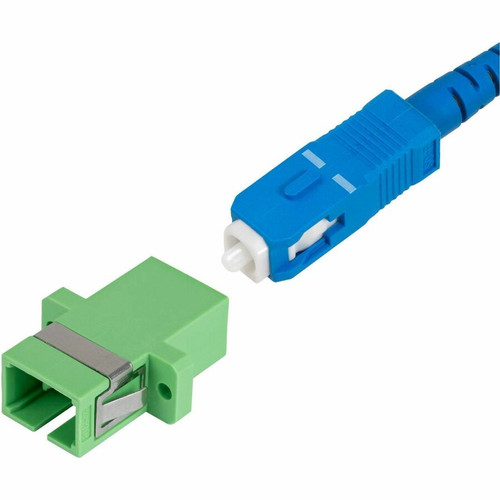

The coupler's polybutylene terephthalate (PBT) body provides durability and heat resistance, while the green color coding helps quickly identify single mode APC connections in complex cabling setups.
This section brings together practical product details such as Adapter Type, Connector Type on First End, Connector on First End Details, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This coupler combines high-performance signal transmission with physical stability for demanding networking environments. The flanged mounting system prevents connector drift in vibration-prone or high-density installations, while the precision engineering ensures consistent performance across the entire speed range from 1Gbps to 100Gbps.
Signal Integrity
Maintains peak signal clarity with 0.2dB insertion loss and APC polish for minimal back reflection, critical for long-distance single mode fiber runs.
- Exceeds TIA-568 B.3
- Optimized for laser sources
- Ceramic alignment sleeve
Installation Efficiency
The 10-pack configuration and flanged design streamline deployment in large-scale projects, reducing installation time and improving organization in fiber management systems.
- Bulk packaging
- Screw-in mounting
- Color-coded identification
Deployment / Use Cases
These SC/APC couplers are designed for professional networking installations where reliable fiber connections must be extended or distributed. The flanged mounting makes them particularly suitable for fixed panel installations in data centers, telecommunications facilities, and enterprise network closets.
Common applications include connecting SC simplex patch cables in fiber distribution frames, extending backbone connections between equipment, and organizing fiber terminations in high-density enclosures. The passive design works seamlessly in both new installations and existing fiber infrastructure upgrades.
Data Center Patching
Extend SC/APC connections between switches, routers, and servers in data center environments where space optimization and signal integrity are paramount.
Telecom Distribution
Deploy in central offices or fiber distribution hubs to organize and manage single mode connections for broadband, cellular backhaul, or enterprise services.
Physical Profile
The compact dimensions (1.10" × 0.90" × 0.40") allow high-density mounting in standard fiber panels and enclosures. The lightweight design at 0.10 oz per coupler minimizes strain on mounting hardware while the green PBT body provides both visual identification and durable construction for long-term reliability.
- Width
- 0.90" (22.86 mm)
- Height
- 0.40" (10.16 mm)
- Weight
- 0.10 oz (2.83 g)
- Length
- 1.10" (27.94 mm)
Highlights

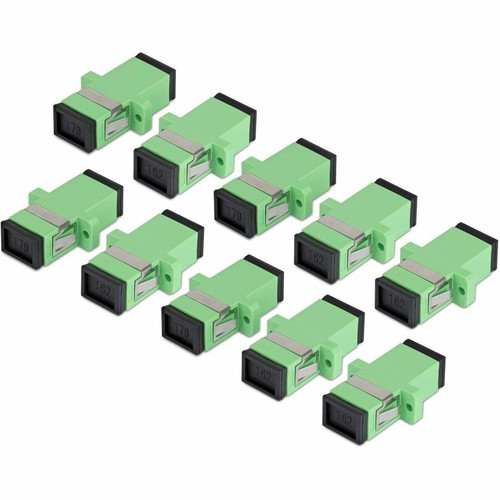

- 10-pack of SC/APC simplex fiber couplers for bulk deployment efficiency

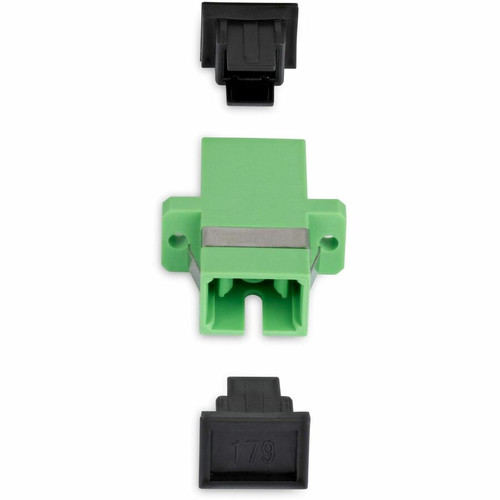

- Flanged screw-in design for secure mounting in panels and enclosures
- Supports single mode OS2/OS1 fiber with 9/125µm cores
- Engineered for 1/10/40/100Gbps transmission speeds
- Low 0.2dB insertion loss with precision ceramic alignment
- APC polish minimizes return loss for optimal signal clarity
- Compatible with standard 1260-1625nm single mode wavelengths
- Green PBT body with color coding for easy identification
- Passive design requires no external power
- Lifetime warranty with technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SIMPLEXSCAPCF |
| Brand Name | StarTech.com |
| Product Name | SC/APC Fiber Coupler |
| Packaged Quantity | 10 Pack |
| Product Type | Network Adapter |
| Technical Information | |
| Adapter Type | Fiber Optic |
| Connector Type on First End | SC/APC Network |
| Connector on First End Details | 1x SC/APC Network - Female |
| Connector Type on Second End | SC/APC Network |
| Connector on Second End Details | 1x SC/APC Network - Female |
| Features | Passive |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Green |
| Product Material | Polybutylene Terephthalate (PBT) |
| Sleeve Material | Ceramic |
| Height | 0.40" (10.16 mm) |
| Width | 0.90" (22.86 mm) |
| Length | 1.10" (27.94 mm) |
| Weight (Approximate) | 0.10 oz (2.83 g) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of fiber is this SC coupler compatible with?
This coupler is designed for single mode OS2/OS1 fiber with 9/125µm cores. It features APC polished ends which are optimized for single mode laser sources and provide minimal return loss compared to UPC polish connectors. The coupler supports standard single mode wavelengths from 1260nm to 1625nm.
What are the advantages of the flanged design?
The flanged screw-in design allows secure mounting in fiber distribution panels, patch panels, or enclosures. This eliminates port movement and connector drift in high-density installations or environments with vibration. The fixed mounting point ensures stable physical connections that maintain proper alignment for optimal signal transmission over time.
What transmission speeds does this coupler support?
This SC/APC coupler is engineered to support data transmission speeds from 1Gbps up to 100Gbps. The precision ceramic alignment sleeve and APC polish maintain signal integrity across this entire speed range with only 0.2dB insertion loss, making it suitable for both current and next-generation networking equipment.
How does the 10-pack configuration benefit installations?
The 10-pack provides bulk purchasing efficiency for large-scale deployments, reducing per-unit cost and ensuring consistency across an installation. This is particularly valuable for data centers, telecom facilities, or enterprise networks where multiple connection points need identical couplers for organized fiber management and simplified inventory.
What standards does this fiber coupler meet or exceed?
This coupler exceeds TIA-568 B.3 standards for fiber optic components. The APC polish, ceramic alignment sleeve, and precision manufacturing ensure low insertion loss and minimal return loss that meet the stringent requirements for professional single mode fiber installations in data centers and telecommunications networks.
Is external power required for this coupler to function?
No, this is a passive fiber coupler that requires no external power. It simply provides a physical connection point between two SC/APC fiber cables, allowing light signals to pass through with minimal loss. The passive design makes installation straightforward and reliable without power considerations or active components that could fail.
