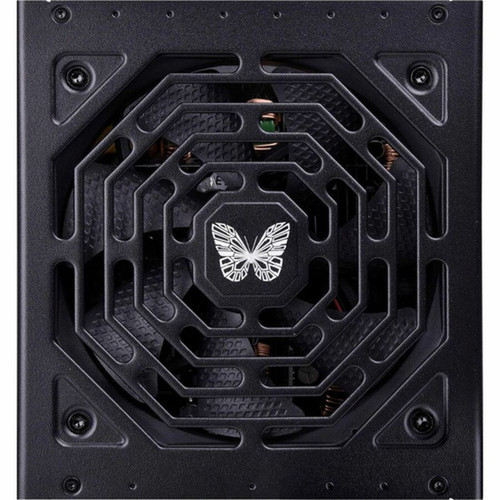

Super Flower LEADEX III Gold Internal Power Supply 120 V AC 230 Input DC SF-850F14HG
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Efficiency: 90%
Power Factor Correction (PFC): Active
Number of Fans: 1
Protection Type: Over Current,Over Voltage,Short Circuit,Under Voltage,Over Temperature,No Load,Over Loading
Modular: Yes
ATI CrossFire Supported: Yes
NVIDIA SLI Supported: Yes
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 1
Output Voltage: 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB
Output Voltage Detail: 3.3 V DC @ 20 A,5 V DC @ 20 A,12 V DC @ 70.8 A,-12 V DC @ 0.5 A,5 V SB @ 3 A
Output Current: 70.80 A,20 A,500 mA,3 A
Output Power: 850 W
Form Factor: Internal
Height: 3.39" (86 mm)
Width: 5.91" (150 mm)
Maximum Operating Temperature: 122°F (50°C)
Environmentally Friendly: Yes
Energy Efficiency Certification: 80 Plus Gold
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
[custom-specifications]
| Specifications | |
| Manufacturer | Super Flower Computer, Inc |
| Manufacturer Part Number | SF850F14HG |
| Manufacturer Website Address | http://www.super-flower.de |
| Brand Name | Super Flower |
| Product Line | LEADEX III Gold |
| Product Model | SF-850F14HG |
| Product Name | LEADEX III Gold SF-850F14HG 850W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Efficiency | 90% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Protection Type | Over Current,Over Voltage,Short Circuit,Under Voltage,Over Temperature,No Load,Over Loading |
| Modular | Yes |
| ATI CrossFire Supported | Yes |
| NVIDIA SLI Supported | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB |
| Output Voltage Detail | 3.3 V DC @ 20 A,5 V DC @ 20 A,12 V DC @ 70.8 A,-12 V DC @ 0.5 A,5 V SB @ 3 A |
| Output Current | 70.80 A,20 A,500 mA,3 A |
| Output Power | 850 W |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.39" (86 mm) |
| Width | 5.91" (150 mm) |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
[/custom-specifications]
