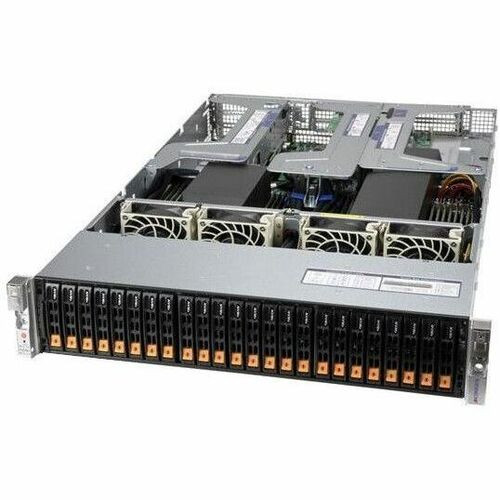

Supermicro AS-2124US-TNRP A+ Server 2124US-TNRP Barebone System - 2U Rackmount - Dual EPYC Socket SP3 - 24 x 2. 5" Bays - 32x DDR4-3200 Slots - 10GbE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone server integrates advanced hardware components to deliver reliable performance and extensive expansion capabilities. The system features an Intel chipset and includes a Super H12DSU-iN motherboard with comprehensive I/O and management functions.
Network connectivity is handled by 10 Gigabit Ethernet ports, with the included 2U Ultra Riser providing 2-port 10G RJ45 and 2-port 10G SFP+ interfaces via an Intel Carlsville X710-TM4 controller. The system supports PCIe 4.0 expansion through multiple riser configurations, including a 2U LHS WIO riser with two PCIe 4.0 x16 slots and a 1U RHS WIO riser with one PCIe 4.0 x16 slot.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This Supermicro barebone system offers several distinct advantages for enterprise deployment scenarios. The combination of high storage density, extensive memory capacity, and modern connectivity options creates a versatile platform adaptable to various workload requirements.
Storage Flexibility
The 24-slot all-hybrid backplane supports mixed NVMe Gen4, SAS, and SATA devices, allowing optimized storage configurations for performance, capacity, or balanced workloads.
- NVMe Gen4 support for maximum performance
- SAS/SATA compatibility for cost-effective storage
- Direct-attached architecture for reduced latency
Enterprise Reliability
Dual 1600W Titanium-level power supplies with PMBus 1.2 management provide efficient, redundant power delivery, while the 2U form factor ensures proper thermal management in standard rack environments.
- Redundant power supply configuration
- Titanium-level efficiency (94%+)
- PMBus 1.2 with DSP controller for monitoring
Expansion Capabilities
Multiple PCIe 4.0 riser configurations and retimer cards enable extensive add-in card support for networking, storage, or specialized computing accelerators.
- PCIe 4.0 x16 slots available
- Multiple riser card options included
- Retimer cards for signal integrity
Deployment / Use Cases
The AS-2124US-TNRP is well-suited for demanding enterprise applications that require balanced compute, memory, and storage resources. Its 2U form factor and comprehensive feature set make it applicable across multiple deployment scenarios.
In virtualized environments, the system's high memory capacity and storage flexibility support dense virtual machine hosting. For database applications, the combination of fast NVMe storage and ample memory enables responsive transaction processing and analytics workloads.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Cloud Infrastructure
Deploy as a hyperconverged infrastructure node or private cloud building block, leveraging the 10GbE networking and storage density for scalable resource pools.
High-Performance Computing
Utilize the dual EPYC processor support and PCIe 4.0 expansion for scientific computing, financial modeling, or rendering applications requiring parallel processing capabilities.
Physical Profile
This 2U rackmount server chassis measures 3.50" (88.90 mm) in height, 17.20" (436.88 mm) in width, and 28.46" (722.88 mm) in depth, with an approximate weight of 39 lb (17690.10 g). The standard 19-inch rack compatibility and 2U height ensure efficient use of data center space while providing adequate airflow for component cooling.
The chassis includes passive CPU heat sinks for AMD Socket SP3 processors and is designed for tool-less maintenance access where applicable. The RoHS-compliant construction meets environmental standards while maintaining structural integrity for enterprise deployment.
- Width
- 17.20" (436.88 mm)
- Depth
- 28.46" (722.88 mm)
- Height
- 2U
- Weight
- 39 lb (17690.10 g)
What's in the Box
This barebone system includes all necessary components for server assembly, excluding processors, memory, storage devices, and operating system.
Highlights
- Dual AMD EPYC Socket SP3 processor support for high-core-count computing
- 24x 2.5" all-hybrid backplane supporting NVMe Gen4, SAS, and SATA storage devices
- 32 DDR4-3200 memory slots with up to 8 TB maximum capacity
- 10 Gigabit Ethernet connectivity with multiple RJ-45 and SFP+ ports
- Dual 1600W Titanium-level redundant power supplies with PMBus management
- Multiple PCIe 4.0 expansion slots via included riser cards
- 2U rack-mountable form factor for standard data center deployment
- RoHS-compliant construction with 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | AS2124USTNRP |
| Brand Name | Supermicro |
| Product Line | A+ Server |
| Product Model | 2124US-TNRP |
| Product Name | A+ Server 2124US-TNRP |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket SP3 |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 8 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Controllers | |
| Controller Type | Serial ATA,NVMe |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of USB 3.0 Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of VGA Ports | 2 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.60 kW |
| Thermal Design Power | 280 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 28.46" (722.88 mm) |
| Weight (Approximate) | 39 lb (17690.10 g) |
| Miscellaneous | |
| Package Contents | 1 x A+ Server 2124US-TNRP 1 x Super H12DSU-iN Motherboard 1 x 2U Chassis 1 x 2U Ultra Riser with 2-port 10G RJ45 & 2-port 10G SFP+, Intel Carlsville X710-TM4, with 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS 2 x 2-Port Retimer, x8 PCIe Gen 4, Low Profile AOC, RoHS 3 x 4-Port Retimer, x16 PCIe Gen 4,RoHS 1 x 2U 24-slot all-hybrid direct-attached backplane, support 24x 2.5" NVME Gen4 / SAS / SATA storage devices.,RoHS 1 x Slimline x8 (LE) to Slimline x8 (STR),46CM,85 OHM 1 x Slimline x8 (LE) to Slimline x8 (STR),56CM,85 OHM 1 x Slimline x8 (STR) to 2x Slimline x4 (RA),FFC,60/62CM,85 4 x Slimline x8 (STR) to Slimline x8 (STR),65CM,85 OHM 1 x Slimline x8 (LE) to Slimline x8 (STR),68CM,85 OHM 4 x Slimline x8 (STR) to Slimline x8 (STR),82CM,85 OHM 1 x 2U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS 1 x 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS 2 x 2U Passive CPU Heat Sink for AMD Socket SP3 Processors 2 x AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with this barebone server?
This Supermicro barebone system supports dual AMD EPYC processors using the Socket SP3 interface. The platform is designed for EPYC 7002 and 7003 series processors (Rome and Milan architectures), providing support for high core counts and PCIe 4.0 connectivity. The system includes passive CPU heat sinks specifically designed for AMD Socket SP3 processors.
How much memory can this server support?
The AS-2124US-TNRP features 32 DDR4 memory slots that support DDR4-3200/PC4-25600 modules. With maximum capacity DIMMs, the system can accommodate up to 8 TB of RAM. This extensive memory capacity makes the server suitable for memory-intensive applications like virtualization, in-memory databases, and large-scale data analytics.
What types of storage devices does the backplane support?
The included 2U 24-slot all-hybrid direct-attached backplane supports three types of storage devices: NVMe Gen4, SAS, and SATA. This flexibility allows administrators to mix drive types within the same chassis, optimizing for performance with NVMe drives, reliability with SAS drives, or cost-effectiveness with SATA drives based on specific workload requirements.
What networking capabilities are included?
The system features 10 Gigabit Ethernet connectivity through the included 2U Ultra Riser, which provides 2-port 10G RJ45 and 2-port 10G SFP+ interfaces using an Intel Carlsville X710-TM4 controller. Additionally, the motherboard includes three RJ-45 network ports, offering multiple connectivity options for different network topologies and redundancy configurations.
What power supply configuration does this server use?
This barebone system includes two AC-DC 1600W power supplies rated at Titanium efficiency level (94%+). The power supplies operate in a redundant configuration, with PMBus 1.2 management and DSP controller for monitoring and control. They support input voltages from 90-264 VAC at 47-63Hz, making them suitable for global deployment in different electrical environments.
What expansion capabilities does this server offer?
The AS-2124US-TNRP provides multiple PCIe 4.0 expansion options through included riser cards. The system features a 2U LHS WIO riser with two PCIe 4.0 x16 slots and a 1U RHS WIO riser with one PCIe 4.0 x16 slot. Additionally, the package includes various retimer cards (2-port and 4-port configurations) to support signal integrity for extended PCIe connections, enabling add-in cards for networking, storage, or acceleration.
