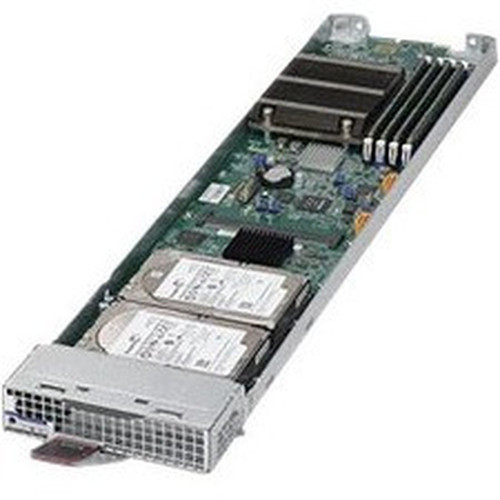

Supermicro MBI-6119G-C2 MicroBlade Server Barebone System - Blade - 1x LGA-1151 CPU - 64GB DDR4 - 12Gb/s SAS - Gigabit Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system features a single processor socket compatible with Intel Xeon CPUs, offering 64-bit processing for advanced server applications. The Intel C236 chipset provides the foundation for reliable system operation, supporting essential server features and peripheral connectivity.
Memory configuration is handled through four DDR4 SDRAM slots, accommodating modules up to DDR4-2400 speeds for efficient data throughput. Storage connectivity is delivered via a 12Gb/s SAS controller, enabling high-speed access to enterprise storage arrays. Network communication is managed through integrated Gigabit Ethernet, ensuring reliable connectivity for data transfer and network operations.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The MBI-6119G-C2 combines several advantages for modern server deployments. Its compact blade design enables efficient use of data center real estate while supporting substantial compute and memory resources. The system's 64 GB memory capacity and DDR4 technology provide the bandwidth needed for memory-intensive workloads.
High-Density Blade Architecture
The blade form factor maximizes processing density within limited rack space, allowing multiple server nodes to operate within a shared chassis. This design reduces physical footprint and power consumption while maintaining full server capabilities.
Enterprise Storage Performance
With 12Gb/s SAS connectivity, the system delivers exceptional storage bandwidth for demanding applications. This interface supports high-performance storage arrays, making it ideal for database servers, virtualization hosts, and data analytics platforms.
Deployment / Use Cases
This barebone system serves multiple roles in enterprise IT environments. Its balanced configuration of compute, memory, and storage connectivity makes it suitable for various server workloads.
Common deployment scenarios include virtualization hosts running multiple virtual machines, application servers for business software, and network infrastructure servers for DNS, DHCP, or file sharing. The Gigabit Ethernet connectivity ensures reliable network performance for these applications.
High-Density Server Consolidation

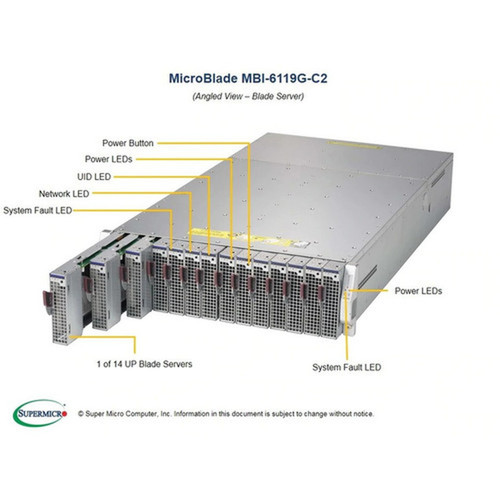

Deploy multiple MBI-6119G-C2 blades within a MicroBlade chassis to create a dense computing environment. This approach is ideal for web hosting, cloud infrastructure, and virtual desktop infrastructure where space efficiency is critical.
Storage Server Applications
Utilize the 12Gb/s SAS controller for direct-attached storage or SAN connectivity. The system works well as a storage server for backup repositories, media streaming, or database hosting where fast storage access is essential.
Physical Profile
The MBI-6119G-C2 features a Silver Gray finish and compact blade dimensions of 1.20 inches in height, 4.94 inches in width, and 23.20 inches in depth. This slender profile allows multiple blades to be installed vertically within a MicroBlade chassis, maximizing rack density. The design includes proper ventilation and component spacing to maintain optimal operating temperatures in high-density deployments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.20" (30.48 mm), 4.94" (125.48 mm), 23.20" (589.28 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.94" (125.48 mm)
- Depth
- 23.20" (589.28 mm)
- Height
- 1.20" (30.48 mm)
What's in the Box
This barebone system includes all necessary components for server deployment within a MicroBlade chassis environment.
Highlights
- Blade form factor for maximum processing density in rack environments

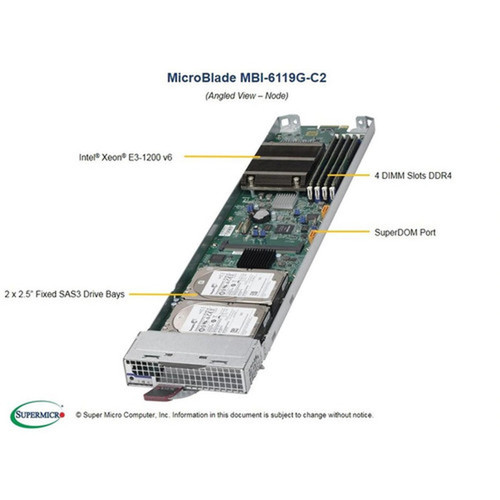

- Supports single Intel Xeon processor via LGA-1151 socket
- Intel C236 chipset for reliable server platform operation
- Up to 64 GB DDR4-2400 memory across four slots
- 12Gb/s SAS controller for high-speed storage connectivity
- Gigabit Ethernet for network communication
- Two expansion bays for storage or peripheral devices
- Silver Gray finish with compact 1.20" H x 4.94" W x 23.20" D dimensions
- Includes all necessary components for MicroBlade chassis deployment
- Ideal for data center, cloud, and enterprise server applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBI-6119G-C2 |
| Brand Name | Supermicro |
| Product Line | MicroBlade |
| Product Model | MBI-6119G-C2 |
| Product Name | MicroBlade MBI-6119G-C2 |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C236 |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2400/PC4-19200 |
| Total Number of Memory Slots | 4 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Physical Characteristics | |
| Product Color | Silver Gray |
| Form Factor | Blade |
| Height | 1.20" (30.48 mm) |
| Width | 4.94" (125.48 mm) |
| Depth | 23.20" (589.28 mm) |
| Miscellaneous | |
| Package Contents | 1 x MicroBlade Board Motherboard 1 x M628 MicroBlade Modularized Skylake UP 1 x M628 Sled Node Cover with asset tag 1 x M628 Modularized Skylake UP 2x 2.5" HDD bracket 1 x M628 Sled Front Window with asset tag opening - Vertical 1 x M628 MicroBlade Modularized Skylake UP w/ 3008 Sled Base 1 x M628 MicroBlade Modularized Skylake UP Air Shroud 1 x I/O module for uBlade, RoHS |
FAQ
What type of processor does this barebone system support?
The MBI-6119G-C2 supports a single Intel Xeon processor using the Socket H4 LGA-1151 interface. This 64-bit processor socket is designed for server-grade CPUs that deliver high performance, built-in security features, and remote management capabilities essential for enterprise environments.
How much memory can I install in this server barebone?
This system supports up to 64 GB of DDR4 SDRAM memory across four memory slots. The memory operates at DDR4-2400/PC4-19200 speeds, providing efficient data throughput for server workloads. The four slots allow flexible memory configuration to match your application requirements.
What storage interfaces are available on this barebone system?
The MBI-6119G-C2 includes a 12Gb/s SAS controller for high-speed storage connectivity. This interface offers exceptional speed and reliability for enterprise-grade storage systems. The system also features two expansion bays that can accommodate storage devices or other peripheral components.
What networking capabilities does this server barebone provide?
This system includes Gigabit Ethernet technology for network communication. This connectivity is highly efficient for large file transfers, making it ideal for backups, data replication, and other network-intensive workflows commonly found in server environments.
What is the form factor of this barebone system?
The MBI-6119G-C2 uses a blade form factor that provides extremely high processing density for maximum efficiency in enterprise setups. With dimensions of 1.20" H x 4.94" W x 23.20" D, multiple blades can be installed within a single chassis to optimize rack space utilization.
What components are included in the package?
The package includes all necessary components for deployment in a MicroBlade chassis: MicroBlade Board Motherboard, M628 MicroBlade Modularized Skylake UP, M628 Sled Node Cover with asset tag, M628 Modularized Skylake UP, 2x 2.5" HDD bracket, M628 Sled Front Window with asset tag opening, M628 MicroBlade Modularized Skylake UP with 3008 Sled Base, M628 MicroBlade Modularized Skylake UP Air Shroud, and an I/O module for uBlade that is RoHS compliant.
