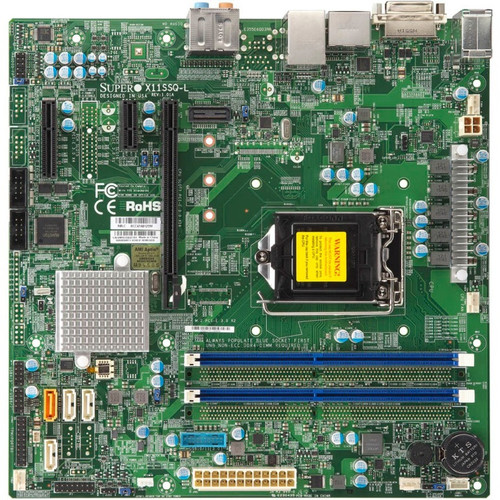

Supermicro Micro ATX Desktop Motherboard Intel Socket LGA-1151 Core Support 32 GB Processor Supported Chipset MBD-X11SSQ-L-O
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- SC823MTQ-R700LPB
- SC825MTQ-R700LPB
- SC835BTQ-R1K28B
- SC731i-300B
- SC732D4F-500B
- SC732D4F-865B
- SC732D4F-903B
- SC732D4-500B
- SC732D4-865B
- SC732D4-903B
- SC732D2-500B
- SC732D2-865B
- SC732D2-903B
- SC732I-500B
- SC732i-865B
- SC731D-300B
- SC842i-500B
- SC842XTQ-R606B
Marketing Information: Q170/H110 chipset / Socket H4 Boards
Supermicro's single processor Socket H4 designs feature the Intel® Q170/H110 embedded chipset which support the Intel® 7th/6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0, PCI-E 3.0 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, VGA and DVI ports. Designed with performance, reliability, manageability and long life in mind Supermicro's single processor motherboards are the perfect solution for ATM, Kiosk, NVR/DVR Surveillance, Medical, Storage or Server appliance and many other embedded applications.
Chipset Manufacturer: Intel
Chipset Model: H110
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i7,Core i3,Core i5,Celeron,Pentium
Number of Memory Slots: 2
Memory Form Factor: UDIMM,DIMM
Maximum Memory Supported: 32 GB
Memory Speed Supported: 1866 MHz,2133 MHz,1600 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Graphics Controller Model: HD Graphics
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.0 Ports: 2
Form Factor: Micro ATX
Width: 9.60" (243.84 mm)
Depth: 9.60" (243.84 mm)
Compatibility: Supermicro SuperChassis:
2U
- Compatible Intel Core i5 processor provides you with the solid performance to watch videos and play games, while its adaptability makes you more productive
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX desktop motherboard
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X11SSQ-L-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | X11SSQ-L |
| Product Name | X11SSQ-L Desktop Motherboard |
| Packaged Quantity | 1 |
| Package Type | Retail |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H110 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i7,Core i3,Core i5,Celeron,Pentium |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | UDIMM,DIMM |
| Maximum Memory Supported | 32 GB |
| Memory Speed Supported | 1866 MHz,2133 MHz,1600 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | HD Graphics |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| HDMI | Yes |
| DisplayPort | Yes |
| DVI | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 3.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) |
| Miscellaneous | |
| Compatibility | Supermicro SuperChassis: 2U
|
[/custom-specifications]
[custom-options]
| Product | Supermicro SATA Cable - 2 ft SATA Data Transfer Cable - First End: 1 x Serial ATA - Second End: 1 x SATA - Red |
| SKU | CBL-0044L |
| Sale Price | $8.46 |
[/custom-options]
