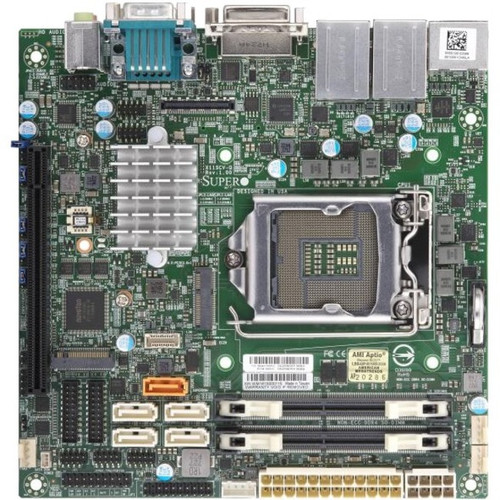

Supermicro Mini ITX Desktop Motherboard Intel Chipset Socket LGA-1151 32 GB DDR4 SoDIMM Support Maximum SDRAM RAM MBD-X11SCV-Q-B
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Marketing Information:
8th Generation Core™ Processor Based Motherboards
B360/Q370/H310 chipset / Socket H4 Boards
Supermicro's single processor Socket H4 designs feature the Intel® B360/Q370/H310 chipset which support the Intel® 8th Generation Core™ i7/i5/i3 processor family. With outstanding features that include up to 64GB non-ECC fast DDR4 DRAM in 4 DIMMS, USB 3.0/USB 3.1, PCI-E 3.0 M.2, and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and multiple displays. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of multi-tasking, heavy loading applications.
Chipset Manufacturer: Intel
Chipset Model: Q370
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i3,Celeron,Pentium,Core i5,Core i7
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 32 GB
Memory Speed Supported: 2666 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,5,10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.1 Ports: 4
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Number of SATA Interfaces: 5
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.1 Ports: 2
Form Factor: Mini ITX
Width: 6.70" (170.18 mm)
Depth: 6.70" (170.18 mm)
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X11SCV-Q-B |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | X11SCV-Q |
| Product Name | X11SCV-Q Desktop Motherboard |
| Packaged Quantity | 1 |
| Package Type | Bulk |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q370 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i3,Celeron,Pentium,Core i5,Core i7 |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | SoDIMM |
| Maximum Memory Supported | 32 GB |
| Memory Speed Supported | 2666 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.1 Ports | 4 |
| HDMI | Yes |
| DisplayPort | Yes |
| DVI | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 5 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 3.1 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.70" (170.18 mm) |
| Depth | 6.70" (170.18 mm) |
[/custom-specifications]
[custom-options]
| Product | Supermicro SATA Cable - 2 ft SATA Data Transfer Cable - First End: 1 x Serial ATA - Second End: 1 x SATA - Red |
| SKU | CBL-0044L |
| Sale Price | $8.46 |
| Product | Supermicro Standard I/O Shield for X11SCV-Q |
| SKU | MCP-260-00136-0N |
| Sale Price | $10.90 |
