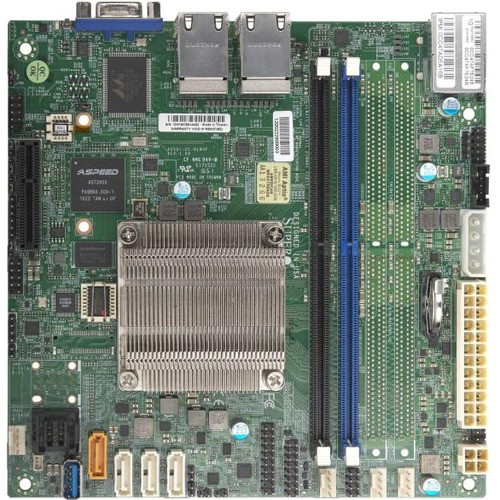

Supermicro Mini ITX Server Motherboard Intel Atom 128 GB DDR4 Maximum RAM Socket BGA-1310 Chipset SDRAM MBD-A2SDI-2C-HLN4F-O
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Marketing Information:
Atom® Motherboards
C3000 Series BOARDS (System-on-Chip)
Supermicro's motherboards based on Intel® Atom® processor C3000 series System-on-Chip (formerly Denverton) are well-suited for entry-level server platforms and embedded IPC market.
Chipset Manufacturer: Intel
Processor Socket: Socket BGA-1310
Integrated Processor Type: Atom
Integrated Processor Model: C3338
Integrated Processor Core: Dual-core (2 Core)
Number of Memory Slots: 2
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 128 GB
Memory Speed Supported: 1600 MHz,1866 MHz,2400 MHz,2133 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x4 Slots: 1
Total Number of USB Ports: 2
VGA: Yes
Number of SATA Interfaces: 8
Total Number of Onboard USB Ports: 3
Number of Onboard USB 3.0 Ports: 1
Form Factor: Mini ITX
Width: 6.70" (170.18 mm)
Depth: 6.70" (170.18 mm)
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-A2SDI-2C-HLN4F-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | A2SDI-2C-HLN4F |
| Product Name | A2SDI-2C-HLN4F Server Motherboard |
| Packaged Quantity | 1 |
| Package Type | Retail |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Socket | Socket BGA-1310 |
| Integrated Processor | |
| Integrated Processor Type | Atom |
| Integrated Processor Model | C3338 |
| Integrated Processor Core | Dual-core (2 Core) |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 1600 MHz,1866 MHz,2400 MHz,2133 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | AST2400 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Total Number of Onboard USB Ports | 3 |
| Number of Onboard USB 3.0 Ports | 1 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.70" (170.18 mm) |
| Depth | 6.70" (170.18 mm) |
[/custom-specifications]
