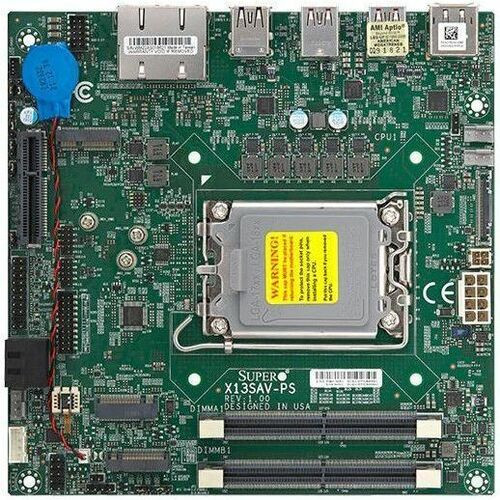

Supermicro Mini ITX Server Motherboard Intel Chipset Socket LGA-1700 Celeron And Core Series Compatible Processor MBD-X13SAV-PS-B
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- X13SAV-PS Server Motherboard
- 2 x 57.5CM SATA FLAT S-S PBF
- 1 x 4-pin ATX Power Signal Cable
- 1 x Standard I/O Shield
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen
Processor Supported: Celeron,Core i7,Core i5,Core i3
Number of Memory Slots: 2
Memory Form Factor: DIMM,UDIMM,SoDIMM
Maximum Memory Supported: 64 GB
Memory Speed Supported: 4800 MHz
Memory Technology: DDR5 SDRAM
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Total Number of Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 1
PCI Express Standard: PCI Express 4.0
Total Number of USB Ports: 6
Number of USB 3.2 Gen 2 Type-C Ports: 2
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 4
Form Factor: Mini ITX
Width: 6.70" (170.20 mm)
Depth: 6.70" (170.20 mm)
Package Contents:
Compatibility:
Supermicro SYS-E302-13AD
- 12th Gen Intel® Core™ processors , Intel® Celeron® processors, SoC, Single Socket LGA-1700 supported, CPU TDP supports Up to 65W TDP
- Up to 64GB Unbuffered non-ECC SODIMM, DDR5-4800MHz, in 2 SODIMM slots
- 1 PCIe 4.0 x4 slot
- 1 M.2 M-Key 2280 (PCIe 4.0 x4)
- 1 M.2 E-Key 2230 (PCIe 3.0 x1/USB2.0)
- 1 M.2 B-Key 3052 (PCIe 3.0 x2/USB3.0/USB2.0)
- Dual 2.5 Gigabit LAN with Intel® Ethernet i225LM LAN controller [AMT/vPro]
- 4 Independent Displays (1 DP ports, 1 HDMI port, 2 TYPE C support DP/USB3.0)
- Supports 12V DC power input
- Onboard TPM2.0
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X13SAV-PS-B |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | X13SAV-PS |
| Product Name | X13SAV-PS Server Motherboard |
| Package Type | Bulk |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 12th Gen |
| Processor Supported | Celeron,Core i7,Core i5,Core i3 |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM,UDIMM,SoDIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 4800 MHz |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| PCI Express Standard | PCI Express 4.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 2 Type-C Ports | 2 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 4 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.70" (170.20 mm) |
| Depth | 6.70" (170.20 mm) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Supermicro SYS-E302-13AD |
[/custom-specifications]
