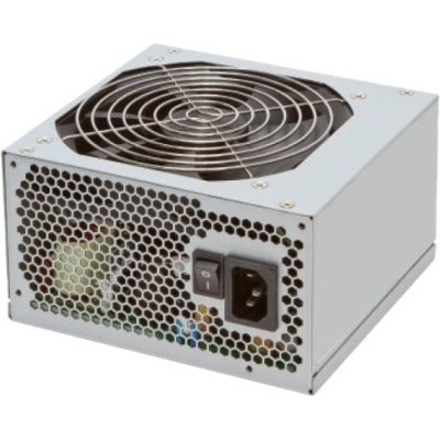

Supermicro Multi-Output ATX Power Supply For Mid Tower Systems With Multiple Voltage Rails Input AC DC V PWS-403-PQ
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Specification Compliance: ATX12V
Number of Fans: 1
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 2
Output Voltage: 3.3 V DC,5 V DC,12 V DC,-12 V DC
Output Voltage Detail: 3.3 V DC @ 24 A,5 V DC @ 22 A,12 V DC @ 18 A,-12 V DC @ 300 mA,5 V DC @ 3 A
Output Current: 24 A,22 A,18 A,300 mA,3 A
Output Power: 400 W
Form Factor: Mid Tower,ATX PS/2
Height: 3.39" (86 mm)
Width: 5.91" (150 mm)
Depth: 5.51" (140 mm)
Environmentally Friendly: Yes
Energy Efficiency Certification: 80 Plus Gold
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 1 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | PWS403PQ |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Name | 400W Multi-Output PS2/ATX Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V |
| Number of Fans | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 2 |
| Output Voltage | 3.3 V DC,5 V DC,12 V DC,-12 V DC |
| Output Voltage Detail | 3.3 V DC @ 24 A,5 V DC @ 22 A,12 V DC @ 18 A,-12 V DC @ 300 mA,5 V DC @ 3 A |
| Output Current | 24 A,22 A,18 A,300 mA,3 A |
| Output Power | 400 W |
| Physical Characteristics | |
| Form Factor | Mid Tower,ATX PS/2 |
| Height | 3.39" (86 mm) |
| Width | 5.91" (150 mm) |
| Depth | 5.51" (140 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Gold |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
