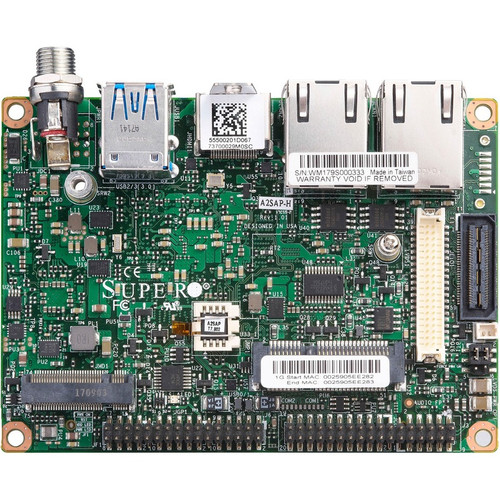

Supermicro Pico ITX Server Motherboard Intel Chipset Socket BGA-1296 Atom 8 GB DDR3L Maximum RAM SDRAM MBD-A2SAP-H-B
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- A2SAP-H Server Motherboard
- 1 x Screw Bag
- SYS-E50-9AP
- SYS-E50-9AP-Wifi
- SYS-E50-9AP-L
- SYS-E50-9AP-N5
Marketing Information:
E3900 Series BOARDS (System-on-Chip)
Supermicro's motherboards based on Intel® Atom® processor E3900 series System-on-Chip are well-suited for entry-level server platforms and embedded IPC market.
Chipset Manufacturer: Intel
Processor Socket: Socket BGA-1296
Integrated Processor Type: Atom
Integrated Processor Model: x5-E3940
Integrated Processor Core: Quad-core (4 Core)
Number of Memory Slots: 1
Memory Form Factor: SoDIMM
Maximum Memory Supported: 8 GB
Memory Speed Supported: 1866 MHz
Memory Technology: DDR3L SDRAM
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Model: HD Graphics
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 2
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
HDMI: Yes
Number of Network (RJ-45) Ports: 2
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 2
Number of Onboard USB 2.0 Ports: 2
Form Factor: Pico ITX
Width: 4" (101.60 mm)
Depth: 2.83" (71.88 mm)
Package Contents:
Compatibility:
Supermicro Servers:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 1 Year
- DDR3L SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Pico ITX server motherboard
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-A2SAP-H-B |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | A2SAP-H |
| Product Name | A2SAP-H Server Motherboard |
| Packaged Quantity | 1 |
| Package Type | Bulk |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Socket | Socket BGA-1296 |
| Integrated Processor | |
| Integrated Processor Type | Atom |
| Integrated Processor Model | x5-E3940 |
| Integrated Processor Core | Quad-core (4 Core) |
| Memory | |
| Number of Memory Slots | 1 |
| Memory Form Factor | SoDIMM |
| Maximum Memory Supported | 8 GB |
| Memory Speed Supported | 1866 MHz |
| Memory Technology | DDR3L SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | HD Graphics |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 2 |
| Number of Onboard USB 2.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Pico ITX |
| Width | 4" (101.60 mm) |
| Depth | 2.83" (71.88 mm) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Supermicro Servers:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
