Supermicro SBI-4129P-T3N SuperBlade Server Barebone System - Blade - Dual LGA-3647 - Intel C622 - 2TB DDR4 - 10GbE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SuperBlade barebone provides a robust foundation for building a high‑availability server node. The memory subsystem supports up to 2 TB of DDR4 SDRAM across 16 slots, operating at DDR4‑2666/PC4‑21300 speeds to feed demanding workloads with low latency and power efficiency.
Storage connectivity is handled by a Serial ATA/600 controller with RAID support, ensuring data integrity and performance for attached drives. The system includes three expansion bays for flexible storage or I/O add‑ons, and 10 Gigabit Ethernet delivers high‑bandwidth network throughput essential for modern data‑center interconnect.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SBI‑4129P‑T3N excels in environments where compute density, reliability, and future‑proof connectivity are non‑negotiable. Its blade architecture reduces cabling complexity and physical footprint while enabling seamless scaling within a SuperBlade chassis.
High‑Density Compute
Dual processor support and up to 2 TB of memory allow this blade to handle intensive virtualization, database, and technical computing tasks without compromising on rack space.
- Vertical blade clustering
- Optimized airflow design
- Modular serviceability
Enterprise‑Grade I/O
10 Gigabit Ethernet ensures low‑latency network performance for storage, virtualization, and high‑speed data transfers, while SATA/600 with RAID provides dependable storage expansion.
- 10 GbE for modern networks
- RAID‑ready storage controller
- Three expansion bays
Deployment / Use Cases
The Supermicro SuperBlade barebone is tailored for data‑center environments that require scalable, high‑performance compute nodes. Its compact blade form factor and support for dual processors make it ideal for building out virtualized infrastructure, private clouds, and high‑performance computing clusters.
Typical deployments include virtualization hosts running VMware vSphere or Microsoft Hyper‑V, database servers for OLTP or analytics, and compute nodes in technical or scientific clusters. The system’s 10 GbE connectivity suits converged or hyper‑converged infrastructure where network bandwidth is critical to storage and virtual‑machine mobility.
Virtualization Host
Deploy as a VMware ESXi or Hyper‑V host, leveraging dual processors and large memory capacity to run multiple virtual machines with high consolidation ratios.
High‑Performance Computing
Use in technical computing clusters for simulations, rendering, or data analysis, where parallel processing and fast memory are essential.
Physical Profile
The blade measures 6.50 inches high, 1.75 inches wide, and 23.50 inches deep, with a weight of approximately 9.50 pounds. Its black finish and streamlined design integrate cleanly into a SuperBlade chassis. The compact dimensions allow up to ten blades to populate a single 4U chassis, dramatically increasing compute density per rack unit.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.50" (165.10 mm), 1.75" (44.45 mm), 23.50" (596.90 mm), 9.50 lb (4309.13 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 1.75" (44.45 mm)
- Depth
- 23.50" (596.90 mm)
- Height
- 6.50" (165.10 mm)
- Weight
- 9.50 lb (4309.13 g)
What's in the Box
The barebone system ships with all necessary components to build a complete blade server node.
Highlights

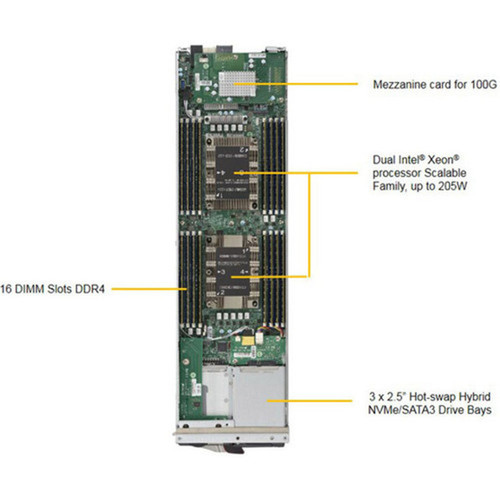

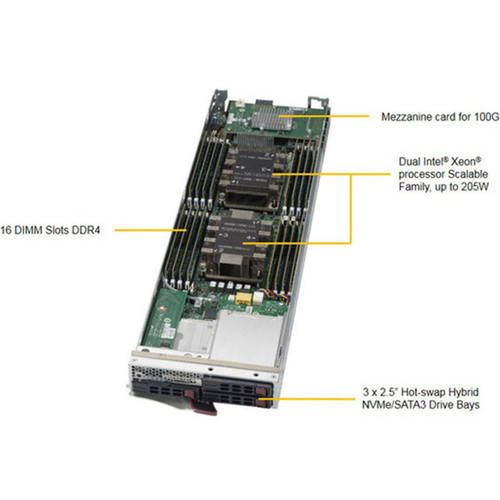

- Dual Socket P LGA‑3647 supports two Intel Xeon processors for high‑performance compute
- Up to 2 TB of DDR4‑2666 memory across 16 slots for large‑scale workloads
- Intel C622 chipset provides enterprise‑grade platform stability and I/O
- 10 Gigabit Ethernet ensures high‑bandwidth, low‑latency network connectivity
- Serial ATA/600 controller with RAID support for reliable storage expansion
- Blade form factor enables high‑density deployment in SuperBlade chassis
- Three expansion bays allow flexible storage or add‑in card configuration
- RoHS‑compliant and environmentally friendly construction
- Includes motherboard, chassis, drive trays, cables, and cooling components
- Backed by a 1‑year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SBI-4129P-T3N |
| Brand Name | Supermicro |
| Product Line | SuperBlade |
| Product Model | SBI-4129P-T3N |
| Product Name | Processor Blade SBI-4129P-T3N (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket P LGA-3647 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C622 |
| Memory | |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 16 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 3 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Blade |
| Height | 6.50" (165.10 mm) |
| Width | 1.75" (44.45 mm) |
| Depth | 23.50" (596.90 mm) |
| Weight (Approximate) | 9.50 lb (4309.13 g) |
| Miscellaneous | |
| Package Contents | Processor Blade SBI-4129P-T3N (Black) 1 x Super B11DPT-P Motherboard 1 x 4U 10 SuperBlade Processor Blade chassis 1 x Single SATA3 hard drive supporting expansion card for B11DPT 1 x Front Control Board with KVM connector for B11DPT, RoHS 1 x SATA,INT,ROUND,ST-RA,55CM,30AWG 2 x Black 2.5" NVMe Hard Drive Tray, orange button 1 x Air shroud set for 4U 10-Blade |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What processors are compatible with this SuperBlade barebone?
The SBI‑4129P‑T3N supports Intel Xeon processors using the Socket P LGA‑3647 interface. The system accommodates two CPUs, allowing for dual‑socket configurations that deliver high core counts and parallel processing capability for demanding enterprise and data‑center applications.
How much memory can this blade support, and what type is required?
This barebone supports up to 2 terabytes of DDR4 SDRAM across 16 memory slots. The memory standard is DDR4‑2666/PC4‑21300. This large capacity and high speed enable the blade to handle memory‑intensive workloads such as virtualization, in‑memory databases, and large‑scale data processing.
What storage connectivity and expansion options are available?
The system includes a Serial ATA/600 controller with RAID support, providing reliable and fast storage connectivity for SATA drives. It also features three total expansion bays, which can be used for 2.5‑inch drives, including NVMe SSDs using the included drive trays, allowing for flexible storage configuration and performance tuning.
What networking capabilities does this blade offer?
The SBI‑4129P‑T3N is equipped with 10 Gigabit Ethernet, delivering high‑bandwidth network performance essential for modern data‑center environments. This connectivity supports fast data transfers, low‑latency communication between nodes, and efficient handling of storage and virtual‑machine traffic in converged infrastructure.
How is this blade deployed within a data‑center rack?
This blade is designed to be mounted vertically in a Supermicro 4U 10‑Blade chassis. Up to ten blades can be installed in a single chassis, maximizing compute density per rack unit. The blade form factor reduces cabling complexity, simplifies maintenance, and optimizes airflow for efficient cooling in high‑density deployments.
What is included in the package with this barebone system?
The package contains the Processor Blade SBI‑4129P‑T3N in black, a Super B11DPT‑P motherboard, a 4U 10 SuperBlade Processor Blade chassis, a single SATA3 hard‑drive supporting expansion card, a front control board with KVM connector, a SATA internal cable, two black 2.5‑inch NVMe hard‑drive trays, and an air‑shroud set. These components provide everything needed to assemble a complete blade server node.
